PowerPlant DE-CH03 Operating Instructions

24V DE-CH03 Charger Operating Instructions (replaces DW0246)
This DE-CH03 Charger is a reliable solution for charging the original DW0242 as well as certain generics (24V NICD and
NIMH up to 3.3Ah) via a wall outlet. This charger uses built-in safety features to protect the battery during charging (and
after) from overheating, overcharging, improper voltage, and short-circuiting.
90% of battery capacity
your battery sooner.
WARNINGS: Only charge original DW0242 (or specified generic) batteries with this charger. Do not charge any other
batteries with this charger (this charger does not work with Stryker's SMRT battery). Do not use the charger in a high
temperature environment (see environment limits at bottom of page). Keep the charger away from rain, water, and any
other liquid. Do not short circuit the battery. Remove the battery from the charger and unplug the adapter from the wall
when not in use. DISCLAIMER: Our guarantee/warranty does not cover any damage caused by improper use.
1. Assemble charger (if not already) by plugging the wall cord's small black plastic end into the charger.
2. Plug the wall cord into the wall outlet.
3. Slide the DW0242 battery into the charger.
IMPORTANT: If the battery is too warm, the light will turn to a slow red blinking light (temperature warning). If the
battery is more than 112˚ degrees F, the light will turn to a fast red blinking (defective battery warning). In either
case (slow/fast red blinking), please remove the battery from the charger and let the battery cool for 10-30
minutes before charging again. Fast red blinking occurring on a cool battery means a defective battery or short
circuit was detected.
4. The light on the charger will turn solid green when done.
minutes to charge from empty.
5. Charging ceases automatically when fully charged
continue nor trickle charge after it has reached full). To reinitiate the charging process, remove the battery for a
few seconds and then slide it back onto the charger (if battery or charger are warm, be sure to allow time for both
to cool before reinitiating the charging process).
charging is complete. Remove the battery from the charger and unplug the cord from the wall when the
charger is not in use.
during storage.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Input Voltage: 100-240VAC, 50-60HZ
Standby power consumption: <1W
Working Environment Limits (During Use): Temperature 0˚ to 40˚ degrees C, 32˚ to 104˚ F. Humidity less than 85%. Air Pressure 86Kpa-106Kpa
Storage/Delivery Environment Limits: Temperature -20˚ to 65˚ degrees (C), -4˚ to 149˚ (F). Humidity less than 90%. Air Pressure 70Kpa-106Kpa
to protect the battery cells from overcharging. Overcharged battery cells force you to replace

CHARGING INSTRUCTIONS

The light on the charger will blink slowly green.
Batteries that have been used even once should be fully charged at least every 2 months
Max Input Current: 1.5A
Net Weight: 1lb and 3.2oz
The light on the charger will turn solid red to indicate charging.
A 3.3Ah NIMH 24V battery can take up to 80
(solid green
IMPORTANT: DO NOT leave the battery on the charger after
Max Input Power: 97W
This charger considers "full charge" at
light) or at a max of 120 minutes (does not

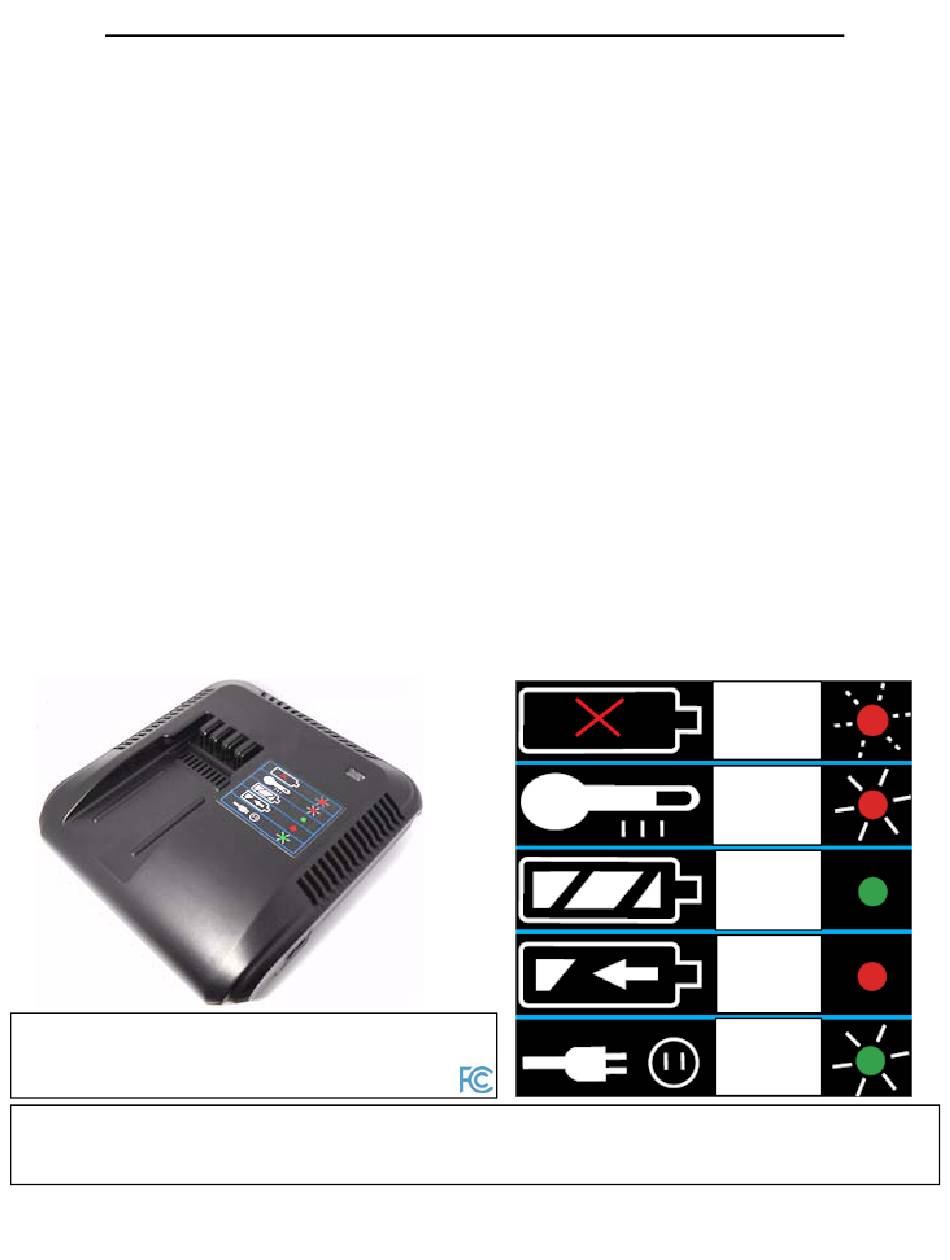

Fast blinking
red light =
defective
battery
Slow blinking
red light =
temperature
warning
Solid green
light =
battery fully
charged
Solid red
light =
battery
charging
Slow
blinking
green light =
no battery
Charging Voltage: 33V Charging Current: 2.2A
