Summary of Contents for Sterilight SQ-PA

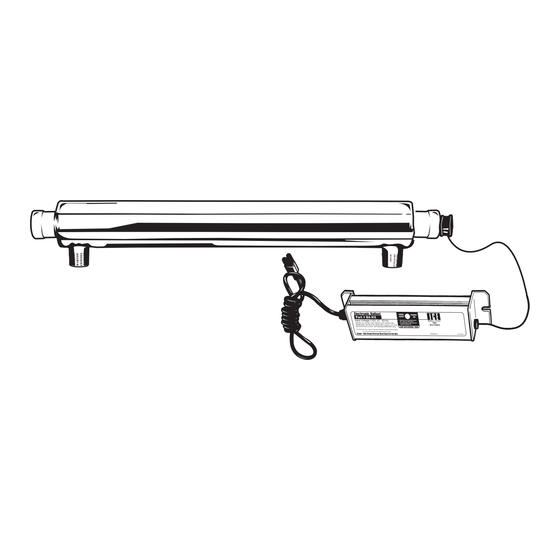

- Page 3 SQ-PA, S1Q-PA, S2Q-PA, S5Q-PQ, S8Q-PA, S12Q-PA Installation Instructions & Owner’s Manual Manufactured in Canada by: 425 Clair Road West, P.O. Box 1719 Guelph, ON N1H 7X4 Canada t. 519.763.1032 • f. 519.763.5069 EPA# 57987-CN-001 e. water@r-can.com revised January 2003 i. www.r-can.com...
-
Page 4: Safety Instructions
AFETY NSTRUCTIONS WARNING - to guard against injury, basic safety precautions should be observed, including the following: 1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. 2. DANGER - To avoid possible electric shock, special care should be taken since water is present near electrical equipment. Unless a situation is encountered that is explicitly addressed by the provided maintenance and troubleshooting sections, do not attempt repairs yourself, refer to an authorized service facility. - Page 5 “NEW TURES” “NEW TURES” The Newly Revised ICE Ballast you have just purchased is an upgraded version of the original ICE Ballast. This new ICE Ballast features an audible lamp replacement reminder. After one year of lamp operation an alarm will sound reminding you to replace your UV lamp in order to ensure optimum UV disinfection levels.
-
Page 6: Water Chemistry
ATER HEMISTRY Water quality is extremely important for the optimum performance of your UV system. The following levels are recommended for installation: • Iron: < 0.3 ppm (0.3 mg/L) • Hardness*: < 7 gpg (120 mg/L) • Turbidity: < 1 NTU •... -
Page 7: Installing Your Uv Disinfection System
UV D NSTALLING ISINFECTION YSTEM • CAUTION, electronic ballast must be connected to a grounded receptacle and the lamp connector ground wire connected to the stainless steel reactor chamber. • The disinfection system is designed to be mounted horizontally or vertically at the point-of-use or point-of-entry depending on the specific flow rate of the unit. - Page 8 3. Various connection methods can be used to connect the water source to the disinfection system, however union type connectors are recommended. The use of a flow restrictor device is strongly recommended when installing your disinfection system in order that the manufacturers recommended flow rate not be exceeded.
- Page 9 & M PERATING AINTENANCE NSTRUCTIONS NOTE: PRIOR TO PERFORMING ANY WORK ON THE DISINFECTION SYSTEM, ALWAYS DISCONNECT THE POWER SUPPLY FIRST. 1. Regularly inspect your disinfection system to ensure that the UV lamp is operating. 2. Replace the UV lamp with a new lamp after one year of continuous use to ensure a high bacteria and virus kill rate.
-
Page 10: Manufacturer's Warranty
’ ANUFACTURER ARRANTY Manufacturer warrants the ultraviolet disinfection system hardware and electrical systems to be free from defects in material and workmanship for a period of five (5) years from the date of purchase by the original owner (consumer) on a pro-rated basis. Manufacturer warrants the ultraviolet lamps and to be free from defects in material and workmanship for a period of one (1) year and the reactor chamber for a period of seven (7) years. - Page 11 ARTS REAKDOWN LAMPS S212RL....FOR SQ-PA UNIT S287RL....FOR S1Q-PA UNIT S330RL....FOR S2Q-PA UNIT S463RL....FOR S5Q-PA UNIT S810RL....FOR S8Q-PA UNIT S36RL .....FOR S12Q-PA UNIT QUARTZ SLEEVES QS-212....FOR SQ-PA UNIT QS-001....FOR S1Q-PA UNIT QS-330....FOR S2Q-PA UNIT QS-463....FOR S5Q-PA UNIT QS-810....FOR S8Q-PA UNIT QS-012....FOR S12Q-PA UNIT BALLASTS (IEC POWER CORDS SOLD SEPARATELY) BA-ICE-1F .....FOR ALL (100-130V./50-60HZ.) UNITS...
-
Page 12: Specifications
PECIFICATIONS SPECIFICATIONS SQ-PA S1Q-PA S2Q-PA S5Q-PA S8Q-PA S12Q-PA 2 L/min 4 L/min 7.5 L/min 19 L/min 30 L/min 45 L/min Flow Rate (1/2 gpm) (1 gpm) (2 gpm) (5 gpm) (8 gpm) (12 gpm) (0.12m /Hr.) (0.24m /Hr.) (0.45m /Hr.) (1.14m...
