National Instruments RMX-10051 User Manual page 7

DC 1 DC 1
+ – +
Exhaust Air
19.30 mm
(0.76 in.)
63.50 mm
(2.50 in.)
DC outputs and DC Inhibit Bus are not available on the
Note
RMX-10050 (785342-01).

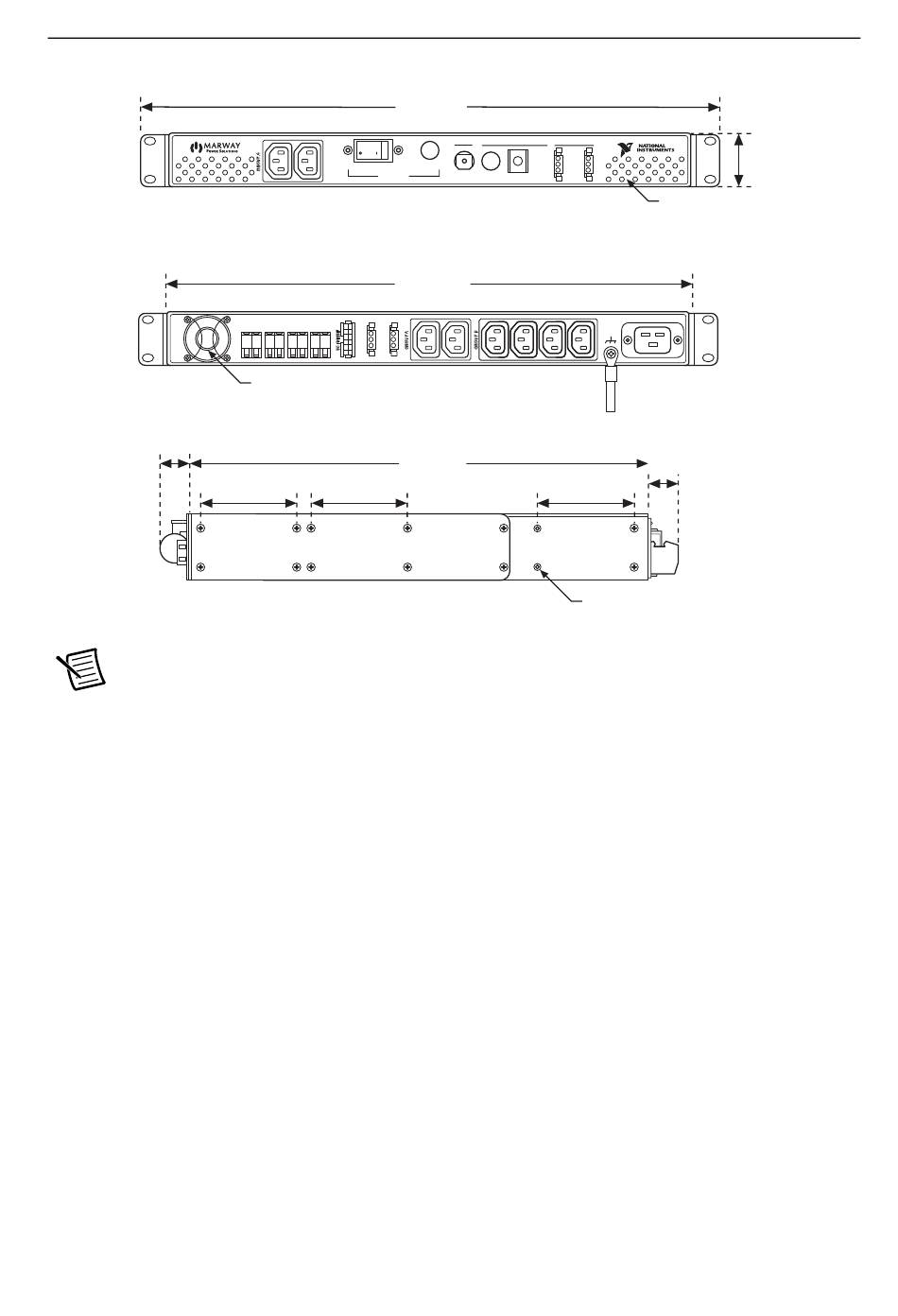

Figure 1. RMX-10050 Dimensions
Front View
482.60 mm
(19.00 in.)
Off Off On On
Main Breaker Main Breaker On On
Main Power Main Power
Rear View
438.912 mm
(17.28 in.)
DC 1 DC 1 DC 1 DC 1 DC 1 DC 1
– + – + –
Side View
303.02 mm
(11.93 in.)
63.50 mm
(2.50 in.)
RMX-10050/10051 User Guide | © National Instruments | 7
Control Control Switched Outlets Switched Outlets Switched Outlets Switched Outlets Outlet Control Bus Outlet Control Bus
Local/On Local/On
Enable Enable
A Off Off
Disable Disable
Remote Remote
Return Return
Breaker Breaker Powered Powered Control Control
63.50 mm
(2.50 in.)
#4–4 X 0.20 DP Holes
2X Both Sides
44.196 mm
(1.74 in.)
Black #27038
All Outside Surfaces
20.066 mm
(0.79 in.)
