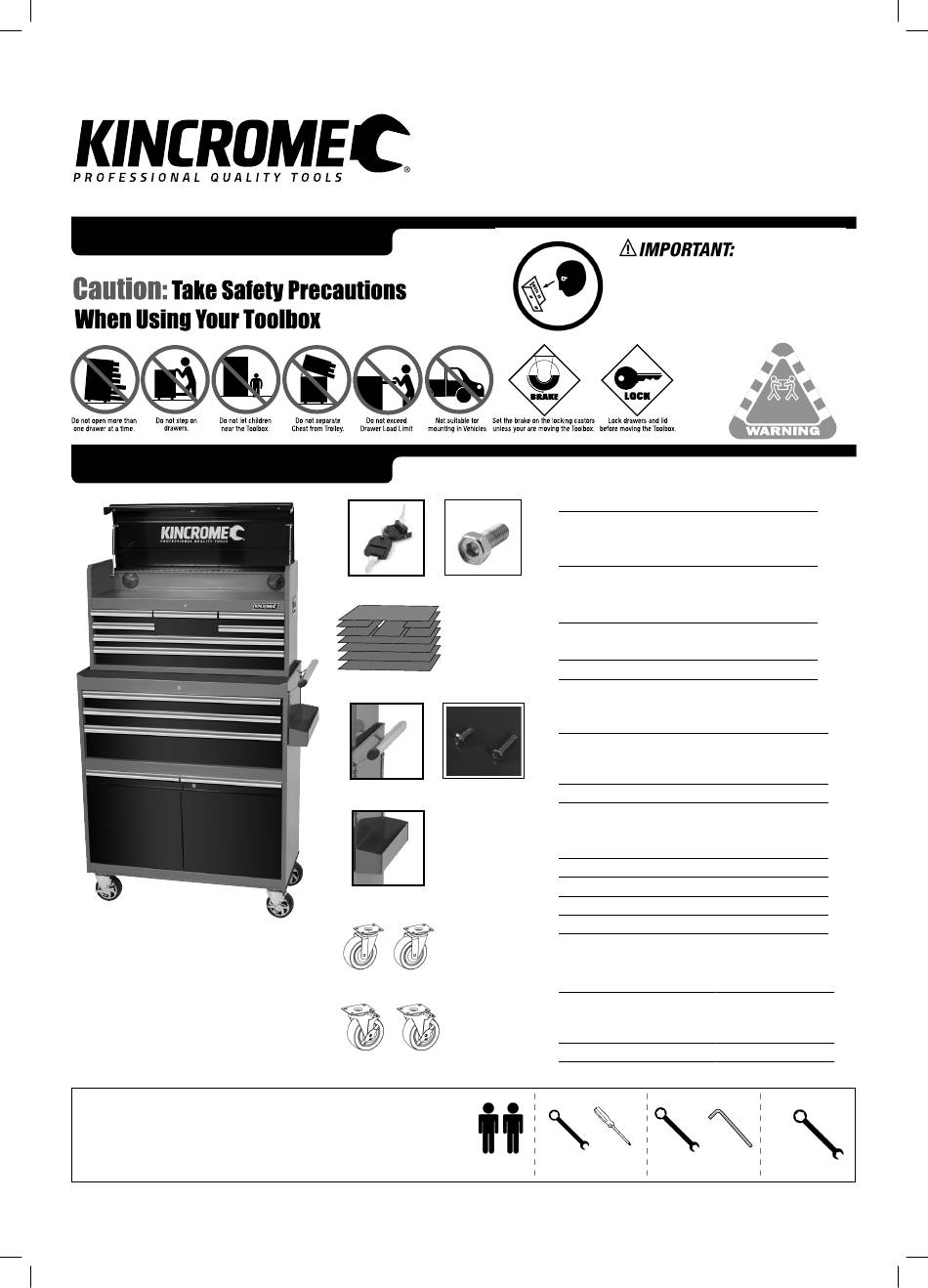

kincrome K7561 Assembly Instructions

Operation Manual
Parts List
TOOLS & ASSISTANCE NEEDED
K7561 manual.indd 1
Chest & Trolley Combo
10 Drawer Wide Body
16 x 12mm Bolts
Keys x 6
for Castors
12 x EVA Liners
Handle x 1 Screws;
5 x Short,
5 x Long
(Screwed into
Removeable Panel)
Side Parts Tray x 1
Non-Locking Castors x 2
Locking Castors x 2
2 People Lift
1
THIS OPERATING MANUAL CONTAINS IMPORTANT
SAFETY INFORMATION. READ CAREFULLY AND
UNDERSTAND ALL INFORMATION BEFORE
OPERATING STORAGE CABINET.
SAVE THIS MANUAL FOR FUTURE USE
TOOL CHEST SPECIFICATIONS
Width Depth
Overall 902mm 315mm
Top Section 860mm 310mm
Small Drawers
Shallow 260mm 260mm
Deep 260mm 260mm
Large Drawers
Shallow 835mm 260mm
Deep 835mm 260mm
Weight 30.1kg
TOOL TROLLEY SPECIFICATIONS
Width
Overall 1020mm 460mm 1107mm
Overall (w/o 1020mm 460mm 955mm
Castors)
Top Section 930mm
Drawers
Shallow 860mm
Deep 860mm
Cabinet 935mm
Side Parts Tray 80mm
Castors 125 x 50mm (5 x 2") 2 x Locking
Weight 50.2kg
OVERALL SPECIFICATIONS
Width
Overall 1020mm
Overall (w/o 1020mm
Castors)
Weight 80.3kg
Removing Chest Castor
or
+
12mm Spanner + 12mm Spanner or
Phillips Screwdriver 5mm Hex Key
K7561
Bunnings Weight Icons (2676) 30/3/04 10:11 AM Page 3
40kg+
This product requires a two person lift
- use proper lifting techniques
Height
475mm
145mm
38mm
92mm
38mm
63mm
Depth Height
455mm 17mm
395mm 55mm
395mm 135mm
438mm 555mm
440mm 75mm
Depth Height
460mm 1570mm
460mm 1415mm
Handle
10mm Spanner
