Summary of Contents for Essentials UBGHFFJ60SS

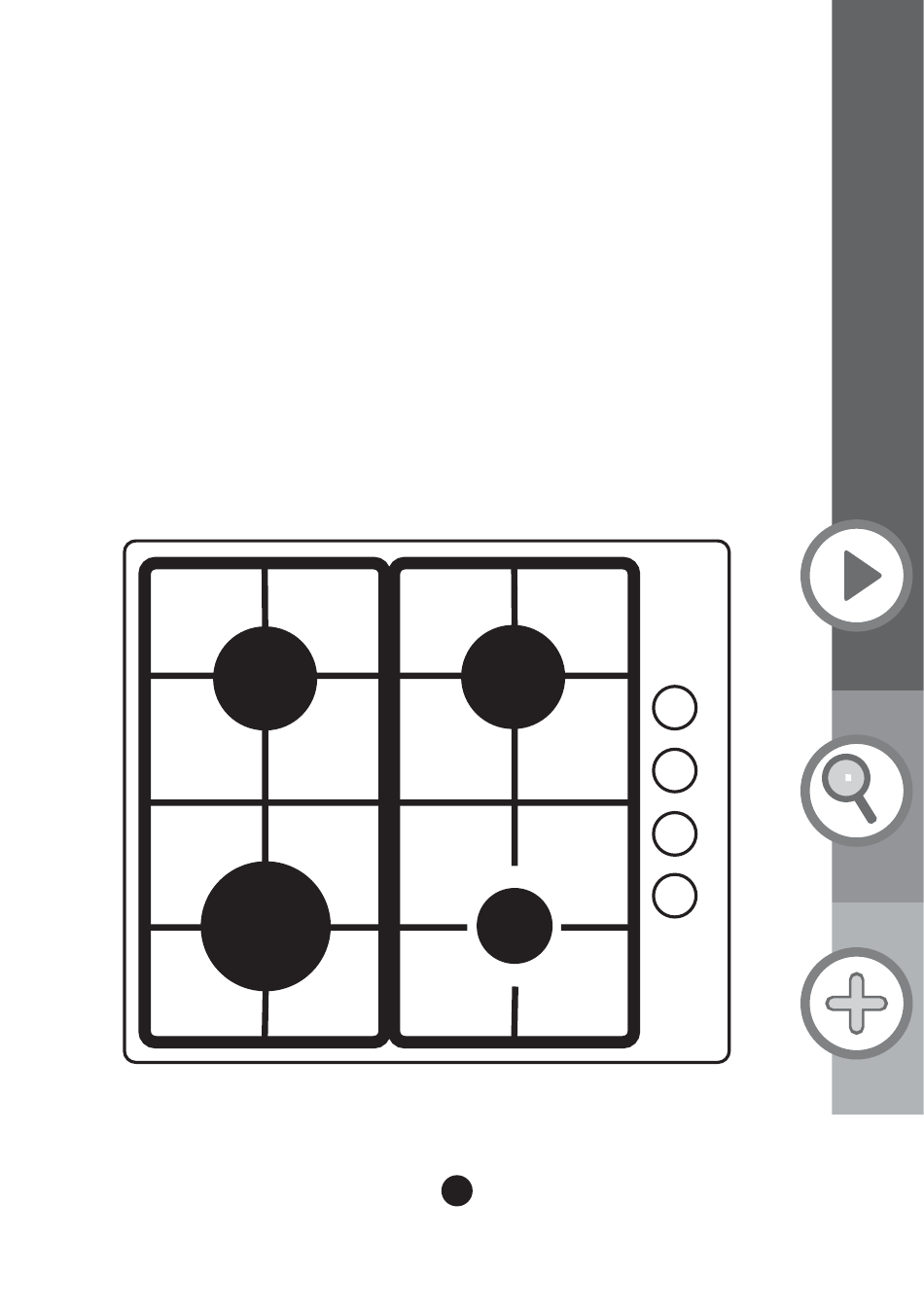

- Page 1 UBGHFFJ60SS UBGHDFFJ60SS...
- Page 2 04 x 1 01 x 1 05 x 1 set 08 x 4 06 x 1 09 x 4 07 x 4 10 x 1...
- Page 3 UBGHFFJ60SS UBGHDFFJ60SS Built-in Gas Hob Installation...
-
Page 4: Table Of Contents
Let's get started... started... Getting Before you start Safety more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Appendix Installation... -
Page 5: Getting Started
Getting Started... Before you start Safety... - Page 6 Before you start Before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. please keep this instruction booklet for future reference and pass it on to any future owners.
- Page 7 Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a qualified Gas Safe registered engineer. • This appliance must be installed correctly by a manufacturer’s instructions.
- Page 8 Safety We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully. A steam cleaner is not to be used. The appliance is not intended to be operated by means of external timer or separated remote-control system.
-
Page 9: In More Detail
more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information... - Page 10 Operation Product functions • 4 x Burners: Four zones of cooking. • Flame safety device (FSD): Stops the gas supply to the gas hob when the fame goes out. • auto - ignition • LPG conversion kit supplied. Control elements Reference Description Qty Reference...
- Page 11 Operation Operation Use of the burners Caution • If there is no electric current you can light the burners with piezo electric spark gas ignitor. • The burners can only be lit with safety thermocouples when the knob is on MAXIMUM. ( .
- Page 12 Operation NOTE: > The use of a gas cooking appliance produces heat and humidity in the place where it is installed. Therefore, you need to ensure the place is well ventilated, keeping the > natural ventilation openings clear and using a mechanical ventilation device/ flue or electric fan.
-
Page 13: Care And Maintenance
Care and maintenance Appliance cleanliness Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, FUSE contact customer services. Caution • Use soapy water and a cloth for cleaning. Never use abrasive powders. •... - Page 14 Care and maintenance Replacement of parts Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, FUSE contact customer services.
-
Page 15: Troubleshooting
Troubleshooting Troubleshooting The following circumstances may not be a problem. Do not contact the If your appliance is still not functioning properly after making the above checks, please contact customer services. 1. C heck that the mains supply has not been switched off. 2. - Page 16 technical and legal information Technical data Power Supply V/Hz 220-240 Vac 50Hz G20 / G30 / G31 Gas Pressure mbar 110x500x580 External Dimensions HxDxW mm NG 12H 20 LPG I3 28 30 37 ( + ( Injector Dia. (mm) and kW Injector Dia.
-
Page 17: Technical And Legal Information
Technical and legal information All installation work must be carried out by a Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. Warning: THIS APPLIANCE MUST BE EARTHED. Mains Supply could be connected to the Mains Voltage by Direct Connection DOUBLE POLE SWITCHED... - Page 18 Technical and legal information Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. For roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation. Electrical Connection Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the appliance.
- Page 19 Technical and legal information Installation Guidelines Gas Supply Requirements (UK and ROI) This installation must comply with the Gas Safety Regulations 1984. The connection to the gas supply must comply with all current regulations in force. We are not legally able to offer advice on the installation of gas appliances to non Gas Safe registered personnel.
- Page 20 Technical and legal information Gas connection [09] [09] x1 Changing the nozzles Caution The hob installation and burner changes must be carried out by a competent person. ie a Gas Safe NOTE: The LPG nozzles are provided in a separate bag marked “LPG” and if they are changed and the natural gas jets retained then the label should be changed to “NATURAL”.
- Page 21 Technical and legal information Regulation of burners Regulation of burners Caution The regulation described can only be carried out with burners that use methane gas and city gas (where available), whereas the screw must be fully tightened in a clockwise direction on burners using liquid gas. Regulation of the “mINImUm”...
- Page 22 Technical and legal information The Manufacturer has a policy of continuous product improvement, it necessary without prior warning.
-
Page 23: Appendix
Appendix... -
Page 24: Installation
Installation Clearance Warning Good ventilation is required around the appliance for easier dissipation of heat and low power consumption. The gap between the hob and any cupboard above it should be at least 750mm. 750mm 750mm At least 300mm 60mm At least 300mm... - Page 25 Installation [11] x 1 Cut out worktop to the template dimensions with suitable equipment and seal the cut edge with appropriate sealant. [06] x 1 [06] Stretch out the supplied seal along the underside edge of the hob, ensuring the ends overlap.
- Page 26 Installation 30mm 40mm 07 x 4 10 x 4 Note The images above are a guide only Note For electrical connection see Technical and legal information section...
- Page 27 Notes...
- Page 28 0845 Pin code 0845CQ0016...
