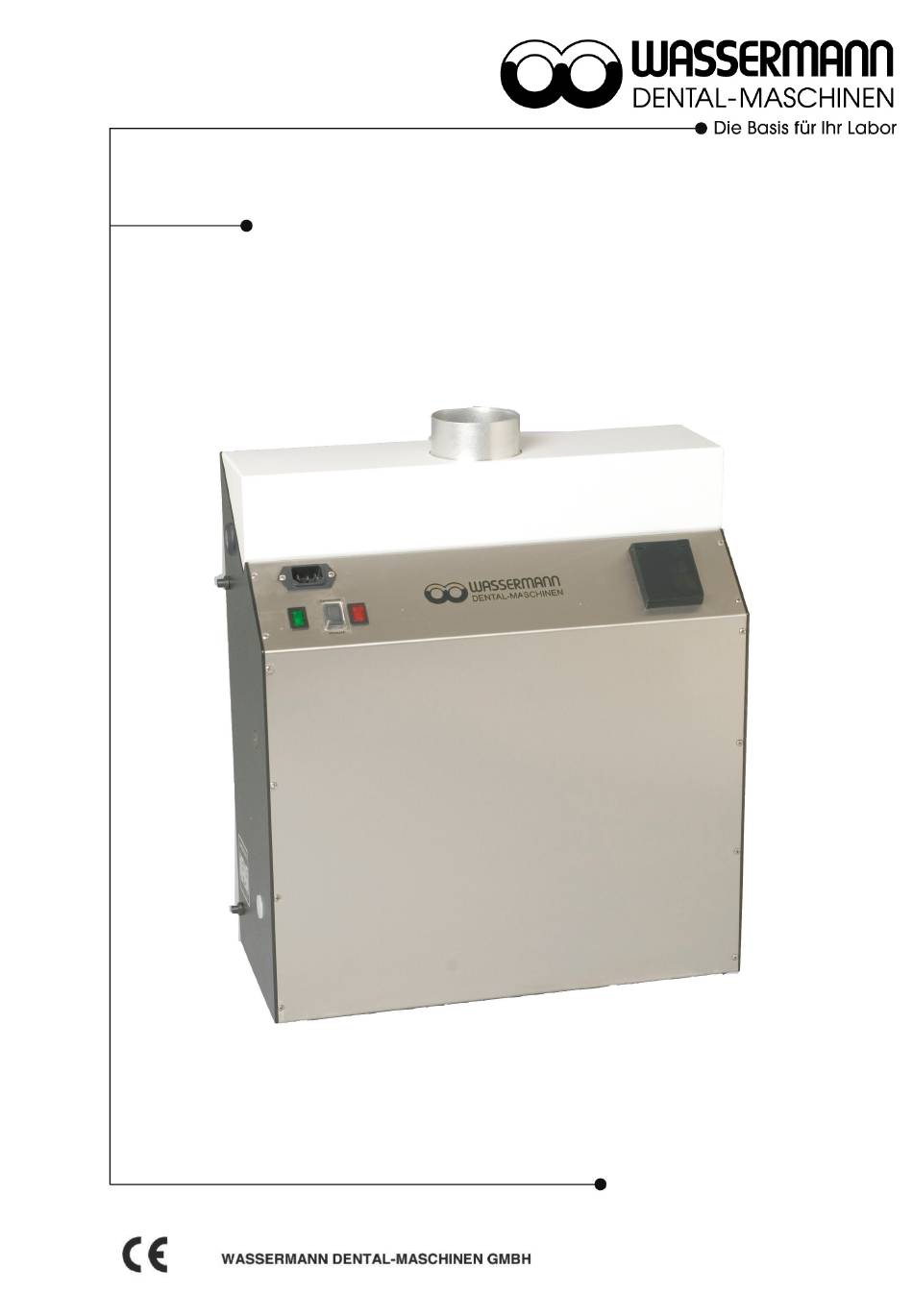

- Page 1 Universal suction unit SG-1/2 D USER MANUAL...
- Page 2 Keep this user manual in a safe place where it can be referred to as required at any time. Company address: Wassermann Dental-Maschinen GmbH Rudorffweg 15-17 D-21031 Hamburg, Germany Phone. : +49 (0)40 / 730 926 – 0 Fax.: +49 (0)40 / 730 37 24 E-mail: info@wassermann-dental.com...
-
Page 3: Table Of Contents
Contents 1 Features..........................4 2 Safety guidelines........................4 2.1 Safety symbols used in this manual................4 2.2 Safety guidelines......................4 2.3 Responsibility for operation or damage...............5 3 Application..........................5 4 Before starting........................5 4.1 Transport........................5 4.2 Installation........................6 4.3 Storage........................6 5 Installation / Start-up......................7 6 Operation...........................7 6.1 General operating instructions..................7 7 Troubleshooting........................7 8 Care and maintenance.......................8 8.1 Cleaning........................8... -
Page 4: Features
Features The SG-1/2 D has an automatic level monitor, which cuts the motor when the filter is full, while simultaneously turning on a red warning light. If this happens, you will need to change the filter. Turning the unit off cancels the warning light. The filter level is pre-set at the factory. -
Page 5: Responsibility For Operation Or Damage
Wassermann Dental-Maschinen GmbH are not extended by these instructions. Application The SG-1/2 D suction unit is a technically proven and solid piece of equipment made entirely of metal. It is intended primarily for use with the Cemat-NT range as it has an additional socket for that purpose. -
Page 6: Installation
Installation Open the box, remove the packing materials, and carefully lift out the device and accessories. Check the included accessories. The device has to stand horizontally on a steady and even surface. Install the device in a place where it will not block the working area and the functionality (take the dimensions into account). -
Page 7: Installation / Start-Up
Installation / Start-up Before starting the unit, connect up the following: 1. Connect the extractor unit to the mains. (Insert the power plug into the socket, making sure that the mains and the unit operate on the same voltage) 2. Finishing tools can be plugged in to the socket at the side. 3. -
Page 8: Care And Maintenance
Care and maintenance Cleaning Disconnect the power plug before starting any maintenance work. The identification plate has always to be kept in easily legible condition and has not to be removed. Remove external dirt from time to time with some form of cold cleaner. Use only cold cleaners to avoid damaging the paintwork or removing the lettering. -
Page 9: Spare Parts
Spare parts If necessary please contact our service hotline phone. Service hotline 0049 (0)40 / 730 926 - 0 Scope of delivery / Accessories Included parts: Item no. Supply line with switchable shock proof plug 140022 Conductance sheet 140108 Micro fine dust filterbag - - - Accessories: Item no. -
Page 10: Technical Data
Technical data Universal suction unit SG-1/2 D – Item-No. 140997 Voltage* 220–240 V / 50/60 Hz Output 105 W Power consumption 0.5 A Power consumption connection unit max. 2 A W x H x D 410 x 460 x 185 mm Weight 12.7 kg... -
Page 11: Ec Conformity Certificate
W A S S E R M A N N Product description: Universal suction Dental-Maschinen GmbH unit for dental Rudorffweg 15 - 17 applications D-21031 Hamburg Model: SG-1/2 D Item no. 140997 Applicable DIN EN 61010-1 standards: DIN EN 61000-6-3 DIN EN 61000-6-1 DIN 45635-1 DIN EN 60335-1 Hiermit wird bestätigt, dass die oben bezeichnete Maschine den genannten EG-Richtlinien...
