First things first
General purpose use only
M1000 Digital Calibrator
DANGER
!
This digital calibrator is not intended for hazardous
locations.
Steps to get started
Make a connection
▪ Attach the pressure fittings to the pressure
sensor module.
The threads should be coated with a pipe
▫
sealant compound before installation.
▫ Tighten to finger tight plus 1.5 turns to 3
turns using a 19 mm (3/4 in.) wrench on the
manifold.
Use only a wrench on the fitting
NOTICE
and the manifold.
9R721-IR
Carefully equalize the pressure
To avoid damaging differential sensors:
1. Make sure you are connecting to the correct
pressure port on DN or DI differential pressure
modules.
1. P1 port is high pressure.
2. P2 port is low pressure.
2. Apply pressure to both differential ports (P1 and
P2) at the same time.
M1000 Digital Calibrator & Sensors
Know your batteries
The calibrator is powered by four 1.5 volt AA size
batteries.
mix batteries—not by manufacturer or by
▪ Never
size, by capacity, or by chemistry.
▪ Never mix old and new batteries.
▪ Remove all four batteries in the calibrator at the
same time.
▪ all four batteries with batteries from the
Replace
same package or with the same expiration date.
Install the batteries
1. Turn over the calibrator so the display faces
down.
2. Remove the two screws on the battery cover
with the Phillips head screwdriver by turning
them counterclockwise.
3. Insert four AA batteries.
Pay attention to the positive (+) and
Note:
negative (−) battery polarity markings at the
bottom of the compartment.
4. Replace the battery cover. To secure the cover,
torque the screws clockwise 2 in. lbs. maximum.
© Meriam 2018

Quick Start Guide

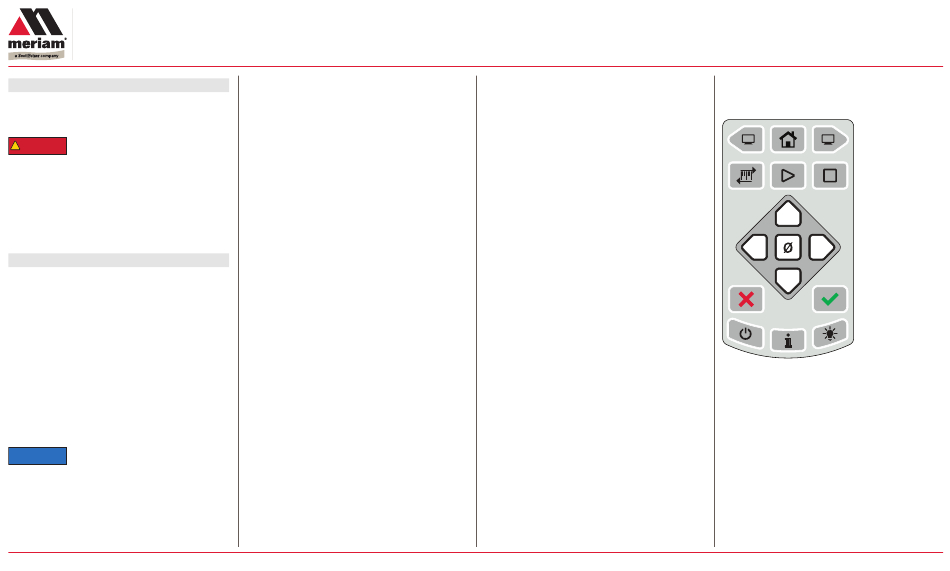

Learn the function keys
The keys from
left to right
1. Backward
2. Home
3. Forward
4. Units
5. Release Hold
6. Hold
7. Up arrow
8. Left arrow
9. Zero
10. Right arrow
11. Down arrow
12. Cancel or
or Esc
13. Accept or ✓
14. Power
15. Information
16. Backlight
Page 1 of 2
×
