MAGNAVALVE FOR WHEEL BLAST MACHINE
SHOT FLOW CONTROL
Electronics Inc.
56790 Magnetic Drive
Mishawaka, Indiana 46545
1-800-832-5653 (Toll Free)
Phone:
1-574-256-5001
Fax:
1-574-256-5222
E-mail:
sales@electronics-inc.com
Website:
www.electronics-inc.com
IM:0091
Instruction Manual
500-24 MagnaValve
Revision: A
Made in the USA
Date: 11/2/2007
Advertisement
Related Manuals for Electronics MagnaValves 500-24
Summary of Contents for Electronics MagnaValves 500-24

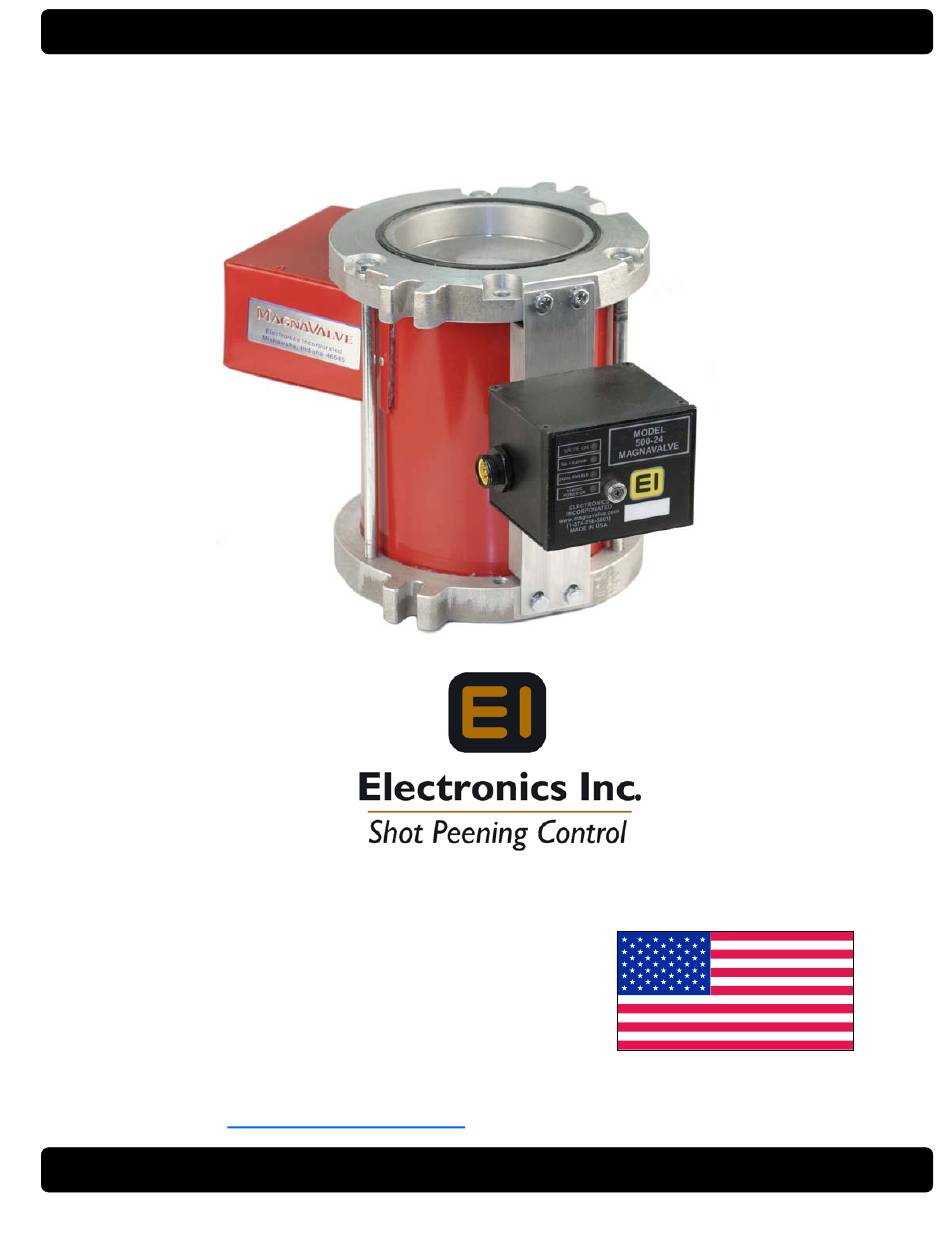

- Page 1 Instruction Manual MAGNAVALVE FOR WHEEL BLAST MACHINE SHOT FLOW CONTROL Electronics Inc. 56790 Magnetic Drive Mishawaka, Indiana 46545 1-800-832-5653 (Toll Free) Phone: 1-574-256-5001 Fax: 1-574-256-5222 Made in the USA E-mail: sales@electronics-inc.com Website: www.electronics-inc.com 500-24 MagnaValve IM:0091 Revision: A Date: 11/2/2007...
- Page 2 Table of Contents PRODUCT DESCRIPTION THEORY OF OPERATION LOCATION OF ADJUSTMENTS PRELIMINARY ADJUSTMENTS INSTALLATION OPERATION CALIBRATION SPARE PARTS LIST TROUBLE SHOOTING GUIDE MAINTENANCE FRONT PANEL DESCRIPTION FIGURE 1 FRONT PANEL WIRING CONNECTIONS...
- Page 3 1. PRODUCT DESCRIPTION The 5xx-24 Series of MagnaValves are designed to regulate the flow of steel shot or grit in abrasive blast cleaning and shot peening machines. The valves have a magnetic control sec- tion (upper portion) and a shot flow rate sensing section (lower portion). Valves are sized by flow rate capacity, either in pounds/minute or in Kg/minute, and are used in air-blast applica- tions such as direct pressure, suction blast or gravity-fed nozzle blast machines.
-
Page 4: Troubleshooting Guide
c. For gravity assisted applications (valve located on the top of blast cabinet below the media hopper) an aspiration air inlet must be provided so media can be conveyed to the nozzle. A minimum opening of 12mm is recommended. Do not restrict this air inlet since it will increase the suction and may pull media through the valve. - Page 5 Zero – turn adjustment until both LED’s are OFF. This will set the output signal to zero ± .050 Vdc during no-flow. Gain – This section controls the amplification or gain of the sensor signal. It has been factory set (see label for flow range).
-
Page 6: Specifications
7.30 SPECIFICATIONS INPUT: ENABLE: 24VDC FLOWCOMMAND: 0-10VDC POWER: 24VDC@ 2A (50VA) 9.00 5.63 ø5.000 ZERO ADJUSTMENTS: SPAN PULSE RATE 6.60 OUTPUTS: FLOW SIGNAL: 0-10VDC .562 "O" RING 5.5 I.D. ACCURACY: ±2% FULL SCALE FLOW RANGE: 120-1200LBS/MIN 1.00 MEDIA: CAST STEEL SHOT CUT WIRE SHOT 3.18 MODE:...
