ERNITEC BDR-510/2 Installation Instruction

Digital camera stations
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation Instruction
for BDR-510/2 & BDR-514/2
Digital Camera Stations

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BDR-510/2 and is the answer not in the manual?

Questions and answers

Related Manuals for ERNITEC BDR-510/2

Summary of Contents for ERNITEC BDR-510/2

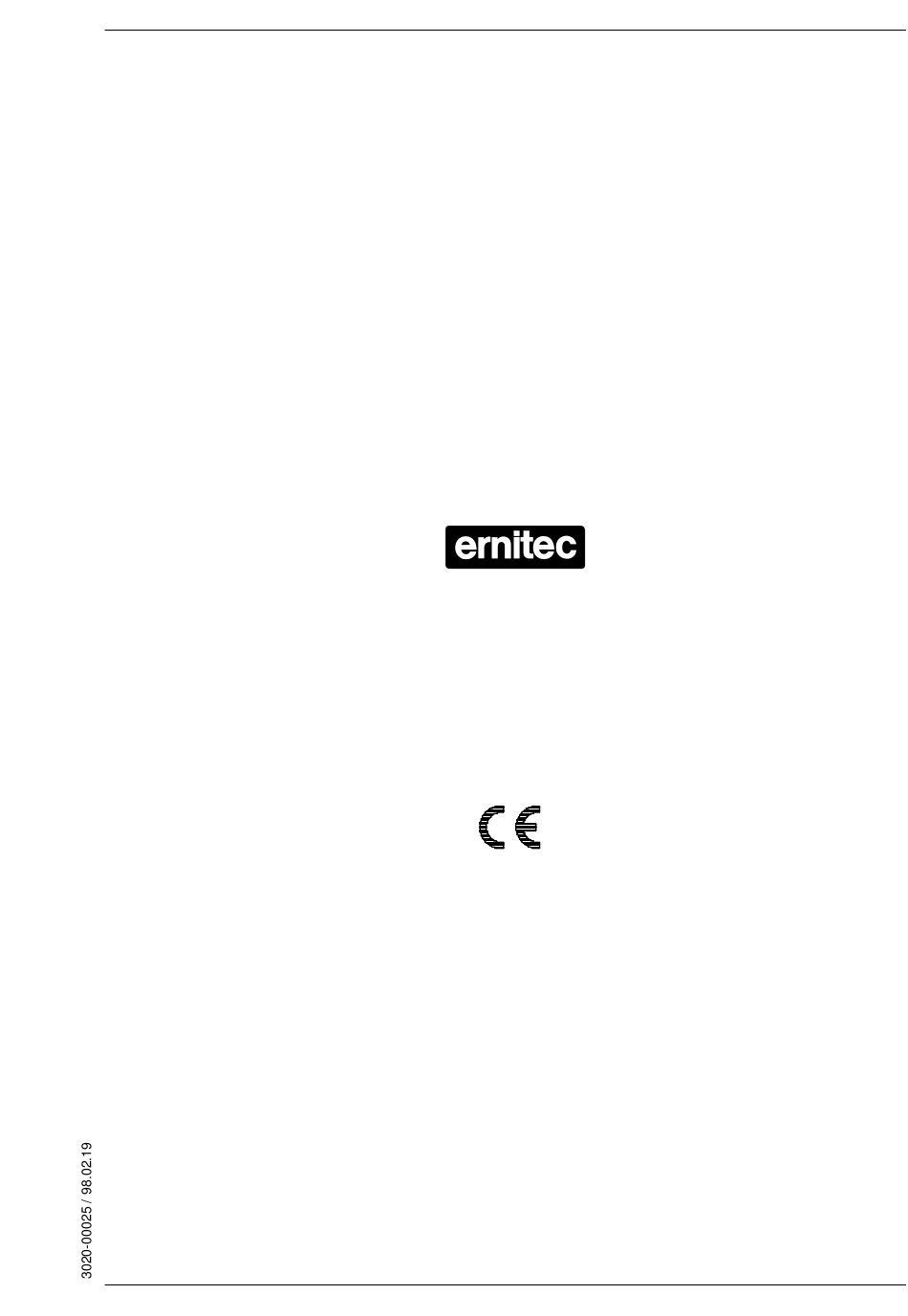

  • Page 1 Installation Instruction for BDR-510/2 & BDR-514/2 Digital Camera Stations...

  • Page 2: Physical Format

    The BDR-510/2 and BDR-514/2 are delivered as self-contained units with a mains change-over switch for selection between 230 VAC and 115 VAC mains voltage. The BDR-510/2 and BDR-514/2 is housed in an IP65 rated ABS-box and can be used in connection with SYSTEM 500M and SYSTEM 1000M. Besides the BDR-510/2 and BDR-514/2 can be controlled and programmed directly from the keyboards 1500M, 1501M, 1502M and 1503M.
  • Page 3 Installation Manual 1.1.3 Commands: Comman Function Data 1 Description Data 2 Description CS Type Relays 0-255 Bit 0 Pan right 0-255 Bit 0 Iris open 1 Pan left 1 Iris close 2 Tilt up 2 AUX1 3 Tilt down 3 AUX2 4 Zoom wide 4 AUX3 5 Zoom tele...
  • Page 4 Installation Manual Comman Function Data 1 Description Data 2 Description CS Type Alarms Configuration 0-255 Bit 0 Alarm 1 0=NC 1=NO 1 Alarm 2 0=NC 1=NO 2 Alarm 1 relay 0=Off 1=On 3 Alarm 2 0=Off 1=On 4 Alarm 1 priority 0=Low 1=High 5 Alarm 2 0=Low 1=High...

  • Page 5: Box Installation

    2. Mains installation The BDR-510/2 or BDR-514/2 should be mounted at a suitable location close to the video camera where mains are available.The BDR-510/2 and the BDR-514/2 can be supplied with either 115 VAC or 230 VAC mains voltage. The mains voltage is selected by the mains voltage change-over switch, refer to figure 2.
  • Page 6 8 PG 9 ERNA output cable The BDR-510/2 - BDR-514/2 Digital Camera Stations must be used with a 3 wire mains connection and an earthed power outlet. All electronic equipment can emit or be sensitive to induced electromagnetic noise, which can be conducted by the connected wires or transmitted as electromagnetic fields.
  • Page 7 Installation Manual BDR-510/2 - BDR-514/2 Layout The BDR-510/2 and BDR-514/2 have been designed for easy installation and set-up. Figure 2 shows the layout of the camera stations. Drilling dimensions: 228 mm POWER ERROR SYNC DANGER DANGER ACHTUNG ACHTUNG MAINS SELECT...

  • Page 8: Mains Connection

    (i.e. Phase to Phase, Neutral to Neutral and Ground to Ground). Otherwise malfunction or even damage to the camera station will occur. For specification of mains, refer to Specifications 2.4.2 Pan/Tilt connection (Only BDR-510/2) A high voltage Pan/Tilt is connected to the terminal blocks X2, and X3. Refer to figure 4. LENS AUX 1...
  • Page 9 Installation Manual MAINS OUT LENS MAINS IN AUX 1 AUX 2 CTRL External LOAD Voltage Figure 6, Connection of external supplied Auxiliary Equipment Be careful not to exceed the maximum rating of the relays, refer to Specifications for maximum load of the relay contacts. 2.4.4 Auxiliary connection AUX 3-6 (Only BDR-914/2) The pan/tilt relays are used as auxiliary relay contacts, having the L P/T terminal located at X3 as...

  • Page 10: Adjustment And Settings

    Figure 9 shows where the different switches and jumpers are located: ERROR SYNC Figure 9, Jumper and switch lay-out. Address settings (1) With the BDR-510/2 series it is possible to address up to 64 units on one twisted pair line: Switch SW1 Description Address number "0" Address number "1"...
  • Page 11 Installation Manual Address number "17" Address number "18" Address number "19" Address number "20" Address number "21" Address number "22" Address number "23" Address number "24" Address number "25" Address number "26" Address number "27" Address number "28" Address number "29" Address number "30"...

  • Page 12: Specifications

    GERMAN OFFICE: ERNITEC GmbH., STORMARNRING 28, 22145 STAPELFELD, GERMANY TELEPHONE: (040) 675625 0, TELEFAX: (040) 675625 25 FRENCH OFFICE: ERNITEC FRANCE, PARC PEREIRE, 95 RUE PEREIRE, BAT. D, 78100 SAINT GERMAINE EN LAYE, FRANCE TELEPHONE: (1) 39 21 12 00, TELEFAX: (1) 39 21 12 95...

  • Page 13: Installation Manual

    Installation Manual JAPAN OFFICE: ERNITEC JAPAN LTD., 8-16 GAKUEN-HIGASHIMACHI, 1-CHOME, KODAIRA-SHI, TOKYO 187, JAPAN TELEPHONE: (0)423 466290, TELEFAX: (0)423 465646 3020-00025 Page 13...

This manual is also suitable for:

Bdr-514/2
