AEA Technology, Inc. E20/20 Quick Start Manual

Testing Made Simple!
AEA Technology, Inc.
E20/20 Step TDR & Avionics TDR
Versions 2.1
Quick Start Guide
This is a generalized Quick Start Guide and is applicable to all
versions of the E20/20 TDRs and Avionics TDR.
The E20/20 and Avionics TDRs are both "Step" Time Domain
Reflectometers. "Pulse" type TDRs send out single pulses on
the cable and listen for reflections from each pulse. A step
TDR sends a continuous wave in sweeps. The advantages
are no "dead zone" on any range, impedance data, faults in
actual Ohms, loop resistance, and an overall clearer trace of
faults and the cable's electrical end.
Before Starting
1. Charge the TDR using the AC wall adapter provided. If
not charged, the TDR can operate from the AC wall
adapter, DC Vehicle adapter, or using AA alkaline cells.
2. Check the cable's specifications for Impedance and
Velocity Factor (VF) (aka: VP, VoP, or NVP).
3. Select the cable type from the "PICK/EDIT LIST" under
the Cables Key or edit a cable type (Bcksp) close to
cable type to be tested and add the new cable to
the "PICK/EDIT LIST."
4. If you need help setting up the TDR for testing press the
at "Setup Wizard" and follow
Help key, then
the instructions.

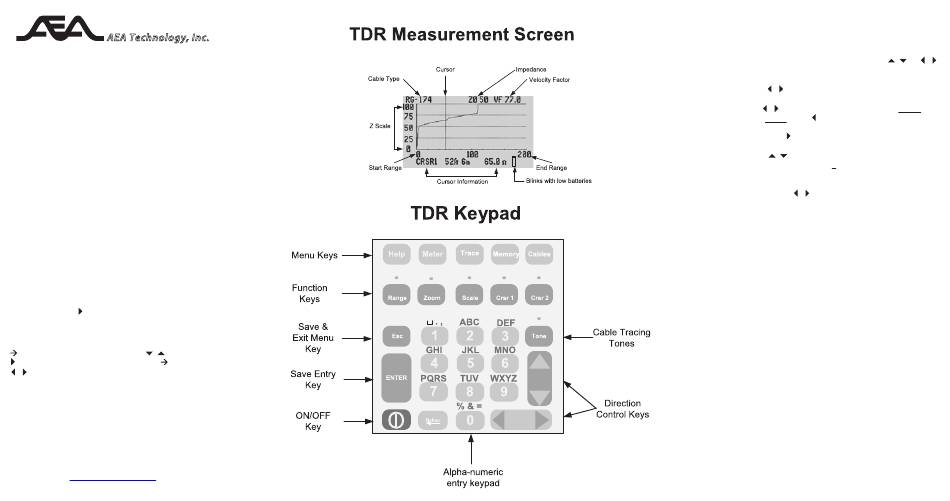

Menu Navigation Guide
- Menu Cursor moves vertically with keys
- Enters/activates menu items marked by
Move through horizontal menu selections
0 – 9 – Used for alpha-numeric entries when required
ENTER – Use to accept a name or numeric entry
Bcksp – Use to delete a character or enter cable edit
ESC – Saves selections and exits to Measurement Screen or
exits back one menu level
