2
GFK-2246

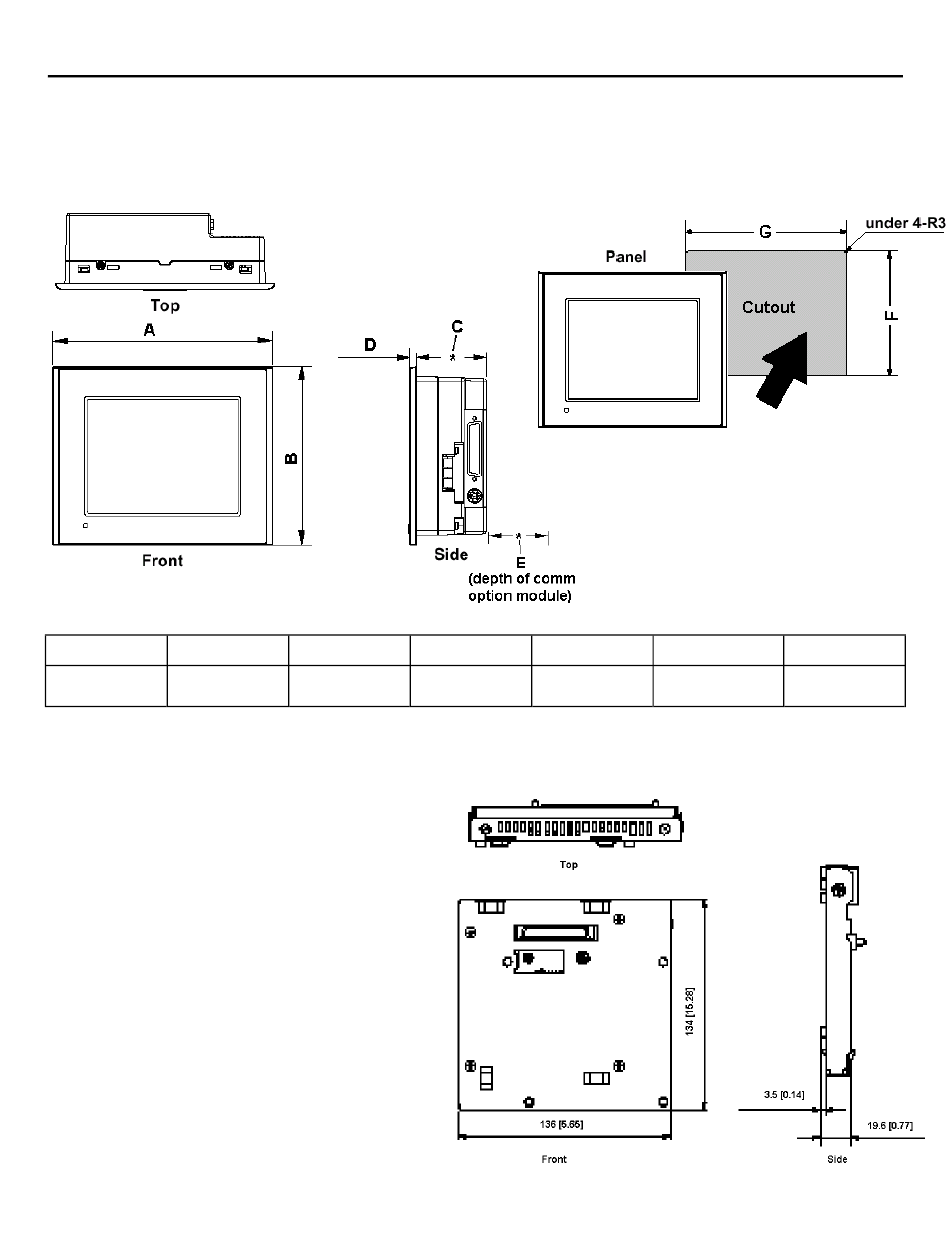

QuickPanel jr. 6" Displays (QPKSxDN0000, QPKCxDE0000)
Dim A
Dim B
6.73
5.43
(171mm)
(138mm)
Note: QPKSxDN0000 and QPKCxDE0000 require converter QPJ-PSM-201 when using a comm. option module.
Option modules:
QPJ-ABD-201 A-B DH Plus
QPJ-ABR-201 A-B Remote I/O
QPJ-MBP-201 Modbus Plus
QPJ-GEG-201 GE Genius
QPJ-DVN-202 DeviceNet
QPJ-IBS-201 Interbus-S
QPJ-PBS-201 Profibus
QPJ-COS-201 CANopen
Dim C
Dim D
2.16
0.2
(55mm)
(5mm)
QuickPanel jr. Installation Instructions
Dim E
Dim F
1
4.86 (+0.04)
(25mm)
(123.5+1mm)
Dim G
6.14 (+0.04)
(156mm +1mm)
