GFK-2246
January 20, 2003
Note: The panel clamps are packed in the carton.
For easier maintenance and proper ventilation, ensure the display is
mounted away from all surrounding objects.

Precautions

When installing the display on a slanted panel, the slope of the panel should be within 30°
from the vertical position. If the slope is greater than 30°, provide fan cooling.
Ensure heat from other equipment does not interfere with the display.
For proper ventilation, provide 4" of clearance around the Quickpanel.
Ground the display to earth ground.
Panel thickness = (1.6mm to 5mm) 0.063in to 0.197in

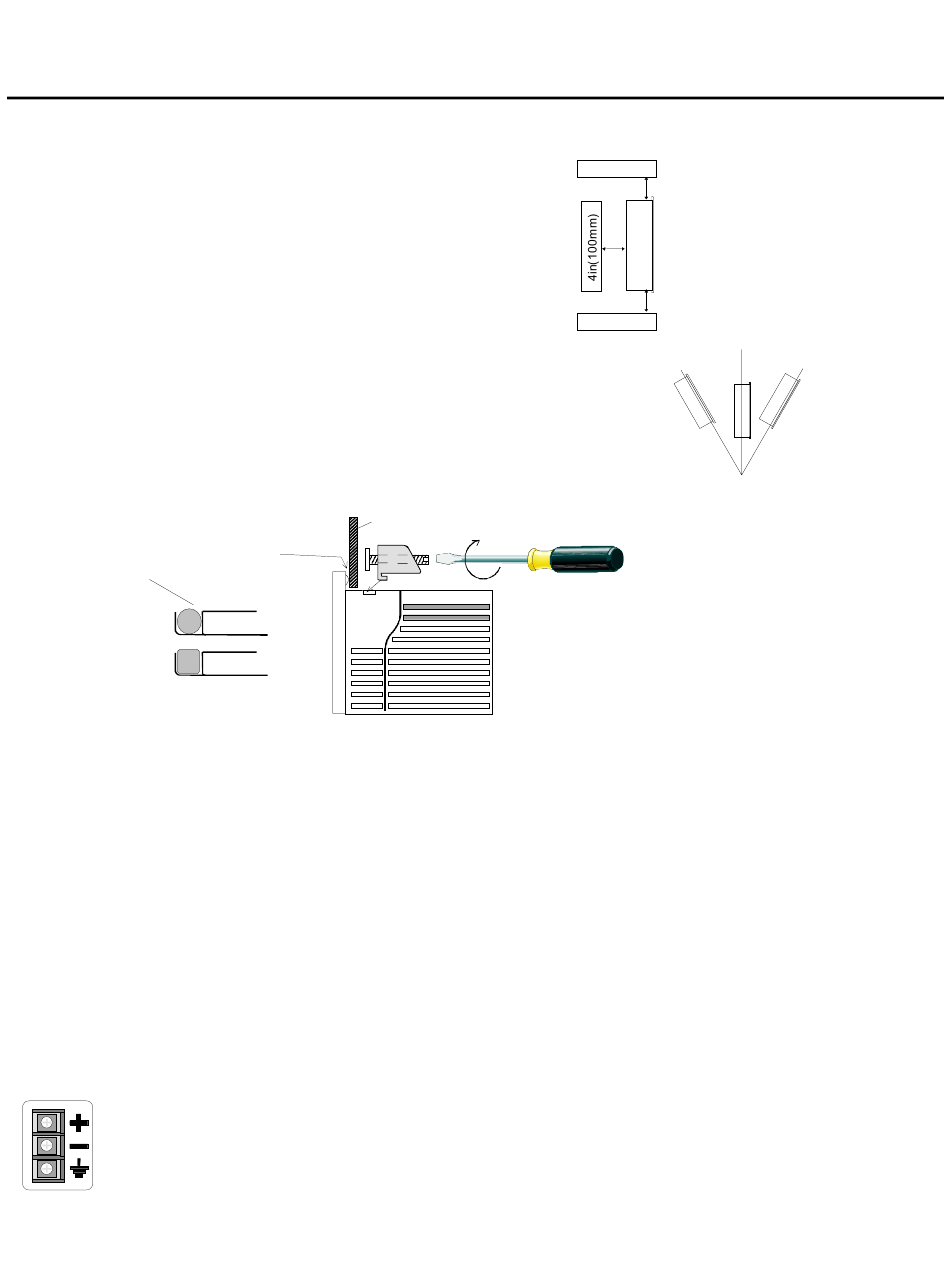

1. Install the gasket in the slot in
the faceplate.
O-RING
or
FLAT
Units Marked UL and c-UL
Use No. 14 to 18 AWG, solid or stranded copper conductors and note the following precautions.
Suitable for use in Class I, Division 2, Groups A, B, C and D hazardous locations, or nonhazardous locations only. Power,
Input and Output (I/O) wiring must be in accordance with Class I, Division 2 wiring methods, Article 501-4(b) of the
National Electrical Code, NFPA 70 or as specified in Section 18-152 of the Canadian Electrical Code for installations within
Canada and in accordance with the authority having jurisdiction.
WARNING: Explosion hazard - substitution of components may impair suitability for Class I, Division 2.
WARNING: Explosion hazard - do not disconnect equipment unless power has been switched off or the area is
known to be nonhazardous.
WARNING: Explosion hazard - when in hazardous locations, turn off power before replacing or wiring modules.

DC Power

DC24V
1. MAKE SURE THE POWER IS OFF.
22W
2. Remove the protective cover on the DC terminal strip.
3. Remove 1/4" of insulation from the supply wires and insert them
under the terminal clanmps.
4. Tighten the clamp screws to secure the wires.
QPK-
5. Replace the protective cover.
PANEL
FRONT
QPKSxDN0000, QPKCxDE0000
Installation Instructions
SIDE
4in(100mm)
4in(100mm)
Torque = 0.5~0.6Nm
2. Insert the display through the panel
opening. Insert the panel clamps into
the slots in the display body. Turn
screw clockwise to tighten.
QuickPanel jr.
30°
30°

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QuickPanel jr. QPKSxDN0000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Total Controls QuickPanel jr. QPKSxDN0000 Series

  • Page 1 QuickPanel jr. QPKSxDN0000, QPKCxDE0000 Installation Instructions GFK-2246 January 20, 2003 SIDE Note: The panel clamps are packed in the carton. 4in(100mm) For easier maintenance and proper ventilation, ensure the display is mounted away from all surrounding objects. 4in(100mm) Precautions • When installing the display on a slanted panel, the slope of the panel should be within 30°...
  • Page 2 QuickPanel jr. Installation Instructions GFK-2246 QuickPanel jr. 6" Displays (QPKSxDN0000, QPKCxDE0000) Dim A Dim B Dim C Dim D Dim E Dim F Dim G 6.73 5.43 2.16 4.86 (+0.04) 6.14 (+0.04) (171mm) (138mm) (55mm) (5mm) (25mm) (123.5+1mm) (156mm +1mm) Note: QPKSxDN0000 and QPKCxDE0000 require converter QPJ-PSM-201 when using a comm.
