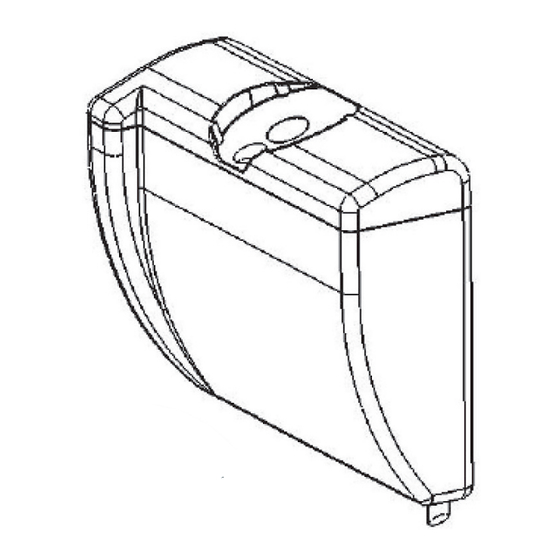

IZAR RADIO EXTERN
434/868 PULSE
Einbauanleitung
Installation guide
Diese
Anleitung ist
dem Endkunden
auszuhändigen.
This guide must be
given to the end
consumer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IZAR RADIO EXTERN 434/868 PULSE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Diehl IZAR RADIO EXTERN 434/868 PULSE

  • Page 1 Deutsch English IZAR RADIO EXTERN 434/868 PULSE Einbauanleitung Installation guide Diese Anleitung ist dem Endkunden auszuhändigen. This guide must be given to the end consumer.
  • Page 2 Deutsch IZAR RADIO EXTERN 434/868 PULSE Verpackungsinhalt Kontrollieren Sie bitte vor der Installation bzw. Inbetrieb- nahme des IZAR RADIO EXTERN 434/868 PULSE den Verpackungsinhalt. 1x Wandhalterung 2 Schrauben 1x Modulgehäuse 2 Dübel Einleitung Das "IZAR RADIO EXTERN 434/868 PULSE" Funkmodul (folgend Funkmodul genannt), ist ein unidirektionaler Funksender, der für viele Zählertypen geeignet ist.
  • Page 3 Beschrei- bung angegebenen Vorschriften installiert und verwendet werden. Jegliche Manipulation oder Installation, die nicht ord- nungsgemäß und entsprechend der genannten Vorschrif- ten erfolgt, entbindet Diehl Metering von jeglicher Ver- antwortung. Diese liegt ausschließlich beim Verursacher. Technische Daten Allgemein Funkfrequenz...
  • Page 4 Deutsch IZAR RADIO EXTERN 434/868 PULSE Umgebung Schutzart IP 68 Betriebstemperatur -15 °C bis +55 °C Lagertemperatur -15 °C bis +55 °C (Lager- dauer <1 Jahr) Luftfeuchtigkeit relativ 10 % bis 70 % (nicht kondensierend) Hinweise Verwenden Sie dieses Modul bei Gerätefehlern nicht mehr und kontaktieren Sie sofort den zuständigen Kundensupport.
  • Page 5: Installation

    Deutsch IZAR RADIO EXTERN 434/868 PULSE Installation Der Montageabstand des Funkmoduls zu metal- lenen Gegenständen muss mindestens 1 m betragen. Das Funkmodul darf nicht direkter Sonnenein- strahlung ausgesetzt sein. Die Wandhalterung muss an einer geraden und flachen Wand montiert werden.
  • Page 6 Deutsch IZAR RADIO EXTERN 434/868 PULSE Anschluss an einen Zähler mit Reedkontakt oder Open Collector Ausgang gelb IZAR RADIO 868 extern Impulsgeber Geber mit 2 Leitern gelb Richtung IZAR RADIO 868 extern Impulsgeber Geber mit 3 Leitern und Richtungserkennung gelb...
  • Page 7 Deutsch IZAR RADIO EXTERN 434/868 PULSE Richtung gelb IZAR RADIO 868 extern Impulsgeber Geber mit 4 Leitern und Erkennung von Richtung und Manipulation Weiß = Impulse Gelb = Richtung Grün = Manipulation Braun = Masse Das Kabel hat eine Standardlänge von 3 m. Es kann aller- dings mit Verbindern extern auf eine Gesamtlänge von...
  • Page 8 Deutsch IZAR RADIO EXTERN 434/868 PULSE Die Verbinder sind gegenüber der Umgebungs- feuchtigkeit zwar dicht, aber nicht dafür vorge- sehen, eingetaucht zu werden. Für diesen Fall ist für eine ausreichende Abdich- tung gegen Feuchte zu sorgen. Die Verbinder sind im Lieferumfang enthalten.
  • Page 9: Wartung

    Verwenden Sie bitte zur Programmierung den Bluetooth-Optokopf IZAR OH BT. Wartung IZAR RADIO EXTERN 434/868 PULSE benötigt keine besondere Wartung. Nicht mit Lösungsmitteln oder Scheuermittel reinigen, da diese das Kunststoffgehäuse beschädigen können. Wenn nötig, Tuch oder feuchten Schwamm zur Reinigung verwenden.
  • Page 10: Transport Und Lagerung

    Senden Sie es zum Recycling an den Hersteller zurück. Zulassung und Konformität Hiermit erklärt Diehl Metering, dass der Funkanlagen- typ IZAR RADIO EXTERN 434/868 PULSE der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: http://www.diehl.com/de/diehl-metering/produkte-...
  • Page 11: Package Content

    English IZAR RADIO EXTERN 434/868 PULSE Package content Please check the package content before you install or use the IZAR RADIO EXTERN 434/868 PULSE for the first time. 1x wall bracket 2 screws 1x module housing 2 dowels Introduction The "IZAR RADIO EXTERN 434/868 PULSE" radio module (hereinafter referred as radio module), is a unidirectional radio transmitter, which is suitable for many meter types.
  • Page 12: Technical Data

    Any manipulation or installation, that is not prop- erly carried out and does not correspond to the mentioned regulations, obviates any responsibil- ity on the part of Diehl Metering. In this case, the responsibility lies solely with the originator. Technical Data...
  • Page 13 English IZAR RADIO EXTERN 434/868 PULSE Environment Protection class IP 68 Operating temperature -15 °C to +55 °C Storage temperature -15 °C to +55 °C (storage period <1 year) Relative humidity 10 % to 70 % (non-con- densing) Instructions In the event of equipment error, discontinue use and contact the responsible customer support immediately.
  • Page 14 English IZAR RADIO EXTERN 434/868 PULSE Installation The minimum installation distance between the radio module and metal objects is 1 m. The radio module must not be exposed to direct sunlight. The wall bracket must be evenly mounted on a straight and flat wall.
  • Page 15 English IZAR RADIO EXTERN 434/868 PULSE Connection to a meter with reed contact or open collector output yellow IZAR RADIO 868 external Pulse transducer Transmitter with 2 conductors yellow Direction IZAR RADIO 868 external Pulse transducer Transmitter with 3 conductors and directional detection...
  • Page 16 English IZAR RADIO EXTERN 434/868 PULSE Direction yellow IZAR RADIO 868 external Pulse transducer Transmitter with 4 conductors and detection of direction and manipulation White = Pulse Yellow = Direction Green = Manipulation Brown = Ground The cable has a standard length of 3 m. However, it can be extended to an overall length of 10 m by means of connectors.
  • Page 17 English IZAR RADIO EXTERN 434/868 PULSE The connectors are resistant to ambient humid- ity but they are not supposed to be immersed in water. In this case, a sufficient sealing against humidity has to be provided. The connectors are included in the scope of delivery.
  • Page 18: Maintenance

    OptoHead is self-adhesive). For programming, please use the Bluetooth OptoHead IZAR OH BT. Maintenance IZAR RADIO EXTERN 434/868 PULSE does not require any special maintenance. Do not use solvents or abrasive cleaning agents, as these may damage the plastic housing.
  • Page 19: Transport And Storage

    Return it to the manufacturer for recycling. Approval and Conformity Hereby, Diehl Metering declares that the radio equipment type IZAR RADIO EXTERN 434/868 PULSE is in compli- ance with Directive 2014/53/EU. The full text of the EU declaration of conformity is availa- ble at the following internet address: http://www.diehl.com/en/diehl-metering/products-...
  • Page 20 Diehl Metering GmbH Industriestrasse 13 91522 Ansbach Phone: +49 981 1806-0 Fax: +49 981 1806-615 info-dmde@diehl.com www.diehl.com/metering...
