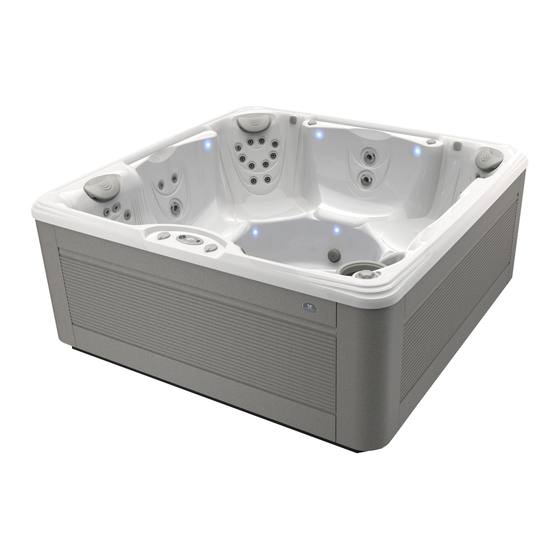

Vacanza
Please take the time to read this booklet carefully, as it will provide you with the information you will need to ensure
the safe, secure, and timely installation of your new spa. The following sections are guidelines on how to prepare for
delivery and set-up of your new spa. Specifically covered are site selection, delivery access, ground preparation, and
electrical requirements.
Remember to carefully read the Owner's Manual that accompanies your spa, and to complete the warranty card
within 10 days of delivery. These items, along with other valuable information, will be found in the Owner's Package
which has been placed in the equipment compartment of your spa, where you will also find a serial number.
WATKINS WELLNESS reserves the right to change features, specifications and design without notification and
without incurring any obligation.
DATE PURCHASED: _________________________________________________________________
DATE INSTALLED: ___________________________________________________________________
DEALER: ___________________________________________________________________________
ADDRESS: __________________________________________________________________________
TELEPHONE: _______________________________________________________________________
In most cities and counties, permits will be required for the installation of electrical circuits or the construction of
exterior surfaces (decks and gazebos). In addition, some communities have adopted residential barrier codes which
may require fencing and/or self-closing gates on the property to prevent unsupervised access to a pool (or spa) by
children under 5 years of age. Your Caldera
Standard for Safety Covers and as a result, is usually exempt from most barrier requirements. As a general practice,
your local Building Department will inform you of any applicable barrier requirements at the time a permit is obtained
for the installation of an electrical circuit. Your CALDERA dealer can provide information on which permits may be
required.
®
Series Pre-Delivery Instructions
spa is equipped with a locking cover that meets the ASTM F1346-91
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vacanza Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Caldera Vacanza Series

  • Page 1 Standard for Safety Covers and as a result, is usually exempt from most barrier requirements. As a general practice, your local Building Department will inform you of any applicable barrier requirements at the time a permit is obtained for the installation of an electrical circuit. Your CALDERA dealer can provide information on which permits may be required.
  • Page 2 An architect can help to determine if more ventilation must be installed. Your CALDERA dealer can help you with local information such as zoning regulations and building codes. nstallatIon To be certain your deck can support your spa, you must know the deck’s maximum load capacity.
  • Page 3: Installation Notes

    As a homeowner, it is your responsibility to provide a suitable, level foundation for your spa. Keep in mind that most delivery crews are not equipped to level and prepare spa sites. If you are interested in having a concrete slab, brick surface, or wood deck installed, your CALDERA dealer should be able to suggest a qualified, licensed contractor.
  • Page 4 The CALDERA spa delivery personnel will supervise the crane delivery and complete the spa placement.
  • Page 5 ® PALATINO NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions. FRONT 38.5” VIEW (99.0cm) DOOR DOOR DOOR 36.0” 27.25" (91.0cm) 27.25" 20.5" (69.0 cm) (52.0 cm) (69.0 cm) 6.5” (16.5cm) 18” 5” 2.5” (6.5cm) (45.5cm) (12.7cm) ELECTRICAL...
  • Page 6 Pre-Delivery Instructions ® ® MARINO / VANTO NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions 36.0” (91.0cm) DOOR DOOR DOOR 32.5” (82.5cm) 20.5" 29" 20.5" (52.0 cm) (74.0 cm) (52.0 cm) 6.5” (16.5cm) 18”...
  • Page 7 TARINO ™ NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions 33.0” (84.0cm) DOOR DOOR DOOR 29.5” (75.0cm) 20.5" 29" 20.5" (52.0 cm) (74.0 cm) (52.0 cm) 6.5” (16.5cm) 18” 5.0” 2.5” (45.5cm) (12.5cm) (6.5cm) AIR VENT ELECTRICAL...
  • Page 8 Pre-Delivery Instructions ® AVENTINE NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions. 25” (64cm) FRONT DOOR VIEW 29” 40" (74cm) (102.0 cm) 11” DRAIN (28cm) 2.5” (6.5cm) ELECTRICAL CUTOUT 63” (160cm) 59.25” (150cm) BOTTOM VIEW 19.5”...
  • Page 9: Electrical Requirements

    CALDERA spa service technician. NOTE: Consult your local code authority to determine if an electrical outlet with a cover is required for your installation. If it is, a suitable outlet cover may be purchased from your authorized CALDERA dealer. 115 v lectrIcal equIrements The TARINO &...
  • Page 10 Pre-Delivery Instructions The TARINO and AVENTINE spa comes equipped with approximately 15 feet of usable power cord (this is the maximum length allowed by regulatory standards and the National Electric Code). The power cord is wrapped in bubble packaging for shipping and can be found inside the skirt. Remove the bubble wrap and roll the cord out to the desired length.
  • Page 11: Control Box

    230 v nstallatIon Your spa contains a control box designed to operate at 230V, 60Hz. Installation of a 30 or 50 amp dedicated circuit is required. The control box must be hard wired directly to a subpanel protected by a Ground Fault Circuit Interrupter (GFCI).
  • Page 12 CD ozone generator • Clean Screen Pre-Filter • Replacement Filter Cartridge • Vinyl covers • CALDERA Entertainment Systems • Pillows • Retractable cover system with clearance requirements (PALATINO, MARINO, VANTO & TARINO spas only): ProLift ® - 14” Clearance Required PROLIFT II - 30”...
  • Page 13 notes Page 13...
  • Page 14 Pre-Delivery Instructions notes Page 14...
  • Page 15 notes Page 15...
  • Page 16 Vista, California 92081 (800) 669-1881 extension 8432 ©2018 Watkins Wellness. Vacanza, Palatino, Marino, Vanto, Tarino, Aventine, Caldera, Monarch, Vanishing Act, Clean Screen, and ProLift are trademarks of Watkins Wellness. FROG and SmartChlor are registered trademarks of King Technology, Inc. 62908.18 A (1/18)
