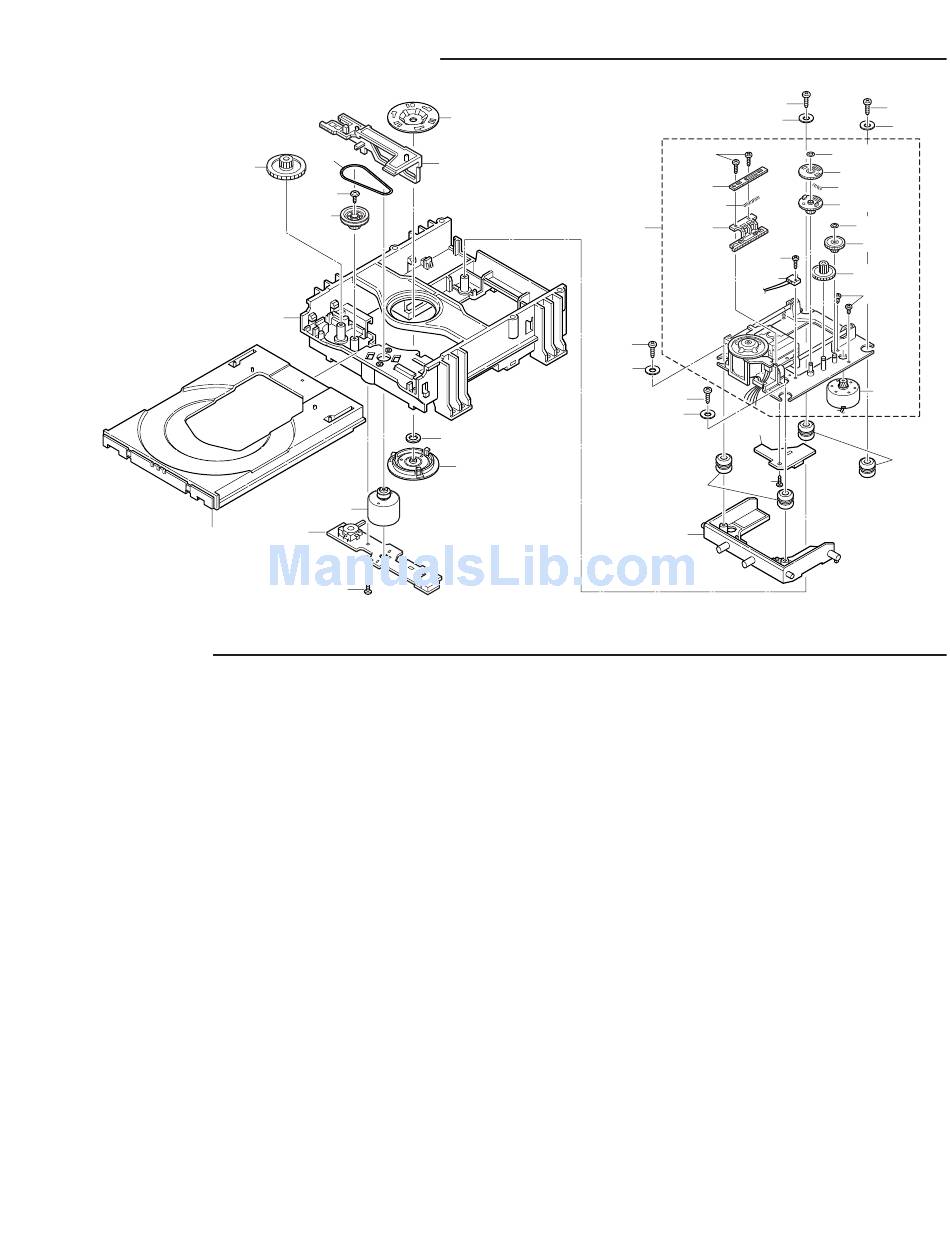

EXPLODED VIEW(DVD MECHANISM)

DM05
DM08
DM10
DM09

PARTS LIST

DVD MECHANISM
REF.NO. PART NO.
614 324 8460 ASSY,MECHA,710AVM2 WOFG,
DM02 614 320 2264 DISC,CHUCK DISC
DM03 614 320 2356 SLIDE,BASE UP/DOWN
DM04 614 323 3923 BELT,SQUARE,LOADING
DM05 614 320 2271 GEAR,LOADING GEAR
or 614 324 5230 GEAR,LOADING GEAR
DM06 412 061 7803 SPECIAL SCREW,PULLEY FIX
DM07 614 320 2349 PULLEY,LOADING RETARD PULLY
DM08 614 320 3865 CHASSIS,LOADING CHASSIS
DM09 614 320 2363 TRAY
DM11 411 021 2704 SCR S-TPG BIN 2.6X6,
DM12 645 032 4352 ASSY,MOTOR LOADING
DM13 645 051 4920 MAGNET(CHUCK),MAGNET CHUCK
or 645 054 0448 MAGNET(CHUCK),MAGNET CHUCK
DM14 614 320 2288 HOLDER,CHUCK HOLDER
DM17 411 021 1806 SCR S-TPG BIN 2.6X10,BASE FIX
DM18 411 092 0906 WASHER Z 2.6X10X0.5,BASE FIX
DM19 614 324 8484 ASSY,MECHA,700AVM2BA WOFG,
DM20 411 184 0302 SCR S-TPG PAN PCS 1.7X4.5,
DM21 614 310 2083 GEAR,RACK,MOVE PICKUP(FREE)
DM22 614 310 6159 SPRING,COMP,
DM23 614 310 2076 GEAR,RACK,MOVE PICKUP(FIX)
DM24 411 018 4704 SCR PAN PCS 1.7X5,LIMIT SW FIX
DM25 645 040 9899 SWITCH,MICRO 1P-2T,LIMIT SW
DM26 412 057 8304 SPECIAL WASHER,FOR GEAR 4 FIX
DM27 614 310 2069 GEAR,GEAR-5
DM02
DM04
DM03
DM06
DM07
DM13
DM12
DM11
DESCRIPTION
MECHANISM
PWB MECHA SW FIX
BASE MECHA
RACK FIX
FOR BACK RUSH(RACK)
DM19
DM17
DM18
DM14
REF.NO. PART NO.
DM28 614 310 6142 SPRING,COMP,FOR BACK RUSH
DM29 614 310 2052 GEAR.,GEAR-4
DM30 412 057 8304 SPECIAL WASHER,FOR GEAR 2 FIX
DM32 614 310 2038 GEAR.,GEAR-2
DM33 411 106 7709 SCR PAN PCS 1.7X2.5,
DM34 645 051 5194 ASSY,MOTOR,SLED MOTOR
DM36 614 310 2045 GEAR.,GEAR-3
DM37 614 320 2301 MOUNTING,BASE MECHA MOUNTING
DM38 614 310 6128 SPACER,MECHA,
DM39 614 322 9070 SPACER,MECHA,
DM41 411 022 7807 SCR S-TPG PAN 2X6,
MECHA SW P.W.BOARD ASSY
REF.NO. PART NO.
DM10 614 320 2219 ASSY,PWB MECHA SW(Only initial)
CN001 614 310 2618 PLUG,5P,MOTOR & SW PWB CONNE
or 645 006 0922 PLUG,5P,MOTOR & SW PWB CONNE
S0001 645 051 5378 SWITCH,LEVER,MECHA SW
MECHA IF P.W.BOARD ASSY
REF.NO. PART NO.
DM40 614 320 5838 ASSY,PWB MECHA IF(Only initial)
CN002 645 023 3760 SOCKET,FPC 8P,
- 6 -
DM17
DM18
DM20
DM21
DM22
DM23
DM24
DM25
DM17
DM18
DM40
DM41
DM38
DM37
DESCRIPTION
SLED MOTOR FIX
BASE MECHA FLOATING
BASE MECHA FLOATING
PWB MECHA IF FIX
DESCRIPTION
DESCRIPTION
MECHA IF FFC SOCKET
DM17
DM18
DM26
DM27
DM28
DM29
DM30
DM32
DM36
DM33
DM34
DM39
