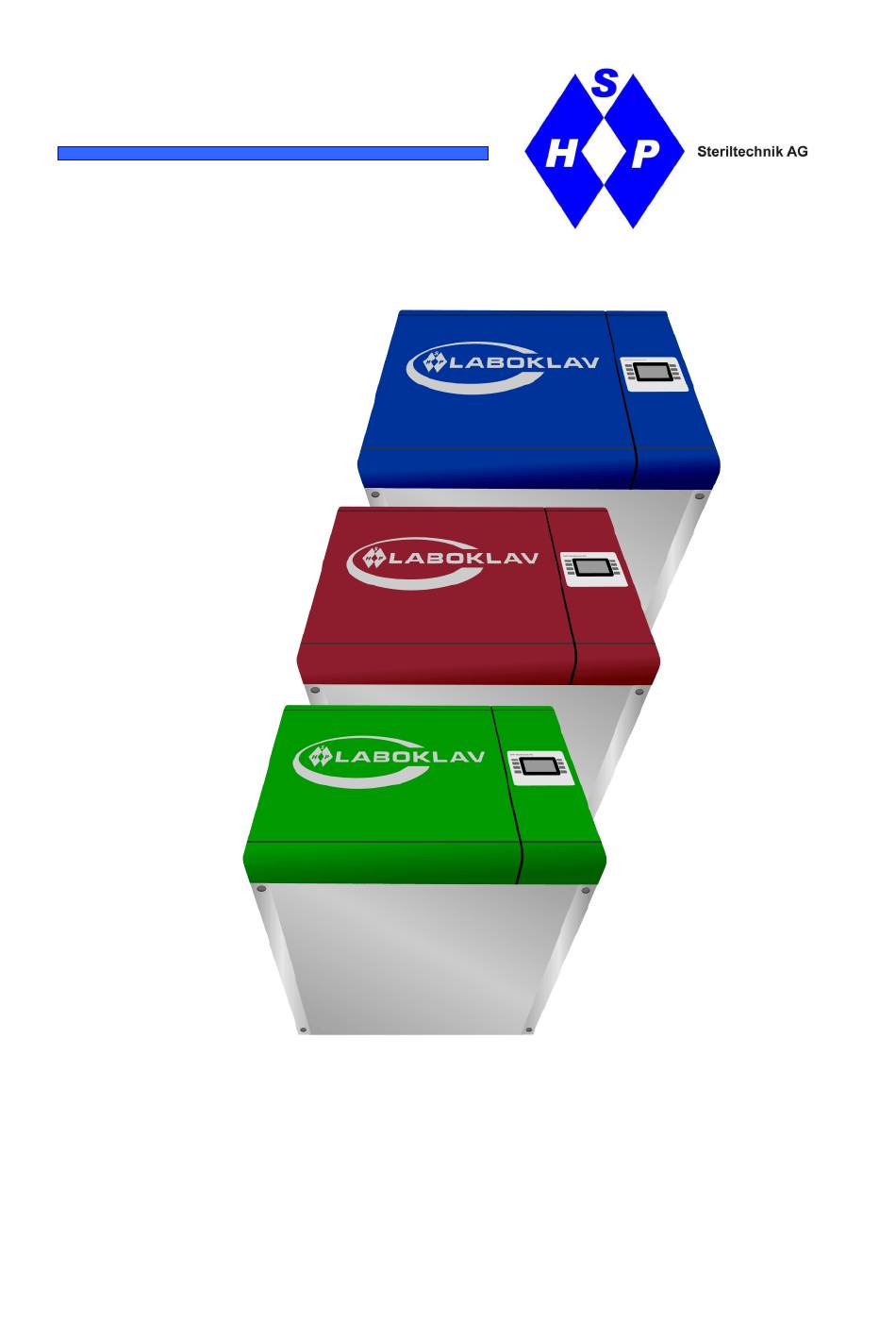

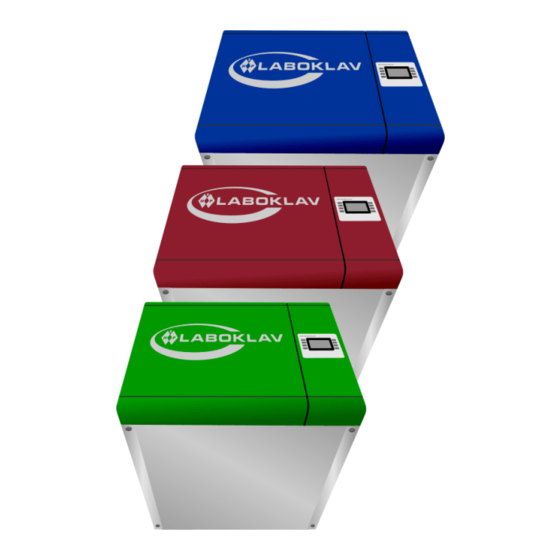

  • Page 1 Laboklav Dampfsterilisatoren Steam sterilizers Type 55 to 195 Liter User manual Edition 04/2010...
  • Page 2 SHP Steriltechnik AG Schloss Detzel 1 D-39345 Detzel Schloss / Satuelle Tel: +49 (0) 39058 97 62- 0 Fax: +49 (0) 39058 97 62- 22 E-Mail: info@shp-steriltechnik.de Internet: www.shp-steriltechnik.de...
  • Page 3 Steam sterilizer Laboklav 55 - 195 user manual Please read these user instructions before starting the use of the steam sterilizer! It is necessary to keep this user manual over the complete life cycle of the sterilizer nearby the unit.

  • Page 4: Table Of Contents

    Steam sterilizer Laboklav 55 - 195 Table of content page I. General application, construction and use of Steam sterilizer line Laboklav 55 - 195 .........5 II. Steam sterilizer Laboklav xxx technical data .......................7 III. Programs available in steam sterilizer line Laboklav 55 - 195 .................13 •...

  • Page 5: General Application, Construction And Use Of Steam Sterilizer Line Laboklav 55 - 195

    I. General application, construction and use of Steam sterilizer line Laboklav 55 - 195 The steam sterilizer line Laboklav 55 - 195 is equipped with a chamber by 55 Liter to 195 Liter chamber volume. It is constructed for the steam sterilization of instruments, materials for non medical use and liquids.

  • Page 6: User Manual Steam Sterilizer Laboklav

    Steam sterilizer Laboklav 55 - 195 Cooling process using the feed water stored in an included feed water tank (all units with included fast cooling option). That reduces the need of expensive demineralized water and sores heating energy in the feed water. Additionally it is degassing the feed water for the next cycle so it increases the quality of the complete sterilization process.

  • Page 7: Steam Sterilizer Laboklav Xxx Technical Data

    Steam sterilizer Laboklav 55 - 195 user manual II. Steam sterilizer Laboklav xxx technical data Laboklav 55 Overall dimension (free standing unit)(W x H x D)..740 x 765 x 600 mm Footprint (Bench top unit)(W x D)…………………….. 740 x 670 mm Weight (net)..............
  • Page 8 Steam sterilizer Laboklav 55 - 195 Laboklav 80 Overall dimension (free standing unit)(W x H x D)..740 x 915 x 600 mm Footprint (Bench top unit)(W x D)…………………….. 740 x 820 mm Weight (net)..............ca. 165 kg Volume Feed water tank..........
  • Page 9 Steam sterilizer Laboklav 55 - 195 user manual Laboklav 100 Overall dimension (free standing unit)(W x H x D)..740 x 1065 x 600 mm Footprint (Bench top unit)(W x D)…………………….. 740 x 970 mm Weight (net)..............ca. 195 kg Volume Feed water tank..........
  • Page 10 Steam sterilizer Laboklav 55 - 195 Laboklav 135 Overall dimension (free standing unit)(W x H x D)..840 x 965 x 700 mm Footprint (Bench top unit)(W x D)…………………….. 840 x 870 mm Weight (net)..............ca. 205 kg Volume Feed water tank..........
  • Page 11 Steam sterilizer Laboklav 55 - 195 user manual Laboklav 160 Overall dimension (free standing unit)(W x H x D)..840 x 1065 x 700 mm Footprint (Bench top unit)(W x D)…………………….. 840 x 975 mm Weight (net)..............ca. 220 kg Volume Feed water tank..........
  • Page 12 Steam sterilizer Laboklav 55 - 195 Laboklav 195 Overall dimension (free standing unit)(W x H x D)..840 x 1215 x 700 mm Footprint (Bench top unit)(W x D)…………………….. 840 x 1085 mm Weight (net)..............ca. 255 kg Volume Feed water tank..........

  • Page 13: Programs Available In Steam Sterilizer Line Laboklav 55 - 195

    Steam sterilizer Laboklav 55 - 195 user manual III. Programs available in steam sterilizer line Laboklav 55 - 195 • standard programs Instruments ST Instrumente 190 kPa 120 kPa Athmosphärischer Druck [kPa] Zeit Program Instruments ST available in version Laboklav xxx B, M, MS und MSL Destruction ST Müll...
  • Page 14 Steam sterilizer Laboklav 55 - 195 Flüssigkeit Liquids ST Athmosphärischer Druck [kPa] Zeit Program Liquids ST in version Laboklav xxx B und V Destruction LI Flüssigmüll Athmosphärischer Druck [kPa] Zeit Program Destruction LI in all versions Laboklav xxx, in versions with cooling active fast cooling RM...

  • Page 15: Programs With Fast Cooling

    Steam sterilizer Laboklav 55 - 195 user manual • Programs with fast cooling Liquids RM Flüssigkeit Athmosphärischer Druck [kPa] Zeit Program Liquids RM in version Laboklav xxx M, MS,MSL, MV, MSV und MSLV Flüssigkeit RO Liquids RO Athmosphärischer Druck [kPa]...
  • Page 16 Steam sterilizer Laboklav 55 - 195 Liquids RG Flüssigkeit RG Athmosphärischer Druck [kPa] Zeit Program Liquids RG in version Laboklav xxx MSL und MSLV...

  • Page 17: Programs With Vacuum (Versions V, Mv, Msv Und Mslv)

    Steam sterilizer Laboklav 55 - 195 user manual • Programs with vacuum (versions V, MV, MSV und MSLV) Instrumente mit Trocknungsvakuum Instruments FV 170kPa Athmosphärischer Druck [kPa] min 7 kPa Zeit Program Instruments FV in version Laboklav xxx V, MV, MSV und MSLV...
  • Page 18 Steam sterilizer Laboklav 55 - 195 - Sterilizing (Sterilisieren) While sterilization phase the unit is keeping the settemperature over the sterilization time. In case over lower temperature that set temperature, the timer for the sterilization time is stopping.
  • Page 19 Steam sterilizer Laboklav 55 - 195 user manual The table gives an overview for the different preselected programs. Prog. Material Deaeration Steril. Steril. drying/co durati time temp. oling [min] P1 (B/M/MS/MSL) Instruments Pressure purg: 6x 15 min 134°C No drying 70 kPa / 30 kPa Instr.

  • Page 20: Operating The Steam Sterilizer Laboklav 55 - 195

    Steam sterilizer Laboklav 55 - 195 IV. Operating the steam sterilizer Laboklav 55 – 195 1. List of delivered parts Device in ordered specification (options) Connecting pipes for water supply steam / condensate remove Bottom sheet Documents including user manual, pressure vessel papers (conformity declaration), safety valve calculation, warranty declaration Basket acc.

  • Page 21: Installation And Operation

    Switching on the main switch the display is switched on and shows the software version and the SHP Logo short time. When switched on the device is ready for use. Do not manipulate the device! If the device is not going on please check the main breakers of the unit (4 –...

  • Page 22: Touch Panel

    Steam sterilizer Laboklav 55 - 195 • Touch panel 10 11 1 Display displays program parameter, cycle data and error messages 2 Cursor button to left moves cursor left 3 Display button changes display from normal program display to display of actual sensor...

  • Page 23: Program Change

    Steam sterilizer Laboklav 55 - 195 user manual • Program change Activating a Program is done by pressing program button (9). It opend the program menu and with the up (4) and down button (5) the right program is chosenby pressing the enter button (7). All...

  • Page 24: Changing Program Parameters

    Steam sterilizer Laboklav 55 - 195 • Changing program parameters To change program parameters press the Enter button. You reach the code menu. Give the code 2000 to the menu and confirm with Enter button. To navigate trough the menu use the cursor buttons.
  • Page 25 Steam sterilizer Laboklav 55 - 195 user manual 4. Sterilization cycle progress The program cycle is running fully automatically. The display shows the actual program cycle and gives information what is the actual situation in the running program phase. The successful finish of sterilization cycle will be displayed. In case of an incorrect cycle additionally sounds an acustic signal.
  • Page 26 Steam sterilizer Laboklav 55 - 195 Deaertion has finished, the program is now in heating phase. Setpoint for finish of this phase is reaching the 134° C chamber temperature. The sterilizer is in sterilization phase, 2 minutes before finish of this phase.

  • Page 27: Error Handling

    Steam sterilizer Laboklav 55 - 195 user manual The program cycle has finished successfully. The sterilizer gives the result as correct cycle. Now the program needs to be quit by pressing the Stop button. Tehn the lid can be opened and the sterilization good can be removed from chamber.

  • Page 28: Operating The Sterilizer - Generall Information

    Steam sterilizer Laboklav 55 - 195 6. Operating the sterilizer – generall information • Preheating the chamber After switching on the unit it is in a wait modus. After activating a program the unit changes into a standby modus and activates automatic preheating function. This function is automatically preheating the steam generator if the lid is closed.

  • Page 29: Cancellation Of Program Cycle

    Steam sterilizer Laboklav 55 - 195 user manual Attention please while using hot liquids! While contact with hot liquids with temperature of more than 60° C it c an burn the skin! Attention please while handling closed waste bags! If the unit is not equipped with vacuum the waste needs to be opend while loaded into the chamber.
  • Page 30 Steam sterilizer Laboklav 55 - 195 The DOKUMENTATOR software has different levels of functionality. In basic module the following functions are available: Documentation of running cycle; Readout of data from memory; Display of different analog channels; Printout of the data as graphic and table;...

  • Page 31: Maintenance

    Steam sterilizer Laboklav 55 - 195 user manual V. Maintenance The sterilizer should get regular cleaning, maintenance and service. Some parts are regular to be changed completely to protect the device against damage or mistakes in sterilization cycle. The simple cleaning and maintenance activities can be done by the operator without problems.

  • Page 32: Regular Cleaning, Maintenance And Service Activities

    Steam sterilizer Laboklav 55 - 195 • Regular cleaning, maintenance and service activities Recommended time activity notes dayl Half year thly year Cleaning the surface of chamber ring Especially after over boiling of sugar or agar Cleaning chamber inside...

  • Page 33: Check Of The Safety Valve(S)

    Steam sterilizer Laboklav 55 - 195 user manual - Cleaning the chamber inside – for cleaning the chamber use a wet and soft towel from cotton material. Special cleaning material or chemicals are not necessary. Do not use aggressive or...

  • Page 34: Description Of Safety Devices

    Steam sterilizer Laboklav 55 - 195 VI. Description of safety devices The steam sterilizer is equipped with different safety devices. The safety devices protect the user against injury and safe the sterilization process. Mechanical and electronic safety devices are build in and realize in sum a safety concept with different safety functions.

  • Page 35: Additional Information

    Steam sterilizer Laboklav 55 - 195 user manual VII. Additional Information • Definition of feed water quality Acc. to EN 285 – “Steam sterilizers”, app. B / EN 13060 – small size steam sterilizers App. C Feed water Condensate ≤ 10 mg/l ≤...
