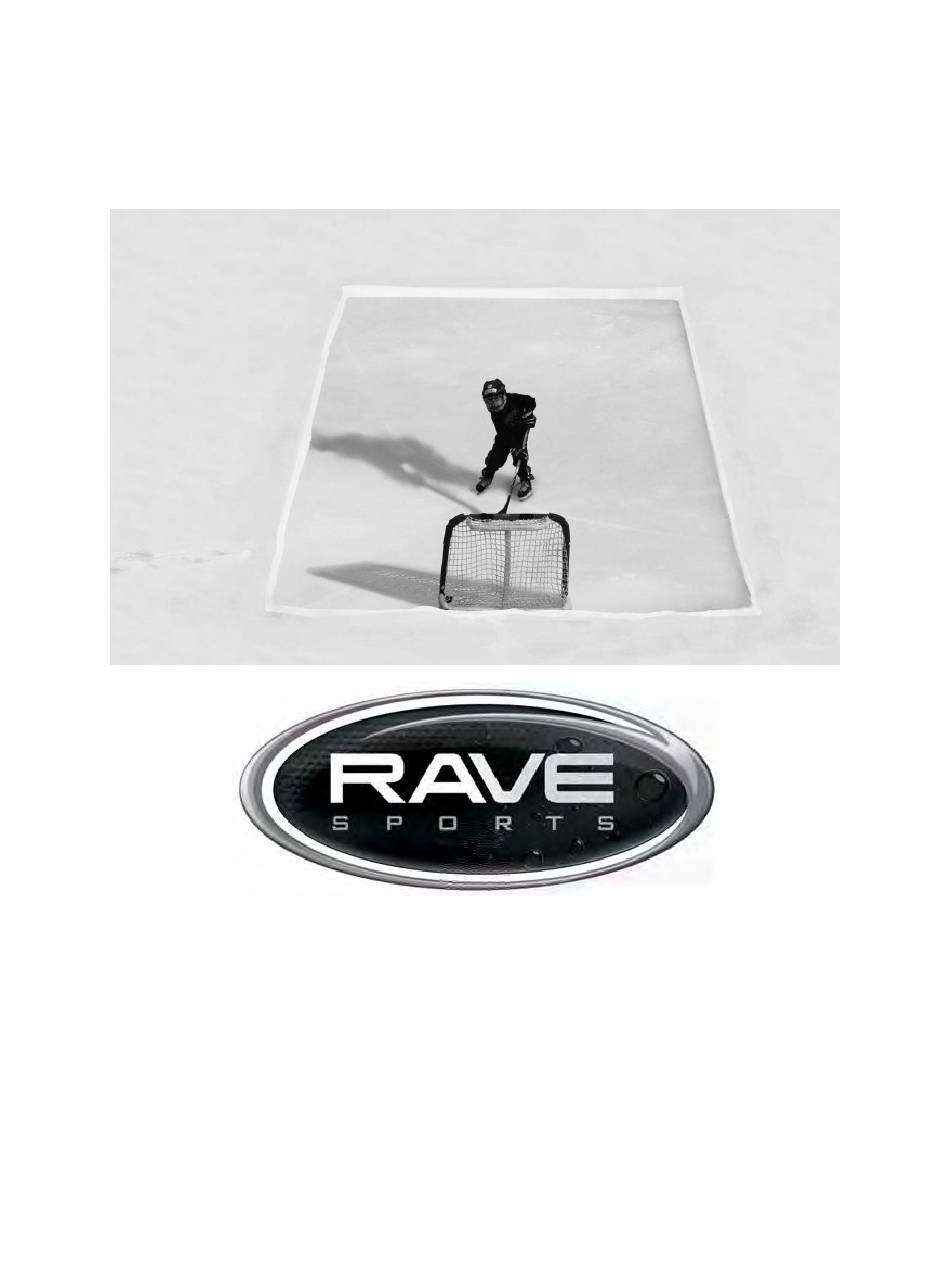

EZ Set Ice Rink- 200 & 400
Owner's Manual
WWW.RAVESPORTS.COM
Copyright © 2017
All rights reserved. No part of this publication may be reproduced or transmitted in any
form or by any means, electronic or mechanical, including photocopy, recording, or any
information storage and retrieval system, without permission in writing from the
publisher. Requests should be mailed to RAVE Sports, 985 Aldrin Drive #301 Eagan,
MN 55121. 800.659.079

Advertisement

loading
Need help?

Need help?

Do you have a question about the EZ Set Ice Rink 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rave Sports EZ Set Ice Rink 200

Summary of Contents for Rave Sports EZ Set Ice Rink 200

  • Page 1 Requests should be mailed to RAVE Sports, 985 Aldrin Drive #301 Eagan, MN 55121. 800.659.079...
  • Page 2 First Ice………………………………………...………………………8 Resurfacing & Removal……………...…………………………..…10 Cleaning and maintenance……………………….………….……..11 PARTS The RAVE EZ Set Ice Rink 200 includes: • (1) 10 ft x 20ft Ice Rink Liner • (4) Corner Screw Stakes • (12) Pivoting Side Support Brackets • Self Adhesive Repair Patches...
  • Page 3 WARNING: Read these materials prior to assembling and using your RAVE Sports product. Failure to follow these instructions could result in serious injury or death. • Set up and supervision must be done by a mature and knowledgeable adult • Ensure proper set up prior to use •...
  • Page 4 W A R N I N G • THIS PRODUCT IS ONLY FOR USE ON SNOW / LAND AND OUTDOORS. DO NOT USE ON WATER OR ICE-COVERED PONDS, LAKES, RIVERS OR POOLS. • ALWAYS INSPECT ICE FOR THICKNESS BEFORE USE, AND DO NOT USE IF REPAIR IS NEEDED OR UNSAFE CONDITIONS SUCH AS CRACKS, IRREGULARITIES, OR THIN ICE IS EVIDENT.
  • Page 5 Placement Consider the following when choosing where to set up and place your RAVE EZ Set Ice Rink: • Site suitability: Place your unit on the most level area possible free from any sharp objects or rocks. Slope should be less than 2 inches over 10 feet. Place your unit a minimum of 6 feet away from any trees, rocks, or other structures.
  • Page 6 • Convenience: Place your unit where it can be easily supervised. • Water source: Place your unit where you can easily fill and resurface your EZ Set Ice Rink with tap or well water. NOTE: When using a hose in cold weather do not leave it outside after use.
  • Page 7 Having a firm, level ground will provide more even flow and distribution of water across the liner and ultimately a more consistent thickness of ice throughout the rink. 2. Carefully spread out the liner on the ground. 3. Stake your first corner into the ground with a Corner Screw Stake, by inserting the Screw Stake into the sleeve pocket on the corner of the liner.
  • Page 8 NOTE: Bracket must be on the outside of liner wall as shown below. Brackets may feel loose until there is a certain amount of water weight pressing down onto the base of the bracket 5. Adjust brackets periodically as you are icing the rink to ensure they are standing vertical and the liner is tight into the corners of the brackets.
  • Page 9 FIRST ICE The optimum temperature for freezing your rink is 20 to 30° F (-6 to -1°C). Begin filling with water, but DO NOT FILL IT ENTIRELY AT ONCE. Add water in increments, as smooth ice is created by freezing many thin layers (less than ¼ inch at a time). Attempting to create thick ice at once will result in trapped air bubbles and a bumpy surface.
  • Page 10 create a dangerous and immovable obstacle. Remove any leaves or other debris prior to use or resurfacing. When you have achieved skate-ready ice, remove the 4 Corner Screw Stakes, and unclip and fold down all Pivoting Side Support Brackets. These brackets can be left in place and then tipped back up to support the liner when...
  • Page 11 RESURFACING Adding more water to the surface of your RAVE EZ Set Ice Rink and allowing it to freeze will refresh the ice surface smoothly. It is recommended that you avoid resurfacing your ice until late in the afternoon or at night after you are done skating for the day.
  • Page 12 RAVE Sports directly. During Use RAVE Sports recommends that you occasionally scrape the surface of the ice with a plastic snow shovel (metal shovels do not work as well) to remove snow, ice chips, and other items as needed.
  • Page 16 WWW.RAVESPORTS.COM RAVE SPORTS A Revel Match, LLC Company 985 Aldrin Drive #301 Eagan MN, 55121 800.659.0790 June 2017...
