INSTALLATION & OPERATING INSTRUCTIONS
LO-PROFILE SPA DRAIN FILL VALVE (600-9101)

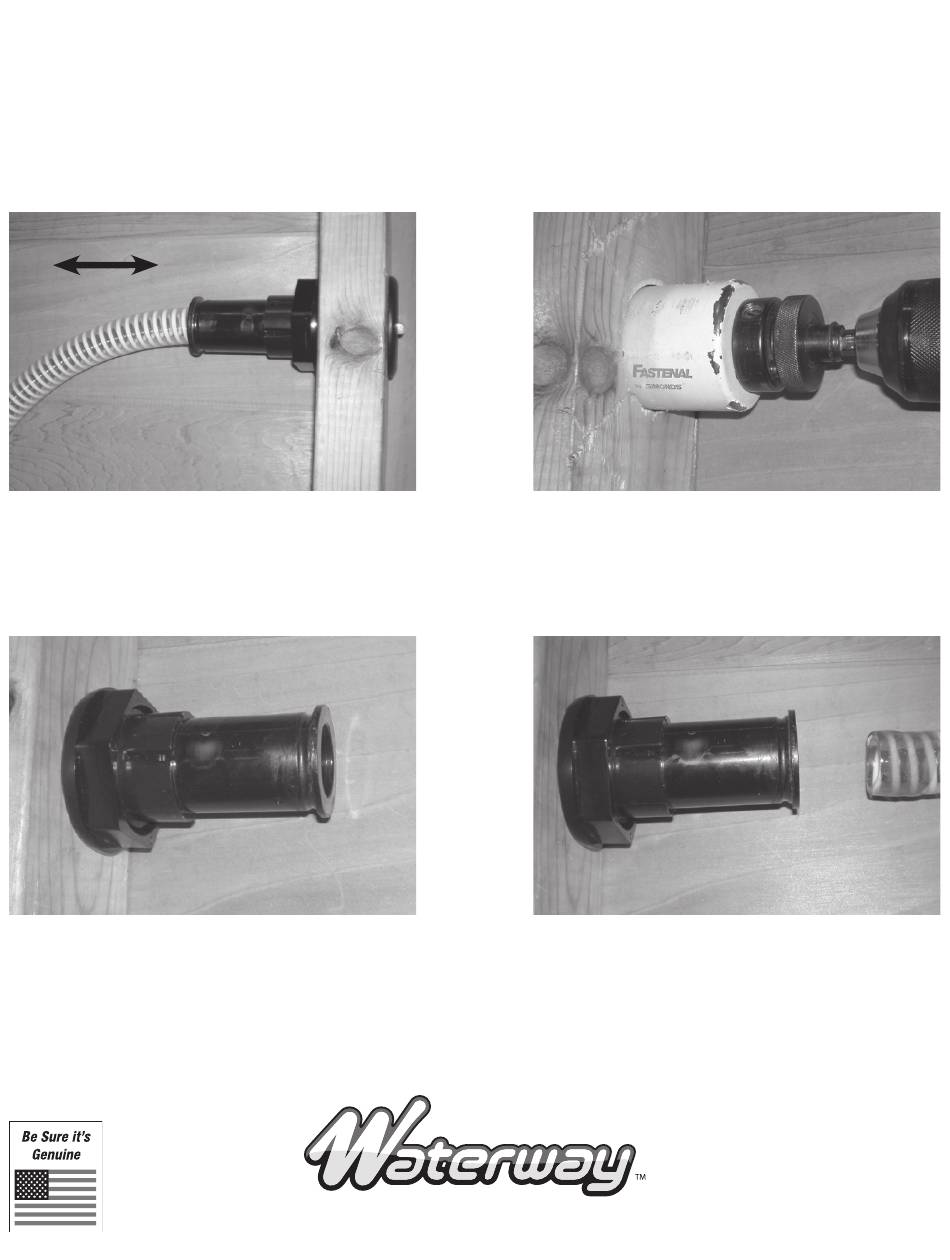

1. Find a place around the lower perimeter of the spa where the
drain can be installed. The hose on the back must be allowed to
travel several inches back and forth freely.
3. Slide the body of the spa drain through the hole and secure
with the nut. Silicone can be added to the threads to prevent the
nut from backing off.
© 2009 Waterway Plastics
2200 East Sturgis Road, Oxnard, CA 93030 • Ph. (805) 981-0262 • Fax (805) 981-9403
www.waterwayplastics.com • waterway@waterwayplastics.com
2. Mark where the drain is to be positioned and using a 2" hole
saw, drill a hole through the spa wall.
4. The spa drain is designed to be used with ¾" spa flex hosing.
Cut the flex pipe long so that it can travel back and forth freely
with spa drain internal then glue it into the back of the spa drain
using the proper PVC sealant.
810-0187.1009
