Waterway 210-3710 Installation Instructions

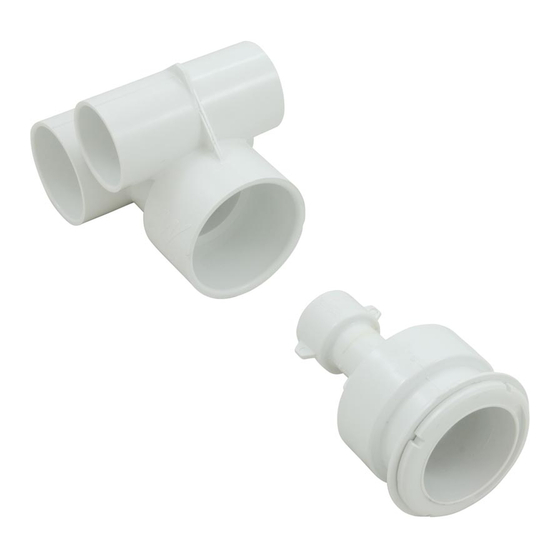

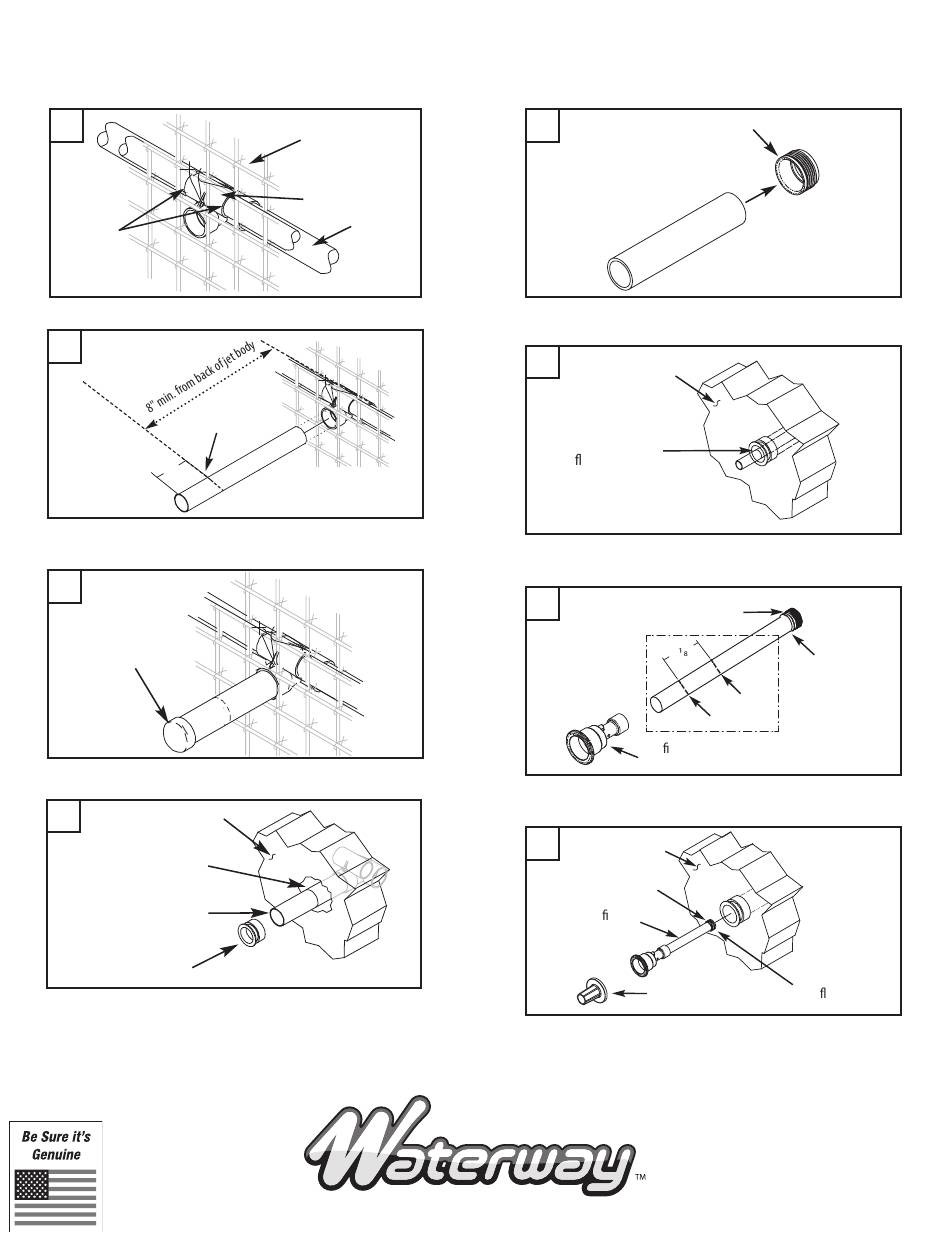

2 ½" POLY STORM GUNITE JET (210-3710)
INSTALLATION INSTRUCTIONS AND PRESSURE TESTING
1
Ties
1. Hang Poly Storm Gunite Jet Body with ties through preset holes onto steel rebar.
2
Estimated Length
4"
2. Estimate needed length of 2 ½" PVC pipe by thickness of wall. Cut 2 ½" PVC pipe at least 4"
longer than estimated finish length. Then glue 2 ½" PVC pipe to body.
3
2 ½" Cap
3. Glue 2 ½" cap onto end of pipe for pressure test before guniting.
4
Gunite Wall
Chip out wall
around pipe
2 ½" PVC Pipe
SCH 40
Gunite Poly Jet Niche
(425-5030)
4. While guniting, scoop out gunite around the 2 ½" PVC pipe, allowing for the plaster niche
(425-5030) (not included). Before plastering, cut the 2 ½" pipe so that the plastic niche will
fit flush with the finished wall. Glue the plaster niche onto the pipe, then cover the niche with
tape for plastering.
© 2009 Waterway Plastics
Steel Rebar
Body
(211-3060)
2" Water
2200 East Sturgis Road, Oxnard, CA 93030 • Ph. (805) 981-0262 • Fax (805) 981-9403
www.waterwayplastics.com • waterway@waterwayplastics.com
5
5. Cut a piece of 1" PVC pipe a couple of inches longer than the 2 ½" pipe and glue the threaded
retainer ring to it.
6
Wall
Mark 1" PVC pipe
ush with wall
6. Insert 1" PVC pipe through the niche and up to the Poly Storm Gunite jet body and thread in
until it bottoms out. Make a mark on the 1" PVC pipe flush with the gunite niche.
7
Wall tting
(215-1090)
7. Unscrew 1" PVC Pipe from the body and cut 4 1⁄8" inward from the mark towards retainer ring,
then glue wallfitting to 1" PVC pipe.
8
Wall
Retainer Ring
(219-1060)
Wall tting
Assembly
Poly Storm Jet Wrench
8. Wrap Teflon tape onto the threaded retainer ring and thread the 1" PVC pipe back into the
body using a Poly Storm Gunite Wrench (218-1790), making sure of a snug fit.
Retainer Ring
(219-1060)
Retainer Ring
(219-1060)
4 ⁄ "
Retainer O-Ring
(805-0215)
Make
cut here
Mark line
from step 5
Wrap Te on Tape
(218-1790)
