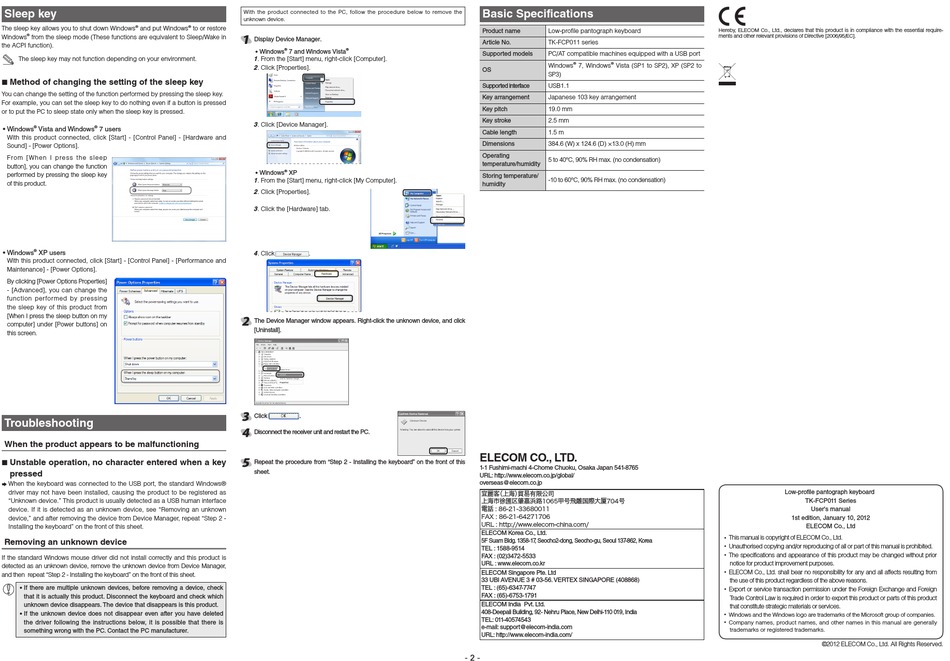

Elecom TK-FCP011 series User Manual page 2

Sleep key
®
The sleep key allows you to shut down Windows and put Windows
Windows ® from the sleep mode (These functions are equivalent to Sleep/Wake in
the ACPI function).
The sleep key may not function depending on your environment.
Method of changing the setting of the sleep key
„
You can change the setting of the function performed by pressing the sleep key.
For example, you can set the sleep key to do nothing even if a button is pressed
or to put the PC to sleep state only when the sleep key is pressed.
® ®
• Windows Vista and Windows 7 users
With this product connected, click [Start] - [Control Panel] - [Hardware and
Sound] - [Power Options].
From [When I press the sleep
button], you can change the function
performed by pressing the sleep key
of this product.
®
• Windows XP users
With this product connected, click [Start] - [Control Panel] - [Performance and
Maintenance] - [Power Options].
By clicking [Power Options Properties]
- [Advanced], you can change the
function performed by pressing
the sleep key of this product from
[When I press the sleep button on my
computer] under [Power buttons] on
this screen.
Troubleshooting
When the product appears to be malfunctioning
Unstable operation, no character entered when a key
„
pressed
 When the keyboard was connected to the USB port, the standard Windows®
driver may not have been installed, causing the product to be registered as
"Unknown device." This product is usually detected as a USB human interface
device. If it is detected as an unknown device, see "Removing an unknown
device," and after removing the device from Device Manager, repeat "Step 2 -
Installing the keyboard" on the front of this sheet.
Removing an unknown device
If the standard Windows mouse driver did not install correctly and this product is
detected as an unknown device, remove the unknown device from Device Manager,
and then repeat "Step 2 - Installing the keyboard" on the front of this sheet.
• If there are multiple unknown devices, before removing a device, check
that it is actually this product. Disconnect the keyboard and check which
unknown device disappears. The device that disappears is this product.
• If the unknown device does not disappear even after you have deleted
the driver following the instructions below, it is possible that there is
something wrong with the PC. Contact the PC manufacturer.
With the product connected to the PC, follow the procedure below to remove the
unknown device.
®
to or restore
Display Device Manager.
• Windows ® 7 and Windows Vista ®
1 . From the [Start] menu, right-click [Computer].
2 . Click [Properties].
3 . Click [Device Manager].
• Windows ® XP
1 . From the [Start] menu, right-click [My Computer].
2 . Click [Properties].
3 . Click the [Hardware] tab.
4 . Click .
The Device Manager window appears. Right-click the unknown device, and click
[Uninstall].
Click .
Disconnect the receiver unit and restart the PC.
Repeat the procedure from "Step 2 - Installing the keyboard" on the front of this
sheet.
Basic Specifications
Product name Low-profile pantograph keyboard
Article No. TK-FCP011 series
PC/AT compatible machines equipped with a USB port
Supported models
Windows ® 7, Windows ® Vista (SP1 to SP2), XP (SP2 to
OS
SP3)
USB1.1
Supported interface
Key arrangement Japanese 103 key arrangement
Key pitch 19.0 mm
2.5 mm
Key stroke
Cable length 1.5 m
Dimensions 384.6 (W) x 124.6 (D) ×13.0 (H) mm
Operating
5 to 40°C, 90% RH max. (no condensation)
temperature/humidity
Storing temperature/
-10 to 60°C, 90% RH max. (no condensation)
humidity
ELECOM CO., LTD.
1-1 Fushimi-machi 4-Chome Chuoku, Osaka Japan 541-8765
URL: http://www.elecom.co.jp/global/
overseas@elecom.co.jp
宜麗客 （上海） 貿易有限公司
上海市徐匯区肇嘉浜路1065甲号飛雕国際大厦704 号
電話 : 86-21-33680011
FAX : 86-21-64271706
URL : http://www.elecom-china.com/
ELECOM Korea Co., Ltd.
5F Suam Bldg. 1358-17 , Seocho2-dong, Seocho-gu, Seoul 137-862, Korea
TEL : 1588-9514
FAX : (02)3472-5533
URL : www.elecom.co.kr
ELECOM Singapore Pte. Ltd
33 UBI AVENUE 3 # 03-56. VERTEX SINGAPORE (408868)
TEL : (65)-6347-7747
FAX : (65)-6753-1791
ELECOM India Pvt. Ltd.
408-Deepali Building, 92- Nehru Place, New Delhi-110 019, India
TEL: 011-40574543
e-mail: support@elecom-india.com
URL: http://www.elecom-india.com/
- 2 -
Hereby, ELECOM Co., Ltd., declares that this product is in compliance with the essential require-
ments and other relevant provisions of Directive [2006/95/EC].
Low-profile pantograph keyboard
TK-FCP011 Series
User's manual
1st edition, January 10, 2012
ELECOM Co., Ltd
• This manual is copyright of ELECOM Co., Ltd.
• Unauthorised copying and/or reproducing of all or part of this manual is prohibited.
• The specifications and appearance of this product may be changed without prior
notice for product improvement purposes.
• ELECOM Co., Ltd. shall bear no responsibility for any and all affects resulting from
the use of this product regardless of the above reasons.
• Export or service transaction permission under the Foreign Exchange and Foreign
Trade Control Law is required in order to export this product or parts of this product
that constitute strategic materials or services.
• Windows and the Windows logo are trademarks of the Microsoft group of companies.
• Company names, product names, and other names in this manual are generally
trademarks or registered trademarks.
©2012 ELECOM Co., Ltd. All Rights Reserved.
