Customer Documentation DEV 281x, DEV 285x
3.1

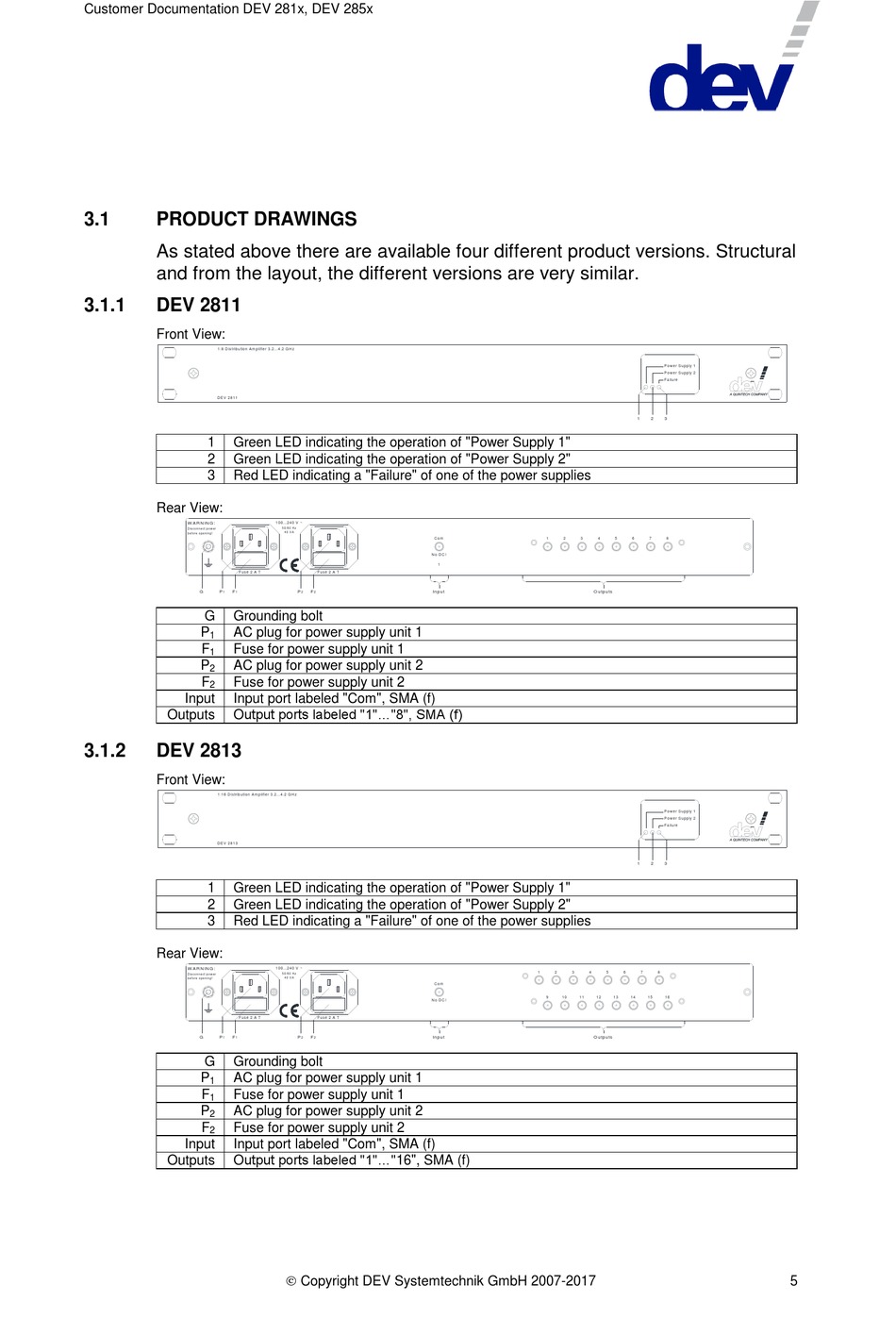

PRODUCT DRAWINGS

As stated above there are available four different product versions. Structural
and from the layout, the different versions are very similar.
3.1.1

DEV 2811

Front View:
1 :8 D is trib u tio n A m p lifie r 3 .2 ...4 .2 G H z
D E V 2 8 1 1
1 Green LED indicating the operation of "Power Supply 1"
2 Green LED indicating the operation of "Power Supply 2"
3 Red LED indicating a "Failure" of one of the power supplies
Rear View:
W A R N IN G :
D is co n n e c t p o w e r
b e fo re o p e n in g !
F u s e 2 A T
G P F
1 1
G Grounding bolt
P AC plug for power supply unit 1
1
F Fuse for power supply unit 1
1
P AC plug for power supply unit 2
2
F Fuse for power supply unit 2
2
Input Input port labeled "Com", SMA (f)
Output ports labeled "1"..."8", SMA (f)
Outputs
3.1.2

DEV 2813

Front View:
1 :1 6 D istrib u tio n A m p lifie r 3 .2 ...4 .2 G H z
D E V 2 8 1 3
1 Green LED indicating the operation of "Power Supply 1"
2 Green LED indicating the operation of "Power Supply 2"
3 Red LED indicating a "Failure" of one of the power supplies
Rear View:
W A R N IN G :
D is co n n e c t p o w e r
b e fo re o p e n in g !
F u s e 2 A T
G P F
1 1
G Grounding bolt
P AC plug for power supply unit 1
1
F Fuse for power supply unit 1
1
P AC plug for power supply unit 2
2
F Fuse for power supply unit 2
2
Input Input port labeled "Com", SMA (f)
Output ports labeled "1"..."16", SMA (f)
Outputs
1 0 0 ...2 4 0 V ~
5 0 /6 0 H z
4 0 V A
C o m
N o D C !
1
F u s e 2 A T
P F In p u t
2 2
1 0 0 ...2 4 0 V ~
5 0 /6 0 H z
4 0 V A
C o m
N o D C !
F u s e 2 A T
P F In p u t
2 2
 Copyright DEV Systemtechnik GmbH 2007-2017
P o w e r S u p p ly 1
P o w e r S u p p ly 2
F a ilu re
1 2 3
1 2 3 4 5 6 7 8
O u tp u ts
P o w e r S u p p ly 1
P o w e r S u p p ly 2
F a ilu re
1 2 3
1 2 3 4 5 6 7 8
9 1 0 1 1 1 2 1 3 1 4 1 5 1 6
O u tp u ts
5
