Green Transporter Q Pod Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Q Pod
Owners Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q Pod and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Green Transporter Q Pod

Summary of Contents for Green Transporter Q Pod

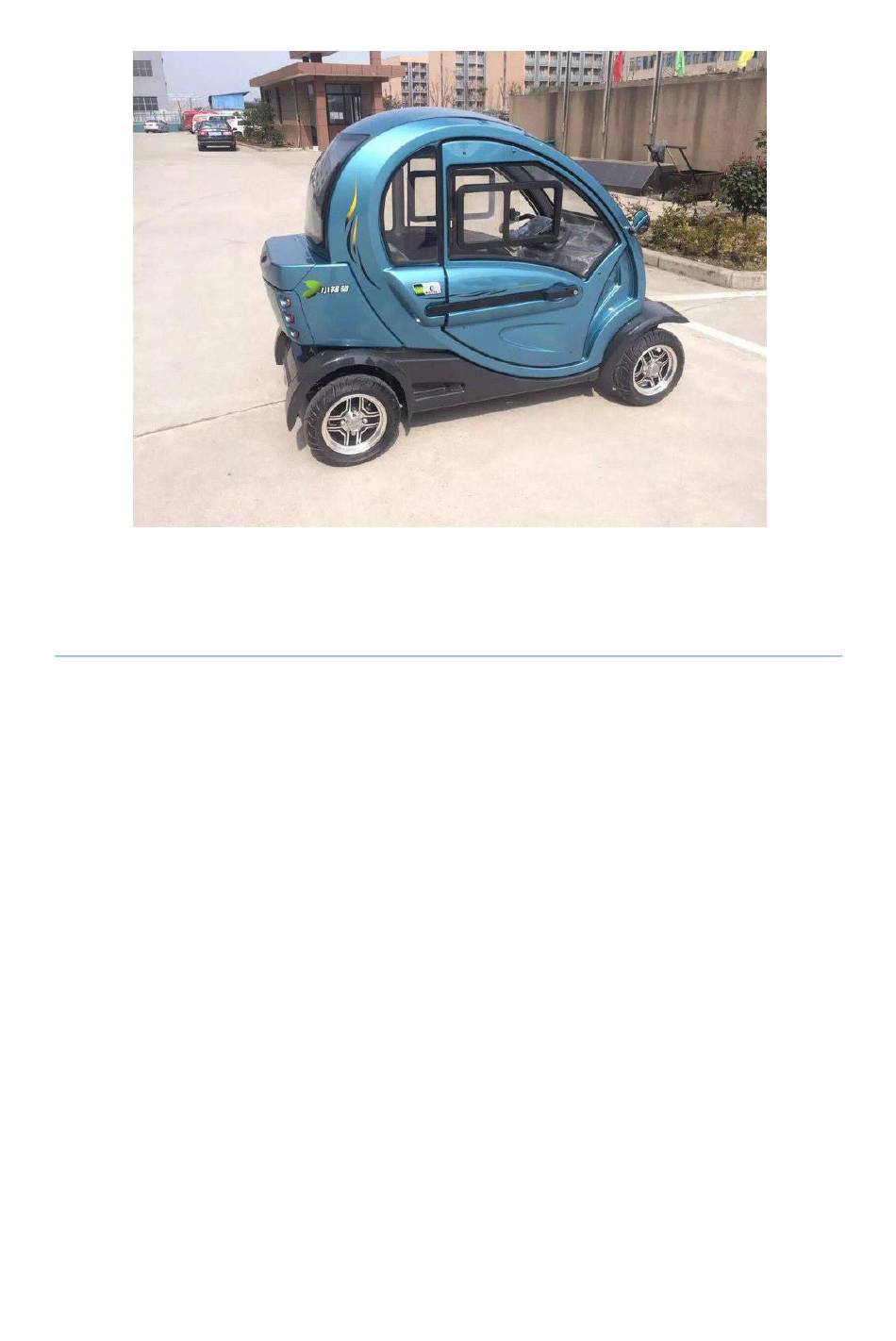

  • Page 1 Q Pod Owners Manual...
  • Page 2 Q-Pod FOREWORD Thank you for choosing our Q-Pod. Before driving, please read this manual to know your vehicle well. All data referred in this manual is up to the minute. As we are constantly updating our vehicles, this manual may be renewed without immediate notice. Note: optional equipment are also described in this manual.

  • Page 3: Section 1 Important Note

    Section 1 Important note ■ This signal note the best way to use your vehicle. This signal with warning information, please read it carefully to avoid damaging vehicle and for your and your family safety. This signal is safety warning, means “can not”, “can not do that...” or “can not make”.
  • Page 4 Vehicle instruction Pic-2 1, Rear Window 2, Rear combination lamp 3, Rear glove box Dash board Pic 1, Steering wheel 2, Left handle grip 3, Switch of headlight 4, Emergency lamp 5, Wiper switch 6, Door handle 7, Meter board 8, Gearshift switch 9,Right throttle grip 10, Main switch 11, Brake pedal Seat Pics 1, Rear seat...

  • Page 5: Section 3 Start And Driving

    Section 3 Start and driving Start note ■ Make sure the charger has been unplugged; ■ Key on motor, make sure every indicator and signal lamps are normal. Start Procedure (1) Turn on ignition switch, meter and indicator self-inspection; (2) Shift to D or R position; (3) Release parking handle, turn throttle grip gently.
  • Page 6 sidewalk, jam the wheel by stone or block. C. Please take keys away if leave the vehicle, press emergency switch and lock all doors, please try to park your vehicle on lighting place. Brake system (1) All of brake system parts are safety parts, so please maintain your vehicle in after-sale service center.
  • Page 7 feel the brake pedal too light or travel too large, please go to after-sale service center to inspect brake system or adjust the brake pedal. (7) Please check the battery and cable, battery capacity will be low in cold weather. Running-in period suggestion (1) In first 300 miles running-in period, please drive in slow speed to extend vehicle life with good economy and power.

  • Page 8: Section 4 Meter And Control Device

    the service life of the battery, maybe will cause the battery scrap. (6) When battery energy is exhausted, system will automatically cut power off. But after that, the battery will rebound “virtual” voltage(voltage without power), so need to charge before using, otherwise it will cause excessive battery discharge, it will damage battery and can not be repaired.
  • Page 9 switch and indicator does not work, please inspect the fuse, bulb and flash relay. Press emergency switch, two indicators will flash at the same time. High beam indicator: If this indicator lights means headlight lights. Battery power warning indicator: Turn key to “ ON”, when the battery voltage is lower than a certain value in driving, the red battery power indicator lights, at this time, battery need to charge timely.

  • Page 10: Section 5 Emergency

    b.Turn signal After turning on tuning signal switch( key at “ ON” position), turning lamp will flash, turning indicator will flash at the same time. c. Horn button Push the horn button, the horn will work loudly to warn other vehicles or walker.
  • Page 11 (3) Tire blow-out The tire was punctured and need to replace, firstly must comply with the safety precautions: turn on the emergency lamp. Park the vehicle in the non traffic routes and on the flat ground, make sure not to hurt you and damage vehicles. Tighten the parking brake, shift reverse gear, turn off the power, don’t replace the tire on a slope or a bumpy road, because its very dangerous.
  • Page 12 4. Towing by tractor (1) Wrong traction method Can not use the method as shown in Pic(type A) tows vehicle by slings, using slings will damage the front bumper and front structure (2) Correct traction method a.If the vehicle must be towed over 50 km, all wheels must be off the ground(type B or C), as shown in Pic.

  • Page 13: Section 6 Clean And Maintenance

    Section 6 Clean and maintenance 1. Inspection (1) Brake liquid Timely check the brake fluid level between the highest mark(MAX) and the lowest mark( MIN). If you need to replenish liquid, only can use DOT4 synthetic brake fluid. Note: The brake fluid will absorb moisture. Therefore, if the vehicle is used in the humidity higher area most of the time, brake fluid replacement frequency should be faster than usual, please go to service center to inspect and replenish brake fluid.
  • Page 14 instructions. Some fiber protector containing chemical agents, will make the seat leave stains or fade. Never use gasoline, thinner or other solvents. In the process of cleaning vehicle, the cab is strictly prohibited to flush water directly, should avoid water flows into the boy of the charging socket. Prohibited the use of high-pressure water rinse chassis parts, so as to avoid internal electronic components and circuit accidents caused by wet.
  • Page 15 requirements. In the daily use of the vehicle, should be regularly carried out general maintenance, if you are aware of any abnormal sound, vibration or smell, must check the reason or let service center inspect your vehicle quickly. In addition, if you think that your vehicle needs repairing, please contact with service center in time.
  • Page 16 Periodically, the maintenance is your responsibility. (2) The initial compulsive grinding maintenance In the early of 300/1000 miles compulsory maintenance is one of the most important maintenance, ensure your vehicle to achieve the best state is very important. (3) Where to do regular maintenance and repair Every 1500 miles for regular maintenance period.
  • Page 17 8. Battery charging method (1) The following preparations should be performed before charging: a.Check the charging equipment, instruments and tools, shall timely prepare or repair them if there is a lack of or failure. b.Must turn off the key. c.Must use specified charger to charge and avoid damage the battery. d.Open the charging protective cover.

  • Page 18: Section 7 Parameter And Specifications

    maintenance. You can believe that the authorized service center can meet the vehicle in the reliability and economy of maintenance requirements with best job. Section 7 Parameter and specifications Vehicle verification (1) Vehicle identification number (VIN) VIN is a unique 17 bit code to identify vehicle body method.
  • Page 19 Parameter Model No.: Q-Pod Body Size: L*W*H 2133*900*1495mm Wheelbase: 1515mm Tread (Front/Rear): 720mm/720mm Body Min Ground Clearance: 150mm Kerb Mass 230 KG Seats Motor Type 60V1000W Brushless DC Motor Battery Type Maintenance Free Lead-Acid Power Battery Capacity 60V32AH Charger Type 60V5A intellectualized Charging Voltage 110V-220V...
