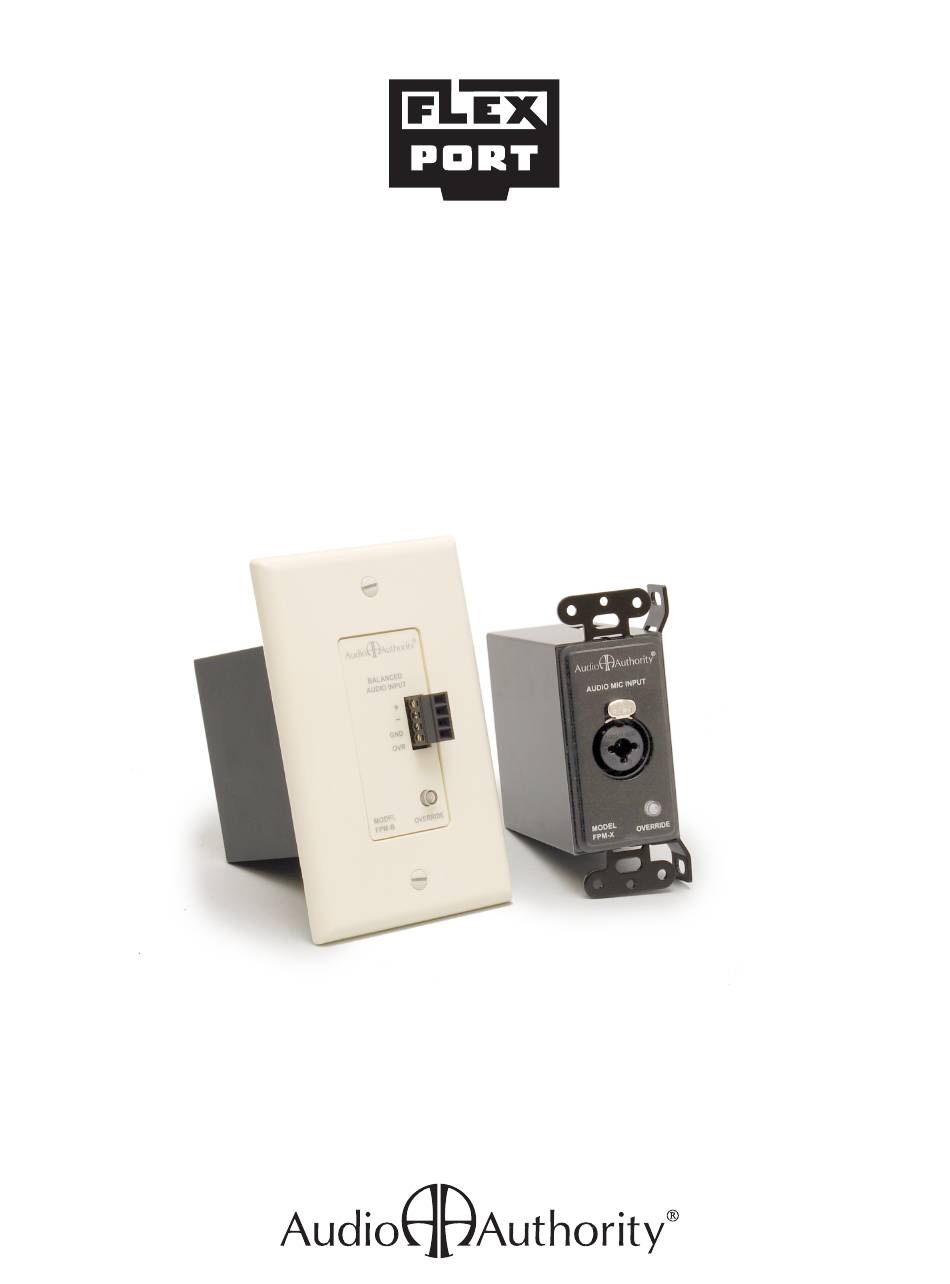

- Page 1 Audio Input Transmitters For Use with SonaFlex™ Matrix Amplifiers Installation and Operation Guide...
- Page 2 Introduction FlexPort™ Audio Transmitters serve as remote input modules for SonaFlex™ SF-16M Matrix Amplifiers. FlexPort transmitters are available in several different styles . Audio signals are transmitted to an SF-16M via Cat 5e/6/7 cable up to 500 feet and made available to specified amplified outputs, and can be shared with up to three additional SF-16M amplifiers.
- Page 3 7/29/11 A Release 11/15/11 B Remove IR BALANCED FlexPort Transmitter Models AUDIO INPUT FlexPort audio transmitters can be used to provide up to four additional audio inputs (2 channels per FlexPort input) to each SF-16M. FlexPort modules connect via Cat 5 cable to the SF-16M and accept a wide variety of pro and consumer audio sources.
- Page 4 Understanding the FlexPort Audio Bus Each SF-16M FlexPort input supports: • Two channels of audio - input can be either stereo or two mono channels (allows two FlexPort transmitters per bus) • RS-485 data pathway - provides 2-way communication between the SF-16M and all connected FlexPort modules • 18V power - provides power for up to two FlexPort modules on a single bus FlexPort Override In addition to the 10 overrides available in the SF-16M, there is an override command for each channel on each FlexPort...
- Page 5 Rear Panel Connections and Settings FPM-B and FPM-X FPM-B and FPM-X FlexPort Bus In - Connects via Cat 5 to the FlexPort “Bus Out” of another FPM in linked scenarios FLEXPORT FLEXPORT FlexPort Bus Out - Connects via Cat 5 to a SF-16M “FlexPort In” or in linked configurations to the “Bus In”...
- Page 6 BALANCED AUDIO INPUT AUDIO INPUT FlexPort Override Button DATE LTR REVISION RECORD AUTH DATE LTR REVISION The override button on a FlexPort front panel is used to switch designated SF-16M outputs to a FlexPort input. When 11/15/11 P1 Prototype 7/29/11 A Release 7/29/11 A Release...
-
Page 7: Troubleshooting Guide
CAUTION: Do not connect Ethernet to FlexPort SF-16M FlexPorts AUDIO SYSTEM OVERRIDE TRIGGER UNIT ID LINK Audio Authority® Corp. • 2048 Mercer Rd. Lexington, KY 40511 USA SPEED ETHERNET Model SF-16M 16-Channel 800-322-8346 • 859-233-4599 • www.audioauthority.com Digital Matrix Amplifier 4002715 RS-232 IN... -
Page 8: Limited Warranty
If this product fails due to defects in materials or workmanship within two years from the date of the original sale to the end-user, Audio Authority guarantees that we will repair or replace the defective product at no cost. Freight charges for the replacement unit will be paid by Audio Authority (Ground service only).
