Congratulations on your purchase of an Arnott
to offer a high quality product at the industry's most competitive pricing. Thank you for your confidence in us
Proper installation is essential to experience and appreciate the benefits of this system. Please take a moment
to review these installation instructions before you begin to install these components on your vehicle. The
removal and installation of air suspension products should only be performed by a fully qualified, ASE
It is equally important to be aware of all necessary safety measures while installing your new Air Suspension
System. This includes proper lifting and immobilizing of the vehicle and isolation of any stored energy to
WARNING: The air suspension system is under pressure (up to 10 bar, or 150 lbf/in). Verify pressure has been relieved
and disconnect power to the air suspension system prior to disassembly. Do not allow dirt or grease to enter the system.
Always wear standard hand, ear, and eye protection when servicing the air suspension system.
KIT CONTAINS:
P/N
21-7097
21-7098
Arnott
is committed to the quality of its products. If you have a question or problem with any Arnott product,
®
please contact Arnott by calling 800-251-8993 during normal business hours or email techassistance@arnottinc.com
1
AS-2715
ARNOTT PASSIVE
REAR AIR SHOCK
2000-2013
FOR
air suspension product. We at Arnott Incorporated are proud
®
and our product.
Certified, professional.
prevent personal injury or property damage.
"Engineered to Ride, Built to Last

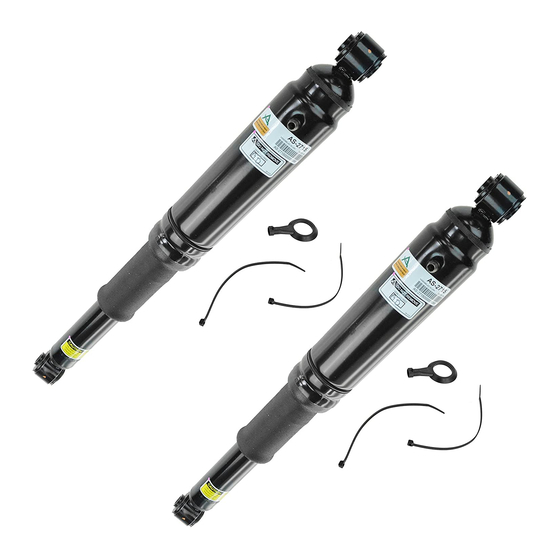

PARTS LIST
QTY
1
1
2715
AS-
VARIOUS GM SUVs
DESCRIPTION
ARNOTT PASSIVE REAR AIR SHOCK
ACCESSORY KIT
"
™
REV 1
05/13/2014
Advertisement
Table of Contents
Related Manuals for Arnott AS-2715
Summary of Contents for Arnott AS-2715
- Page 1 ARNOTT PASSIVE REAR AIR SHOCK 21-7098 ACCESSORY KIT Arnott is committed to the quality of its products. If you have a question or problem with any Arnott product, ® please contact Arnott by calling 800-251-8993 during normal business hours or email techassistance@arnottinc.com AS-2715...
- Page 2 2715 ARNOTT PASSIVE REAR AIR SHOCK 2000-2013 VARIOUS GM SUVs GENERAL INFORMATION: Reading this manual signifies your agreement to the terms of the general release, waiver of liability, and hold harmless agreement, the full text of which is available at www.arnottinc.com.
- Page 3 2715 ARNOTT PASSIVE REAR AIR SHOCK 2000-2013 VARIOUS GM SUVs LOCATE AND REMOVE THE AIR LINE TO DEFLATE THE AIR SHOCK. TURN THE METAL CLIP APPROX. 90° TO REMOVE THE AIR LINE FITTING FROM THE AIR SHOCK. (FIGURE 2) FIGURE 2 LOCATE AND REMOVE THE ELECTRICAL CONNECTOR FROM THE TOP OF THE AIR SHOCK.
- Page 4 2715 ARNOTT PASSIVE REAR AIR SHOCK 2000-2013 VARIOUS GM SUVs SUPPORT THE AXLE TO RELIEVE PRESSURE FROM THE AIR SHOCK'S MOUNTING POINTS. REMOVE THE UPPER AND LOWER AIR SHOCK MOUNTING BOLTS. (FIGURE 5) FIGURE 5 REMOVE THE AIR SHOCK FROM THE VEHICLE. (FIGURE 6) FIGURE 6 REMOVAL COMPLETE.
- Page 5 2715 ARNOTT PASSIVE REAR AIR SHOCK 2000-2013 VARIOUS GM SUVs REATTACH AIR LINE. REPLACE REAR WHEEL. INSTALLATION COMPLETE. AS-2715 REV 1 05/13/2014...
