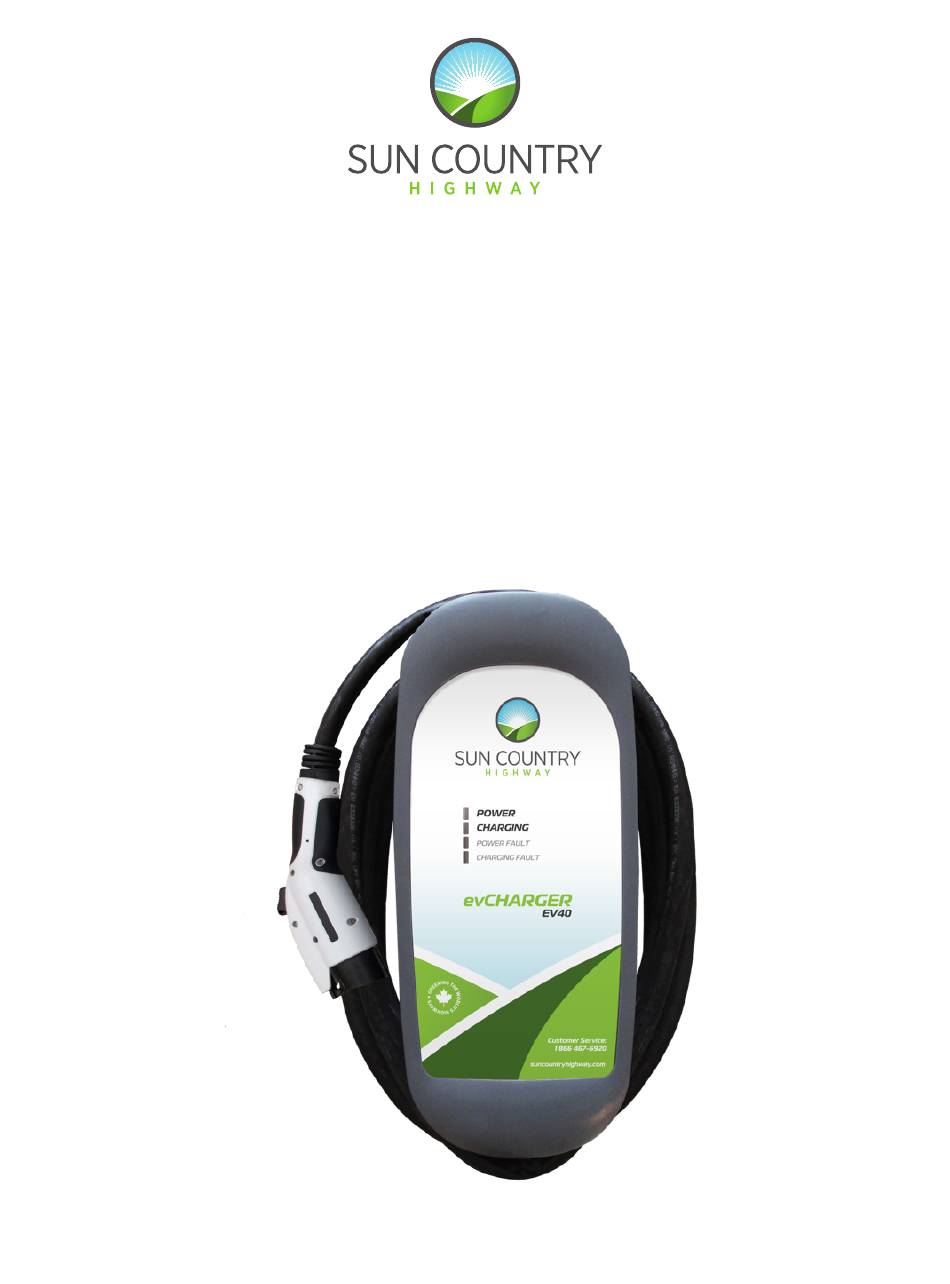

 G R E E N I N G T H E W O R L D ’ S H I G H WAY S User’s Manual EV40...
  • Page 2 PLEASE NOTE This user’s manual includes the latest information at the time of printing. Sun Country Highway, Inc. reserves the right to make changes to this product without further notice. Changes or modifications to this product by other than an authorized service facility could void the product warranty.
  • Page 3: Table Of Contents

    CONTENTS IMPORTANT SAFETY INSTRUCTIONS ADDITIONAL SAFETY INFORMATION FCC INFORMATION OPERATION 4
 EV40 FRONT PANEL INSTALLATION 6
 6
 Service Connections Mounting Procedures 14
 Wiring Instructions Grounding Instructions MOVING & STORAGE INSTRUCTIONS MAINTENANCE CUSTOMER SUPPORT SPECIFICATIONS 18
 WARRANTY INFORMATION...
  • Page 4: Important Safety Instructions

    Instructions Pertaining to Risk of Fire or Electric Shock
 When using the EV40, basic electrical safety precautions should be followed: • Use this charge station to charge electric vehicles equipped with a SAE-J1772™
 charge port only. See the vehicle’s owner’s handbook to determine if the vehicle is equipped with a conductive charge port.
  • Page 5 Instructions concernant des risques d' incendie ou de choc électrique
 Lorsque vous utilisation de la EV40, précautions fondamentale sécurité électrique doivent être suivies: • Utilisez cette station de charge pour charger les véhicules électriques équipés d'un SAE J1772™...
  • Page 6: Additional Safety Information

    Note Vehicles which conform to the SAE J1772™ standard for communication with the charging station can inform the charge station that they require an exhaust fan. The EV40 Charger is not equipped to control ventilation fans. Do not charge the vehicle with the EV40 if ventilation is required Remarque: Véhicules qui sont conformes à...
  • Page 7: Fcc Information

    Normally, the vehicle will immediately request a charge using a special communication line in the cable. Within a few seconds the green ‘Charging’ light on the face of the EV40 will turn on and the charge cycle will begin. After an average driving day the vehicle battery will require a few hours to recharge completely.
  • Page 8: Ev40 Front Panel

    EV40 User’s Manual THE EV40 FRONT PANEL The front panel on the EV40 has four indicator lights: Figure 1. The EV40 Front Panel POWER: (yellow) indicates that power is available to the EV40. CHARGING: (green), indicates that the vehicle is requesting a charge and AC power is currently applied to the vehicle.
  • Page 9: Installation

    être mis à la terre quelque part dans le système. Une connexion neutre n'est pas exigée par le EV40. Seulement ligne 1, ligne 2, et Mise a la Terre sont nécessaires, comme le montre la Figure 3.
  • Page 10 Notice that L1, L2, & Ground are labeled on each diagram. Those transformer outputs correspond to the same inputs on the EV40 Charger. Also, each of the two 3-phase diagrams shows an L3 output, which is not used. Do not connect all three phases of a 3-phase secondary to the EV40 Charger.
  • Page 11 With a wye-connected secondary, any two of the legs can be used to provide 208V to the EV40 Charger. For example, L1 & L2, or L1 & L3, or L2 & L3. Leave the unused leg open. Do not connect it to a Neutral bar, or to Ground. Be sure the center point is grounded to earth somewhere in the system.
  • Page 12 EV40 User’s Manual Figure 4. 240V 3-Phase, Delta-Connected, with center-tap on one leg. Caution: With the delta connection, one leg must be center-tapped, and only the two phases on either side of the center tap can be used. The two phases must both measure 120V to neutral.
  • Page 13: Mounting Procedures

    • Position the bottom of the charge station at a comfortable height and at least 18 inches above the ground. Ensure that the LEDs on the front panel of the EV40 can clearly be seen by anyone who will be operating the device.
  • Page 14 • Size 1/4-20 lag screws are recommended for mounting the EV40 to a wooden structure. Pre-drill approximately sized pilot holes to allow the lag screws to grip the wooden structure while preventing the wood from cracking or splintering while the screw is fastened.
  • Page 15 • Machine screws size 1/4-20 hardware is recommended for mounting the EV40. Screw shafts of at least 2” are recommended. The EV40 plastic angle washer hole size is 3/8” in diameter, so ensure that the screw heads are of a larger diameter. Place appropriately sized washers between the screw heads and the EV40 enclosure mounting flanges.
  • Page 16 Use a ruler or template to mark the hole locations on the mounting surface. The vertical alignment of the EV40 and SAE J1772™connector holster mounting holes • allows for the convenient mounting of both components onto the same post or wall structure.
  • Page 17: Wiring Instructions

    EV40 User’s Manual WIRING INSTRUCTIONS (Hardwired) Route the EV40 conduit to a nearby service panel or junction box. Use the included 1/2” trade sized watertight fitting and sealing washer to provide a moisture-resistant seal with the service panel or junction box. If necessary, drill a 7/8” diameter hole to accommodate the liquid tight fitting.
  • Page 18: Grounding Instructions

    Always turn off input power to the charge station at the circuit breaker panel prior to hardwiring an EV40, or to disconnect an EV40 from the service lines. Likewise, always turn off the the input power to the charge station at the circuit breaker panel before plugging in or unplugging a EV40P from a NEMA socket.
  • Page 19: Maintenance

    EV40 User’s Manual MAINTENANCE The EV40 Charger requires no periodic maintenance other than occasional cleaning. Warning To reduce the risk of electrical shock or equipment damage, exercise caution while cleaning the unit and the EV charge connector cable. 1. Turn off your charge station at the circuit breaker before cleaning.
  • Page 20: Specifications

    The two phases must both measure 120V AC to ground. Do not use the third leg (208V “stinger”). EV40 and EV40P L1, L2, and Safety Ground use 8AWG, 75ºC copper Service Conductors wire.
  • Page 21: Warranty Information

    Representative, its Sub-Representatives and their customers: Product 3-year parts, 3-year factory labor, Sun Country Highway, Inc. warrants this product to be free from defects in material and workmanship. The warrantee period shall commence on the date of installation date (first use).
  • Page 22 Sun Country Highway or an authorized Sun Country Highway representative or dealer has been advised of the possibility of such damages or of any claim by any other party.
  • Page 23 EV40 User’s Manual Sun Country Highway
 306 Saskatchewan Crescent
 Saskatoon, SK S7N 0K6 1-866-467-1371
 info@suncountryhighway.ca Page 20...
