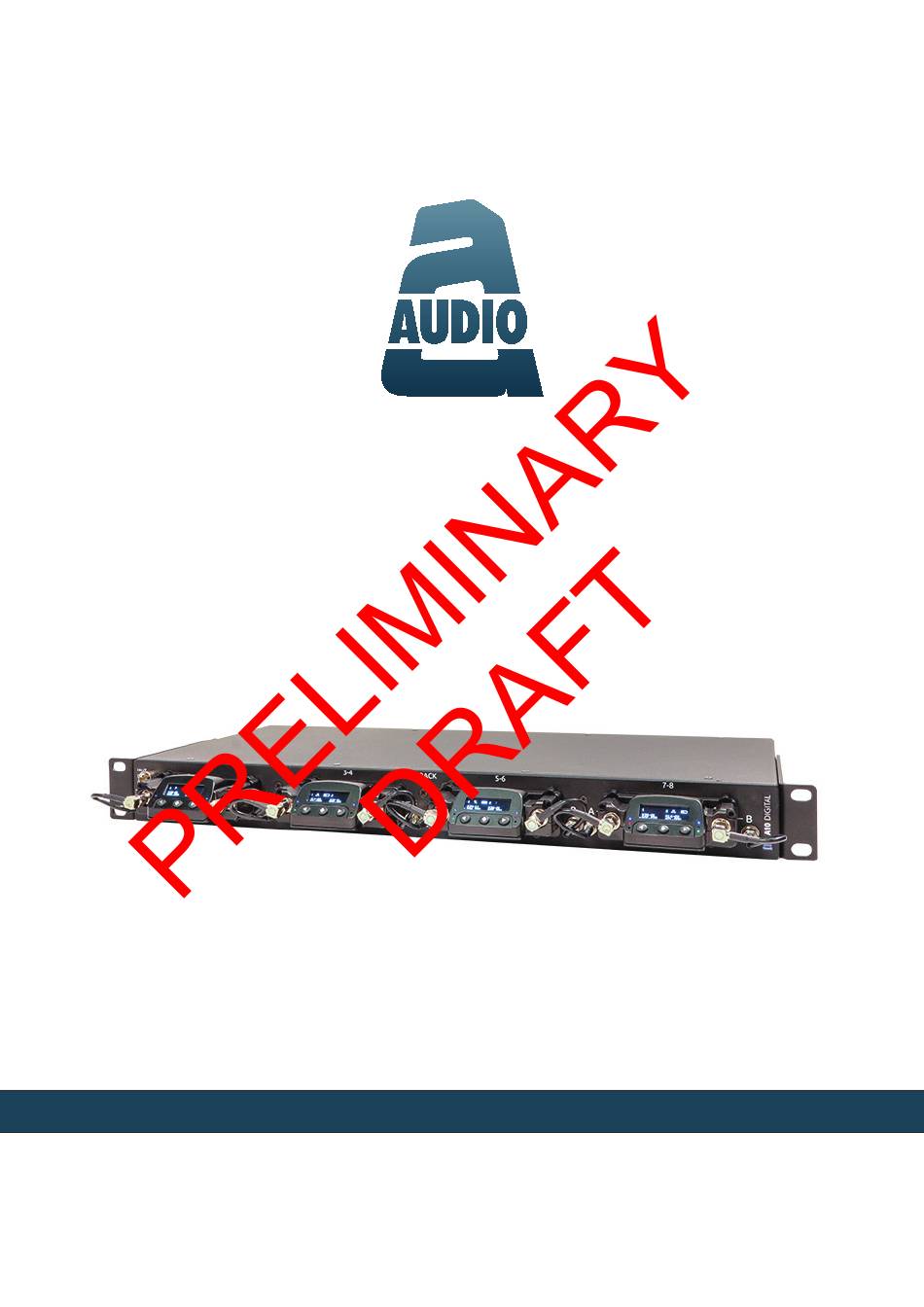

- Page 1 A10-RACK 4-Slot Wireless Enclosure — — User Guide Fits Most Unislot and Superslot Receivers ™...
-
Page 2: Table Of Contents
Compatible Receivers . . . . . . . . . . . . 3 Cascading A10-RACK Units . . . . . . . . . . 8 Panels: Connectors, Controls and More . -
Page 3: Overview
A10-RACK User Guide Overview The A10-RACK is a 4 slot, 8 channel, 1RU wireless microphone receiver enclosure, compatible with most unislot and SuperSlot receivers. The A10-RACK accepts up to 4 dual-channel slot-in ™ receivers, providing a total of 8 separate audio feeds. The A10-RACK provides high-quality an- tenna distribution, power distribution, up to 8 channels of analogue and/or AES digital audio via XLR-M connectors and an 8 channel Dante audio interface. -
Page 4: Panels: Connectors, Controls And More
A10-RACK User Guide Panels: Connectors, Controls and More Figure 1: Full Front Panel of A10-RACK Figure 2: Closeup of Leftmost Slot on Front Panel of A10-RACK 1 -Four Receiver Slots 2 -Antenna Distribution Leads Each slot accepts one (single- or dual- SMA cables (included) are used to channel) 25-pin SuperSlot or unislot receiver. -
Page 5: Rack Mounting
Figures 1, 2 and 3 may be installed in any one of three possible positions to allow the user to set the depth of the front of the A10-RACK to accommodate a rack door or cover. - 5 -... -
Page 6: Powering
The A10-RACK is powered with a standard 4-pin F-XLR 10-18vdc power supply (sold separately), such as the Sound Devices XL-WP4. This power supply should be capable of pro- viding 3A minimum for proper powering of the A10-RACK and the slot receivers (not included). Ground (Pin 1) -
Page 7: Dante
CAT5 or CAT6 cable and standard gigabit switches and hardware to many devices simultaneously. This makes Dante especially attractive for the user of the A10-RACK because all eight channels of audio from the wireless receivers can be transported over a single CAT5 network cable. -
Page 8: Operation
2. Launch the Mic2Wav application. 3. Power on the A10-RACK. 4. Connect the A10-RACK from the USB-B port on the back panel to a USB port on the computer. 5. From within the Mic2Wav application, select File > Update RX and then select the firmware update file (.PRG) to install. -
Page 9: Operational Block Diagram
A10-RACK User Guide 7. Follow any further on-screen prompts. Receivers are updated one at a time. As the receiver is updated, its screen will display ª Programming and the LEDs will turn off. This is normal operation. An Update Complete popup appears after all receivers have been updated. - Page 10 A10-RACK User Guide For further information, contact Audio Ltd or your local distributor Copyright © 2018 Audio Ltd. All rights reserved. | www.audioltd.com 7 Century Court, Tolpits Lane, Watford WD18 9RS, UK | info@audioltd.com - 10 -...
