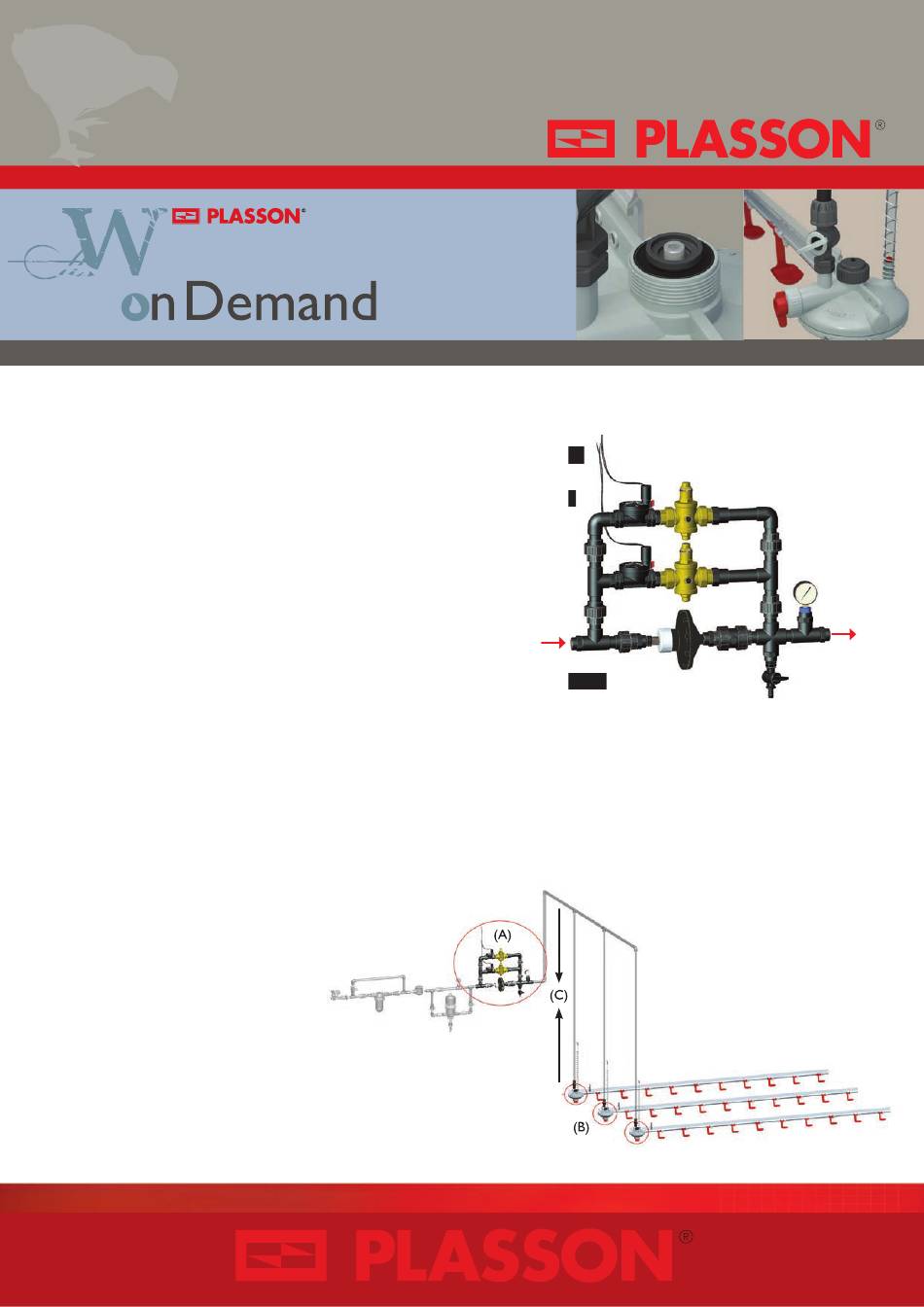

Water On Demand, Installation instructions
General
The Water On Demand system enables pressure regulating of all Nipple lines The Water On Demand system enables pressure regulating of all Nipple lines
in the house from one central point and ensures a uniform pressure in all
Nipple lines. The system also enables immediate transition between different Nipple lines. The system also enables immediate transition between different
preset pressures of all Nipple lines in the house by closing and opening of
valves at this central point (manual or solenoid* according to model).
Immediate transition between pressures enables a few pressure changes
during the day according to drinking requirements of the birds.
* Solenoid operated valves require operation by a controller or electric timer.
Pressure requirement
Inlet pressure to the Water On Demand Control Unit, minimum 2.7 bar (40 psi), Inlet pressure to the Water On Demand Control Unit, minimum 2.7 bar (40 psi),
maximum 10 bar (145 psi).
Regulated outlet pressure from the Water On Demand Control Unit (to the Pressure Reducer on the Nipple Line)
maximum 2.7 bar (40 psi).
Installation

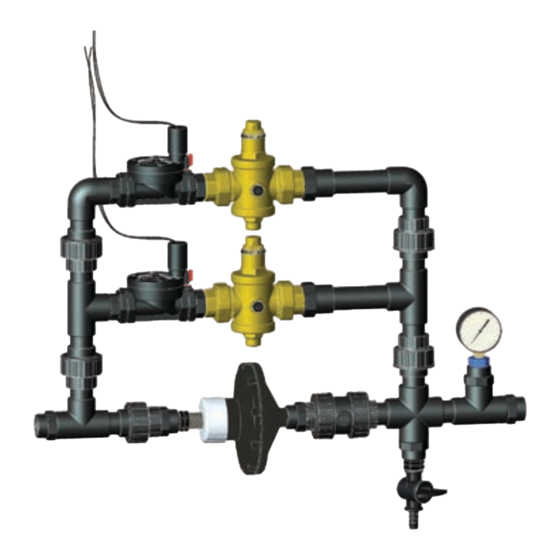

1. Wall unit (A)
• Mount the Water On Demand Wall Unit on the wall at a height enabling convenient operation of the Water On
Demand by the grower.
• Install the Water On Demand downstream in relation to the Filter and medicator or any other device.
• Connect the solenoid valves to the Controller (only on
systems with a solenoid valve). The solenoid valves
are N.C (24V). This operation is to be performed
by a certified electrician.
2. Nipple Lines (B)
• Install the Pressure Reducers
on the Nipple line head in the
same way the Plasson Line Head Regulator is installed.
• Make sure the piping system is not higher than 2.7m (9')
above the Nipple lines (C).
• If retrofitting a Plasson pressure regulator to a Water On Demand
pressure reducer – follow separate Plasson retrofitting instructions.
