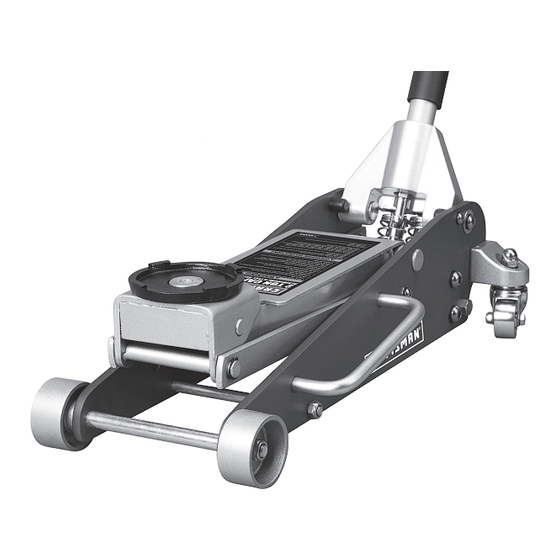

Craftsman 50102 Operator's Manual

2 ton aluminum / steel service jack.
Hide thumbs


Advertisement

Operator's Manual
2 Ton Aluminum / Steel
Service Jack
Model 50102
10 am - 7 pm, Central Time,
WARNING: Before using this product,
read this Operator's Manual and follow
all its Safety Rules and Operating
Instructions.
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
www.craftsman.com
Safety
Operation
Maintenance
Printed in China

Advertisement

   Related Manuals for Craftsman 50102

No related manuals

   Summary of Contents for Craftsman 50102

  • Page 1

    Operator’s Manual 2 Ton Aluminum / Steel Service Jack Model 50102 10 am - 7 pm, Central Time, Safety WARNING: Before using this product, Operation read this Operator’s Manual and follow all its Safety Rules and Operating Maintenance Instructions. Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.

  • Page 2

    AIR PURGE PROCEDURE IMPORTANT: BEFORE FIRST USE, perform the following Air Purge Procedure to remove any air that may have been introduced into the hydraulic system as a result of product shipment and handling. ASSEMBLE AND INSERT HANDLE TURN HANDLE CLOCKWISE See ASSEMBLY on page 3 to assemble Turn handle clockwise until it handle.

  • Page 3

    Overloading this jack beyond its rated DESCRIPTION capacity can cause damage to or failure of the jack. Craftsman model 50102 features a 4,000 lbs. maximum capacity. Lifting range for this jack is Use on Hard Level Surface 3.87 inches to 18 inches. Jack features an...

  • Page 4

    • Sufficiently loosen the Handle Socket Screw to insert the assembled handle (Picture 2). • Line up the square hole located at the bottom of the handle over the square bolt inside the Handle Socket. • Lower the handle onto the bolt. Secure the handle in place by tightening the Handle Socket Screw.

  • Page 5

    ALWAYS USE A GOOD GRADE HYDRAULIC How it works JACK OIL. DO NOT USE HYDRAULIC With Release Valve Closed BRAKE FLUID, ALCOHOL, GLYCERINE, • An upward stroke of the jack Handle draws oil DETERGENT, MOTOR OIL OR DIRTY OIL. from the reservoir tank into the plunger cavity. USE OF AN UN-RECOMMENDED FLUID CAN Hydraulic pressure holds the valve closed, CAUSE DAMAGE TO YOUR JACK.

  • Page 6

    Oil Fill Plug No. Description Q’TY Saddle Lifting Arm Wall Plate Assembly Front Wheel Rear Caster Assembly Handle Assembly Handle Socket Power Unit Assembly Release valve is not completely closed. Turn handle clockwise. Air is in the hydraulics. Purge air from system. Low oil level.

  • Page 7

    For Help Line, Parts and Service: Call 10 am - 7 pm, CT, Monday - Friday 1-888-448-6746 Para la linea de ayuda, partes y servicio: Llame de 10am-7pm Lunes-Viernes 1-888-448-6746...
