Plasson EF Saddle Installation Instructions

For large diameter pipes

Download this manual

Use only Plasson clamping tool for large saddles 280-710mm cat no. 4-4700-006

Clean the pipe. Do not remove the saddle from

the bag.

Place the bag with the saddle on the pipe,

Mark the saddle boundaries on the pipe and

a short line adjacent to the terminal pin,

marking the centerline of the saddle..

G l o b a l

P r e s e n c e

Plasson EF Saddle for

Large Diameter Pipes

Installation Instructions

Add lines on pipe inside the marked boundaries,

then, scrape pipe fully inside perimeter until the

lines are fully removed.

L o c a l

C o m m i t m e n t

Need help?

Do you have a question about the EF Saddle and is the answer not in the manual?

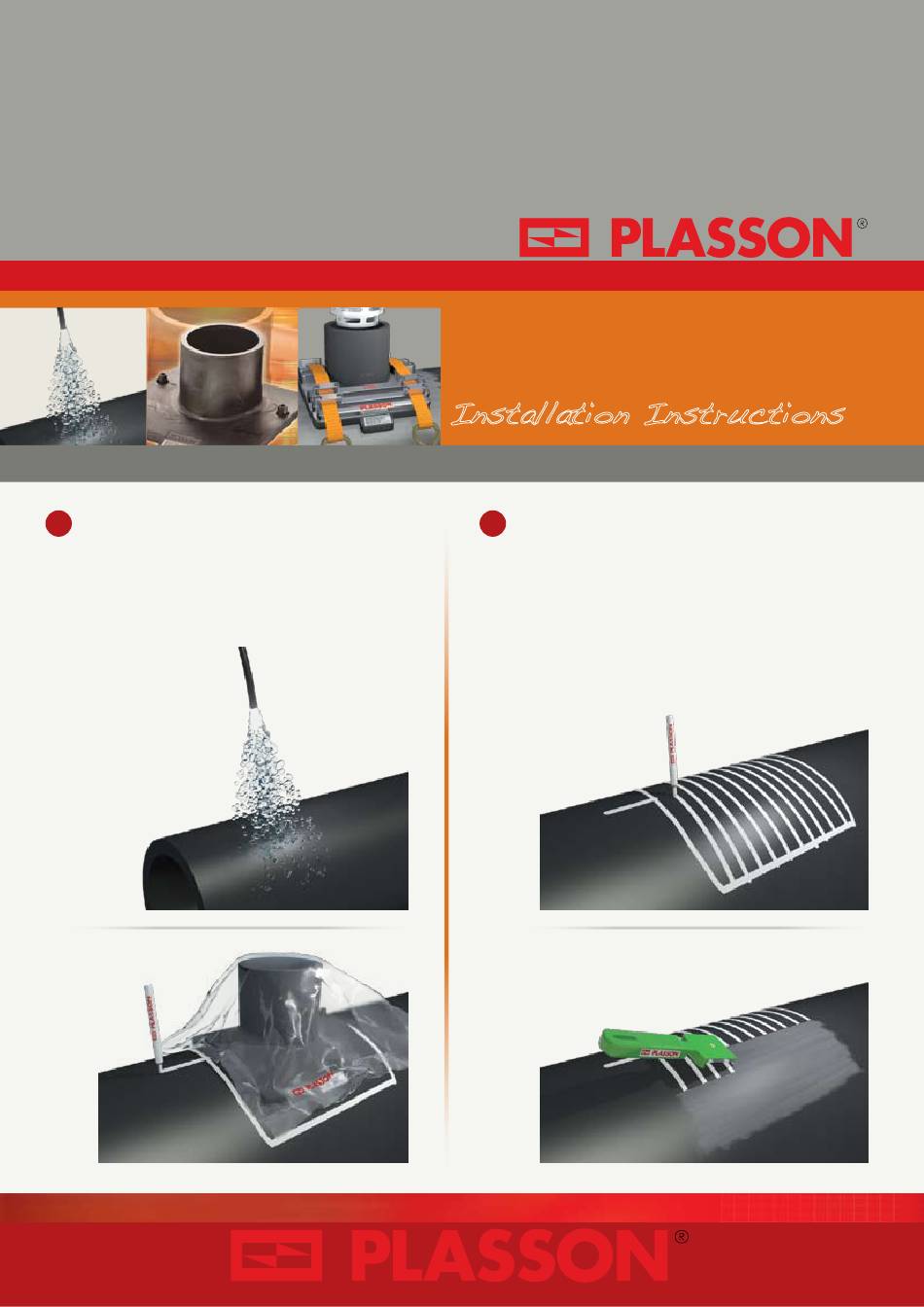

Page 1 Plasson EF Saddle for Large Diameter Pipes Installation Instructions Use only Plasson clamping tool for large saddles 280-710mm cat no. 4-4700-006 Clean the pipe. Do not remove the saddle from Add lines on pipe inside the marked boundaries, the bag.
Page 2 Installation Instructions Clean saddle surface and scraped pipe with Locate the saddle on the scraped pipe appropriate PE Cleaner. Do not touch the surface after it has been cleaned. Select the appropriate tightening plate according to the saddle type and size. Place on the saddle.
Page 3 Installation Instructions Fit the jig ring over the spigot outlet. Shift the ratchet pulling device to its “loose” position, and attach it to the hooks that extend out of the tightening plate. Both pulling devices should be placed at the same side of the pipe. Placed inside the spigot for sizes 125, 160 mm Tension Force Indicator - indication at no tension Placed outside the spigot for sizes 90, 110 mm...
Page 4 Installation Instructions Tighten the belt by shifting the lever until the Keep the belts tightened until the cooling time gap in the Tension Force Indicator (TFI) is closed. has elapsed. Check that the saddle surface is in full contact with the pipe. Tension Force Indicator - indication for full tension Loosen the belt by shifting the ratchet pulling device to its “loose”...
