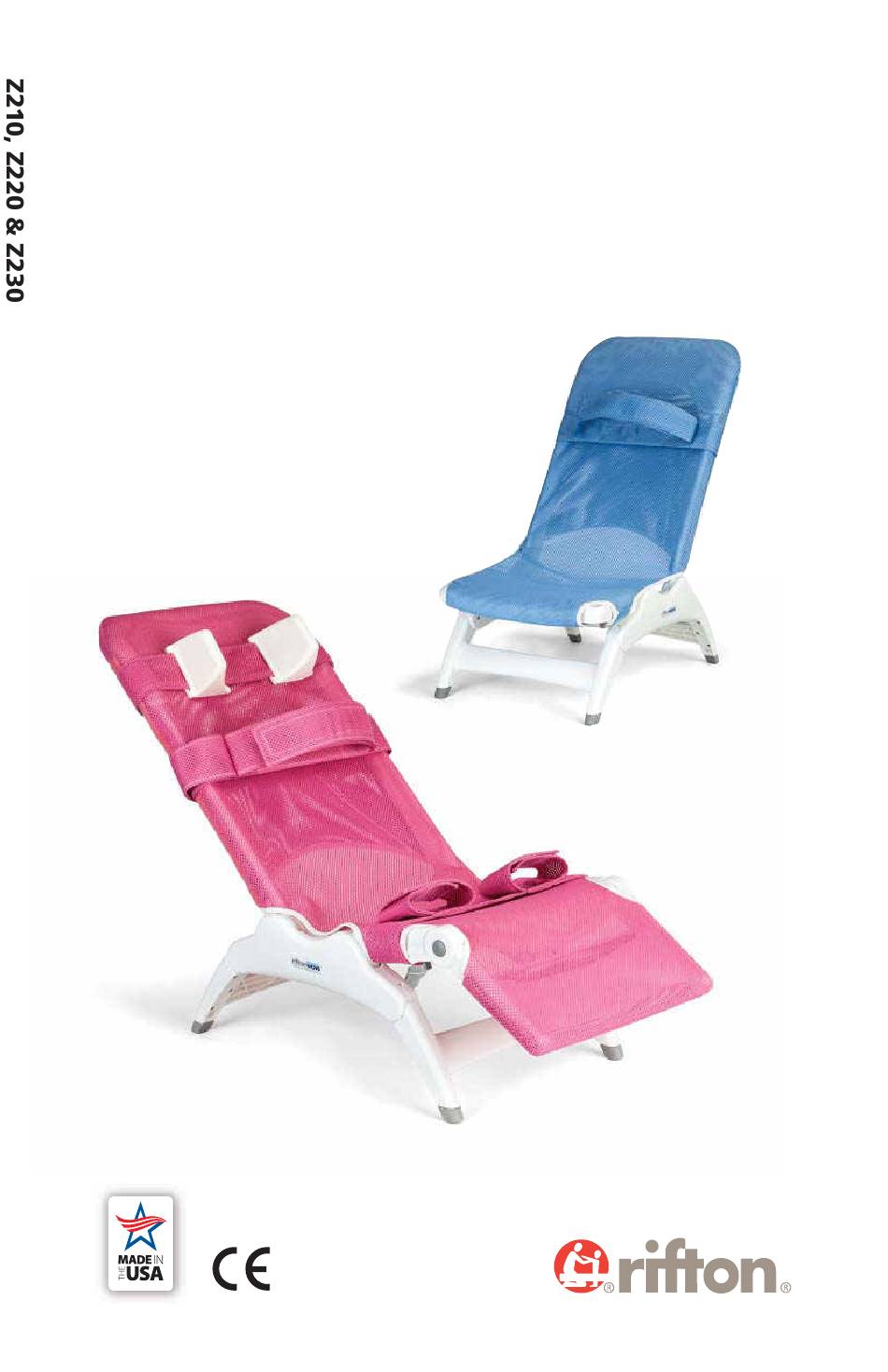

- Page 1 Wave Bathing & Transfer System Z210, Z220, & Z230 Product Manual...
-
Page 2: Table Of Contents
Seat Seat with calf rest Head blocks Soft fabric cover Chest strap and leg straps Accessories Tub stand Shower stand Tub transfer base Conversion kit Operation and maintenance Cleaning and warranty Materials and user modifi cations © 2016 Rifton Equipment... -
Page 3: Important Information
Use this key to determine which sections of this product manual apply to you. Technical Users For professionals who order and set up Rifton products. Home Users For care-givers who use Rifton products on a regular basis. Maintenance Personnel For anyone who is responsible for service or re-ordering of Rifton products and parts. -
Page 4: Safety Messages
○ Immediately remove this product from use when any condition develops that might make operation unsafe. ○ Do not use Rifton components or products for any purpose other than their intended use. • To prevent drowning, use extra caution when using bath chair in a bathtub. -
Page 5: Recommended Use And Item Dimensions
Recommended use The Rifton Wave Bathing and Transfer System is a Class 1 medical device. It is intended to provide a stable, quick-drying seat for bathing or showering for individuals with disabilities. Adjustments and additional supports are available for the safety and comfort of the user. -
Page 6: Check Your Order
Check your order Your Wave Bathing & Transfer System comes with the bath chair completely assembled. You will only need to attach it to whatever base you are using, and position the backrest, seat and headblocks appropriately before use. Basic components The Wave bath chair comes in small, medium, and large sizes. -
Page 7: Back
Back The bath chair back adjusts in 15° increments with a one-hand latch. To adjust the back (see fi gure 7a): 1. Squeeze gray handle (A) up behind chair back. 2. Rotate back to desired position. 3. Release gray handle to engage the latches at desired angle. -
Page 8: Head Blocks
Head blocks Slide the head blocks in and out on the strap to adjust spacing. They can also be positioned at any height using the hook and loop fasteners at the back (see fi gure 8a). Soft fabric cover Figure 8a The fabric cover for the bath chair is made of soft polyester knit for comfort. -
Page 9: Accessories
Accessories Tub stand To prevent falls, WARNING make sure all four chair legs are fi rmly latched in the sockets on the stand before using the tub stand. Figure 9a The tub stand (see fi gure 9a) raises the bath chair to a seat height of either 12½" (32 cm) or 18½"... -
Page 10: Shower Stand
Shower stand To prevent falls, WARNING make sure all four chair legs are fi rmly latched in the sockets on the stand before using the shower stand. The shower stand puts the bath chair on wheels at standing height for the caregiver. All three sizes of bath chair fi... -
Page 11: Tub Transfer Base
Tub transfer base To prevent falls, WARNING make sure front wheels are locked during transfers. The tub transfer base enables clients in the bathchair to be transferred over a bath tub with zero lifting. Figure 11a To set up base (see fi gure 11a): 1. -
Page 12: Conversion Kit
Now your tub transfer base is ready to use in the opposite confi guration. Conversion kit The conversion kit converts the small pink or blue Rifton bath chairs to a medium size, tool-free (see fi gure 12e). Call customer Figure 12d service to order. -
Page 13: Operation And Maintenance
Operation The Rifton bath chair is intended for use in a bathtub or shower. It’s adjustability and accessories enable bathing or showering clients with a wide range of disabilities. The seat and back angles adjust easily to accommodate positioning needs. Head Blocks, chest straps, and leg straps are designed for the safety of the user, and must be carefully adjusted for comfort and security. -
Page 14: Cleaning And Warranty
Do not use chemicals or lubricants. Warranty statement If a Rifton product breaks or fails in service during the fi rst year, we will replace it free of charge. -
Page 15: Materials And User Modifi Cations
• Plastic components are typically injection molded from a variety of industrial resins. All materials are latex, lead and phthalates free. User modifi cations To prevent serious injury or death, do not modify or alter Rifton WARNING products or components, or use Rifton products or components in conjunction with products from other manufacturers.
