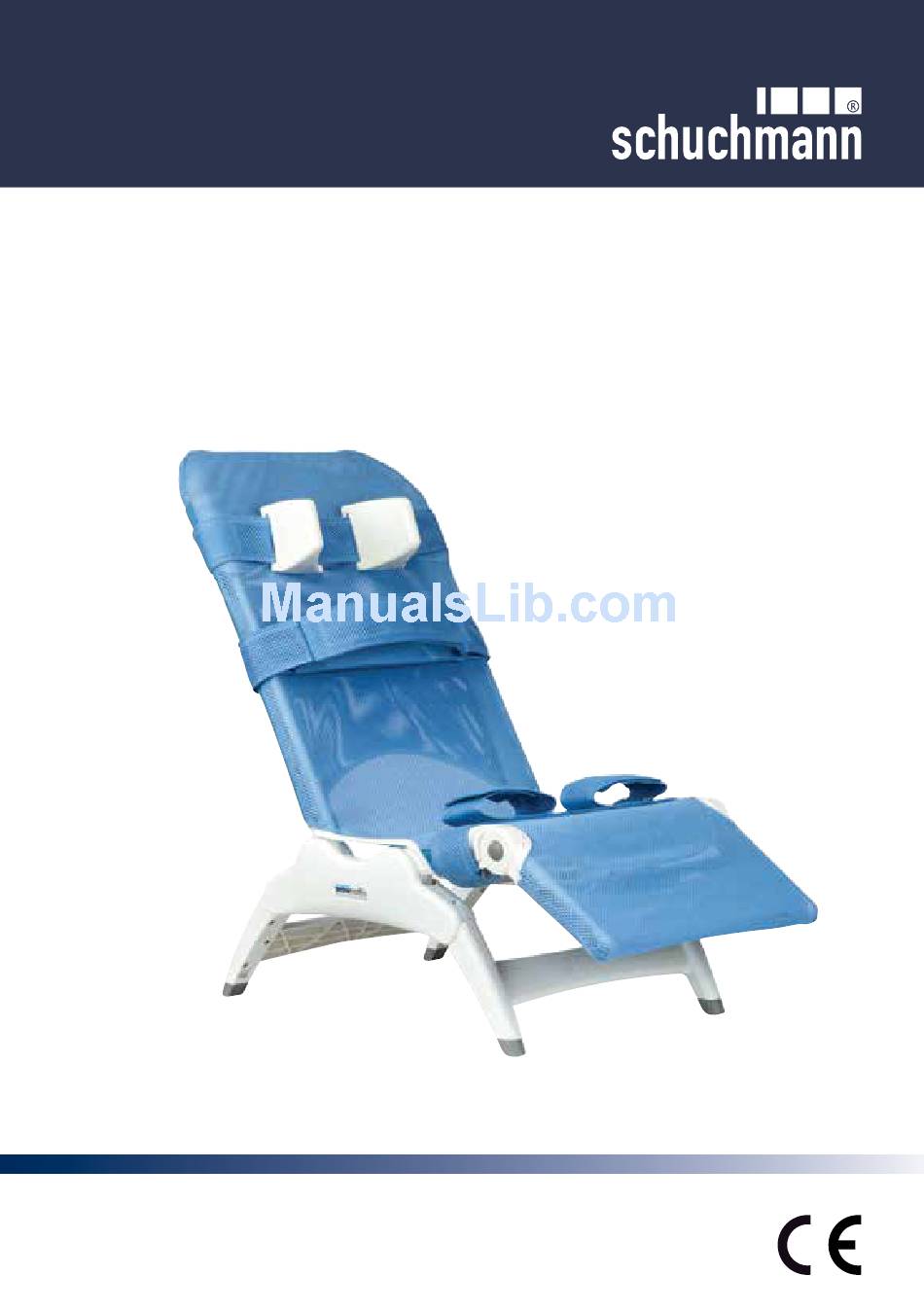

Page 1: Instructions For Use
Rifton Wave the bathing and shower stretcher by Rifton Instructions for use... - Page 2 Dear Customer, At this point we would like to thank you for placing your trust in our company and for purchasing our product. We ask you to read through the Instructions for use carefully prior to initial com- missioning of the product, and to observe them. Please note that guidelines and representations in these Instructions for use may deviate from your product due to differing equipment.
-
Page 3: Table Of Contents
Content 1. Preparation of the bathing and shower stretcher for use ............4 1.1 Delivery ............................4 1.2 Safety measures prior to use ......................4 1.3 Safe disposal ..........................4 1.4 Where to store the Instructions for use ..................4 2. Product description ..........................5 2.1 Material information ........................5 2.2 Handling / transport ........................5 2.3 Application areas, use according to the intended purpose ............5 2.4 Use not in accordance with the intended purpose / warning guidelines ........6... -
Page 4: Preparation Of The Bathing And Shower Stretcher For Use
1. Preparation of the bathing and shower stretcher for use 1.1 Delivery On receiving the product, please check it for completeness, lack of faults and check it for any transport damage. Inspect the goods in the presence of your forwarder. Should transport damage have occurred, please arrange for an inventory (deter- mination of the faults) to be made in the presence of the forwarder. -
Page 5: Product Description
2.3 Application areas, use according to the intended purpose The bathing and shower stretcher Rifton Wave is exclusively suitable for use in baths, showers, in the sandpit and on the beach. It supports children and teenagers who cannot sit without assistance, and provides additional support through holding straps. -
Page 6: Use Not In Accordance With The Intended Purpose / Warning Guidelines
2.4 Use not in accordance with the intended purpose / warning guidelines CAUTION! • Ensure that the bathing and shower stretcher is only used by one child/teenager. • Never leave the child unattended on the bathing and shower stretcher. • Correct usage of the bathing and shower stretcher requires precise and careful training of the accompanying person. -
Page 7: Equipment For Basic Model
2.5 Equipment for basic model • Subsequent model of the Rifton Blue Wave (BEN) • UV-resistant plastic frame with removable cover • Angle-adjustable seat and back surface • Back angle adjustable through practical one-hand operation • Two lying heights due to adjustable feet... -
Page 8: General Settings
The seat, the back and the calf support are adjustable. Rifton Wave is available in three sizes. All the different bathing stretcher sizes fit onto the shower sub-frame (A), the bath sub-frame (B) and the transfer sub-frame (C). -
Page 9: Seat Angle
3.2 Seat angle In order to adjust the seat angle, the two grey triggers (A) must be pulled forward simultaneous- ly and the seat can be adjusted to the required position. The seat must engage audibly. 3.3 Calf angle In order to adjust the angle of the calf support, the two grey triggers (B) must be pressed in. -
Page 10: Headrest / Torso Support
3.4 Headrest / torso support The position of the headrest / torso support (A) can quickly and easily be continuously adjusted to the required position. The width can be adjus- ted by moving the respective guide. 3.5 Chest, pelvic and leg straps The position of the chest strap /pelvic harness (B) can quickly and easily be continuously adjusted to the required position. -
Page 11: Accessories
4. Accessories 4.1 Mounting the bathing stretcher on the bath sub-frame Put the bathing stretcher feet into maximum up- right position (see Point 3.6). Then press the ba- thing stretcher feet firmly into the adaptors (A) of the sub-frame until they engage (A). In order to remove the bathing stretcher, press the grey levers (B) down one after the other as shown and lift the bathing stretcher. -
Page 12: Mounting The Bathing Stretcher Onto The Transfer Sub-Frame
4.3 Mounting the bathing stretcher onto the transfer sub-frame Press the grey flaps (A) together and raise the legs upright until they engage audibly. Then bring the standing legs of the bathing stret- cher into a completely flat position (see Point 3.6) and hook the bathing stretcher under the hook (B). -
Page 13: Swivel Movement Of The Transfer Sub-Frame From Right To Left (Or Vice Versa)
4.3.2 Swivel movement of the transfer sub- frame from right to left (or vice versa) The transfer sub-frame can be swivelled either to the left or to the right. In order to change the respective direction of swivel, remove the screws (A). -
Page 14: Operation Of The Guide Wheels
4.4 Operation of the guide wheels Braking / locking of the guide wheels (with tip of shoe): Brakes applied Release of the guide wheels: Brakes released... -
Page 15: Repairs And Cleaning
5. Repairs and cleaning 5.1 Cleaning Please clean all frame elements with a sponge or damp cloth. The covers can be removed and washed at 40° in the washing machine; do not spin! Please do not dry the cover in a dryer and do not use aggressive cleaning agents or similar products. -
Page 16: Technical Data
6. Technical data Size 1 Size 2 Size 3 User size 76 - 117 cm 102 - 142 cm 127 - 188 cm Seat depth 27 cm 33 cm 43 cm Seat width 38 cm 38 cm 44 cm Back height 58 cm 67 cm 81 cm... -
Page 17: Guarantee
7. Guarantee The two-year statutory guarantee period shall apply for all products. This guarantee period shall begin with the delivery or handover of the goods. Should a verifiable material or manufacturing fault occur within this time period, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or de- liver a new product at our discretion. -
Page 18: Identification
Fax: +49 (0) 54 05 / 909 - 109 declares on their sole responsibility that the product named below is classi- fied as product class 1 "Rifton Wave" - the bathing and shower stretcher by Rifton Art. No.: 58 01 000 (Size 1) 58 02 000 (Size 2) -
Page 19: Serial Number / Date Of Manufacture
8.2 Serial number / date of manufacture The serial number, the date of manufacture and other information can be found on the type plate, which is located on all of our products (A inside). Product name Part number Serial number Schuchmann GmbH &... -
Page 20: Product Version
8.3 Product version The bathing and shower stretcher Rifton Wave is available in three sizes and can be supplemented through diverse accessories (see Point 4). 8.4 Issue of the document Instructions for use Rifton Wave - Change status A; Issue 11.2016 8.5 Name and address of the manufacturer, specialist dealer supplying the...
