Deva CMM Controllers Quick Installation Guide
1
What's covered by this Guide.......................................................................................... 2
2
Hardware Installation........................................................................................................ 2
3
Software Installation......................................................................................................... 2
3.1
Device Driver ........................................................................................................... 2
3.2
Devatools................................................................................................................ 3
3.3
Default Configuration ............................................................................................. 3
3.4
Testing The Installation........................................................................................... 3
1
What's covered by this Guide
Deva001 for most manual CMM applications.
Deva004 CMM controller for most CMM Applications.
Deva037 for all manual CMM applications.
Please refer to the Deva Driver Selection Guide in the support section of our website
for more guidance on alternate drivers to use.
For software upgrades or where the Deva controller is changed for a different type
please refer to the DevaCMMCtrl Installation and Configuration Guide.
2
Hardware installation

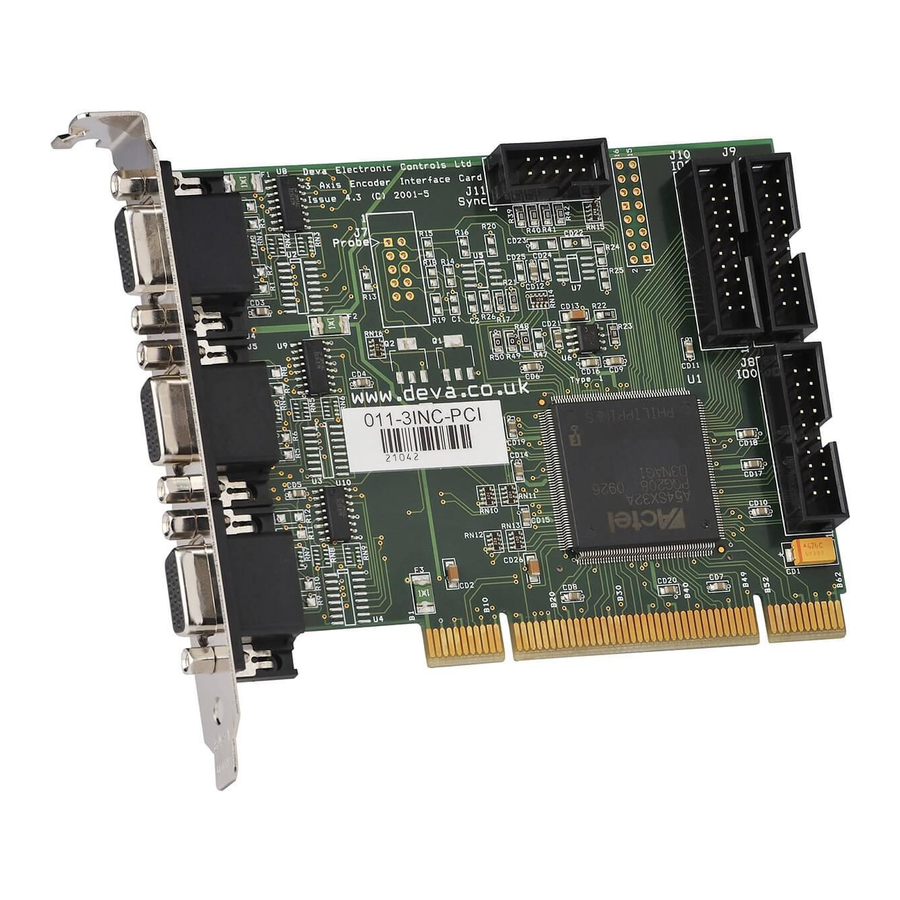

The Deva004 or Deva001 cards are installed by inserting it into any available
PCIexpress slot. The Deva037 is plugged into a USB connector on the PC.
encoders are to be powered from the Deva 037 then a mains supply must be
connected.
3
Software installation
3.1
Device driver
During the first re-boot after a PCIexpress product has been installed or when a USB
device is plugged in windows will indicate that a new device has been found and will
start the standard driver installation procedure. If this does not occur it is possible to
initiate this process manually via the 'add new hardware' icon in the control panel or
via the windows device manager.
Follow the instructions and when requested select 'have disk' and then browse to the
Drivers directory on the installation media. For example, select:
DevaCmmCtrl\Drivers
Click ok and follow instructions to complete the installation.
Deva Electronic Controls Ltd
If
Page 1
Advertisement
Table of Contents
Related Manuals for DEVA Deva001
Summary of Contents for DEVA Deva001
- Page 1 Deva004 CMM controller for most CMM Applications. Deva037 for all manual CMM applications. Please refer to the Deva Driver Selection Guide in the support section of our website for more guidance on alternate drivers to use. For software upgrades or where the Deva controller is changed for a different type please refer to the DevaCMMCtrl Installation and Configuration Guide.
- Page 2 Instead all configuration is performed using the Deva Config Editor. The first step on a new installation after installing the tools is to use the Deva Config Editor to restore a default configuration for the installed card. This is performed by running up the Deva Config Editor, entering the code 0454 in the code dialog and then performing a restore operation of the appropriate default config backup file.
