Tuvva KSD7875 Owner's Manual

In-dash 7” monitor touch screen dvd/cd/mp3/mp4 am/fm radio with bluetooth
Hide thumbs
Table of Contents

Advertisement

Quick Links

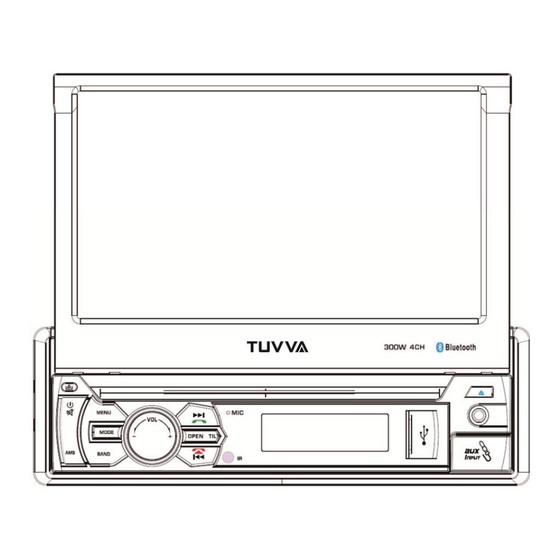

TUVVA
KSD7875
In-Dash 7" Monitor
Touch Screen
DVD/CD/MP3/MP4
AM/FM Radio
With Bluetooth
Manual.
.Owner's
Take the time to read through this owner's manual.
Familiarity with installation and operation procedures will help you obtain the
best Performance from your new DVD-receiver.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSD7875 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tuvva KSD7875

Summary of Contents for Tuvva KSD7875

  • Page 1 TUVVA KSD7875 In-Dash 7” Monitor Touch Screen DVD/CD/MP3/MP4 AM/FM Radio With Bluetooth Manual. .Owner’s Take the time to read through this owner’s manual. Familiarity with installation and operation procedures will help you obtain the best Performance from your new DVD-receiver.

  • Page 2: Warning

    WARNING! To promote safety, certain functions are disabled unless the parking brake is on. The Unit is designed to detect parked status and must be connected to the power supply side of the parking brake switch. Improper connection or use of his connection may violate applicable law and may result in serious injury or damage.

  • Page 3: Table Of Contents

    CONTENTS WARNING! ......................... 2 OPERATION PRECAUTIONS ..................2 CONTENTS ........................ 3 ACCESSORIES ......................4 INSTALLATION / UN-INSTALLATION................ 5 WIRING CONNECTIONS ................... 7 FRONT PANEL ......................8 REMOTE CONTROL ....................10 REMOVE BATTERY ....................12 MAIN MENU ......................13 ◆ RADIO PLAYER ....................13 ◆...

  • Page 4: Accessories

    ACCESSORIES Package contains the following accessories for installation and operation of the unit. Power cable Trim Ring Remote Control User Manual Note: Product image may vary from the actual delivery.

  • Page 5: Installation / Un-Installation

    INSTALLATION / UN-INSTALLATION Note Before starting installation of the unit, make sure the wiring is connected properly. Use only the parts provided with the unit to ensure proper installation. The use of unauthorized parts may cause malfunction. Install the unit where it does not get in the driver’s way and will not injure the passenger in case there is a sudden stop, like an emergency stop.

  • Page 6: Wiring Connections

    WIRING CONNECTIONS Make sure you have good chassis ground. A good ground connection will eliminate most electrical noise problems. A good chassis ground requires a tight connection to the vehicle’s metal chassis. The area around the ground connection should be clean, bare metal without rust, paint, plastic, dust, or dirt for a good electrical connection.
  • Page 7 Parking wire Note: The parking wire is connected with brake signal; for safety, the programs can be seen on the monitor after braking the car. Connecting the reversing line to taillight on the car After connecting, when you start up the reverse gear, the unit will receive the picture from car rear view camera.

  • Page 8: Front Panel

    FORNT PANEL 1. TFT display 2. Release Button Press to detach and release the front panel. When release the unit will switch off automatically after a few second. Detach/Attach the Panel: Press REL button and pull out the left side to detach the panel.
  • Page 9 6. BAND Button In Radio mode, press to change radio band in sequence of FM1 → FM2 → FM3 →AM1 →AM2 . 7. MODE Button Press it to select different input mode: Radio, DISC (if there is a disc in unit), USB (if there is a USB device in the unit), CARD (if there is a SD/MMC card in the unit), Bluetooth, and AV 8.

  • Page 10: Remote Control

    REMOTE CONTROL 1. POWER Power it on or off. 2. MODE button Press it to select the mode: Radio, DISC (if there is a disc in unit), USB (if there is a USB device in the unit), CARD (if there is a SD/MMC card in the unit) and AV IN. 3.
  • Page 11 Use the buttons to select the menu item. The title it track or to show next frame. 10. ENTER button Press it to confirm selection or setting. 11. Cursor buttons Use the buttons to select the menu item. The title it track or to show next frame. 12.

  • Page 12: Remove Battery

    Press it to Stop playback from the current position, press it again to final stop to the very beginning. Press PLAY/PAUSE button to play. Press and hold for two seconds to set PBC on/ off in VCD mode. 26. OSD button In DVD mode press it to enter the OSD menu, press and hold for 2 seconds to set video setup.

  • Page 13: Main Menu

    MAIN MENU The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the Main menu. This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons.

  • Page 14: Dvd Player

    Note: When a radio signal is not received, the default for ST / MO function, once received radio function automatically converted to ST. ◆DVD PLAYER To start DVD Player, tap on DVD button from main menu screen. TOUCH SCREEN MENU Touch it to skip to the previous track.

  • Page 15: Disc/Usb/Sd/Mmc Interfeace Operation

    Press it to select chapter. Touch it to enter to page 1 menu. Touch this button to exit DVD/VCD mode. NOTE DVD Player will automatically start playing when you insert any DVD disc, MEMORY card or USB device. 2. Warning displays if the vehicle is moving for driver's safety. 3.

  • Page 16: Setting Control

    ◆SETTING CONTROL To start SETTING, tap SETUP icon on main menu. Your device has default system settings. You can customize the settings to suit your personal needs. Once you change settings, your new settings will remain until you change it again. System OSD Language: English, Chinese Traditional, Thailand Hebrew...

  • Page 17: Bluetooth Control

    Bluetooth Auto Connect: Select auto connect phone on or off. Auto Answer: Select auto answer phone on or off. BULETOOTH SCETION Warning: Driving and having a Telephone conversation at the same time is dangerous, please park your car before having a telephone conversation. The supplier waves any and all liability when this warning is not followed.
  • Page 18 According to mobile pairing device manual,after searching new device(TUVVA), select it, input password "0000" and confirm ok, device paring is finished. The text „Enter Number‟ will shows on the panel after the pairing is completed. It means device is connected and ready for BLUETOOTH communication.

  • Page 19: Aux Mode

    AUX MODE To start AUX Mode, tap on AUX button from main menu screen.Connect the external audio/video signal source to this unit. Select AUX mode in the main menu or by repeat Mode button on the front panel. Note: If there is no external video input, the TFT displays “NO VIDEO SIGNAL”. OTHER FUNCTIONS Subwoofer Connect the subwoofer to the unit using sub output (see electrical diagram).

  • Page 20: Notes On Disc

    NOTES ON DISC  Only use groundless loudspeakers.  Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging your loud speakers at higher volumes.  Use 4~8 Ω (Ohm impedance) loudspeakers only; using higher or lesser impedance may damage the unit.

  • Page 21: Troubleshooting

    TROUBLESHOOTING Symptom Cause Remedy Power does not turn Replace with fuse of the same amperage. Fuse is blown If the fuse blows again, consult your store (No sound is of purchase produced.) In correct wiring Consult your local retailer. 1. Turn off the unit. 2.

  • Page 22: Troubleshooting

    TROUBLESHOOTING SYMPTOM CAUSE SOLUTION IF THE POWER SUPPLY IS PROPERLY THE CAR IGNITION IS CONNECTED TO THE CAR NOT ON. ACCESSORY SWITCHES THE IGNITION NO POWER KEY TO “ACC”. THE FUSE IS BLOWN. REPLACE THE FUSE. DISC CANNOT BE PRESENCE OF DISC REMOVE THE DISC IN THE PLAYER LOADED.

  • Page 23: Technical Specifications

    TECHNICAL SPECIFICATIONS General Power supply: 11~16V DC Current consumption: Max. 10 A Maximum power output: 52W x 4 channels (max) DVD/SVCD/VCD/HDCD/MP3/MP4/VIDEO/CDDA/Picture Compatible formats: CDCD-R/-RW/DVD±R/±RW playback Dimensions (W x D x H) / 178*170*50 mm/2 kg weight: Working temperature -10℃ - +60℃ range: ESP function: 10 sec.
  • Page 25 Need help? Contact us! TUVVA representatives are ready to help you with any question about your new product. We can guide you through connections, first time setup, or any of the features. We want you to start enjoying your new product right away!
