2 2 2
YEAR WARRANTY
YEAR WARRANTY
SPECIFICATIONS
Watts
Amp Draw
8 LEDs
Raw Lumens
Voltage
Waterproof IP Grade
Operating Temperature
DISCLAIMER
OPT7 Lighting is not liable for damages, injuries, or death while
installing this product.
The Installation Guide is intended as assistance to reduce setup
time. OPT7 Lighting assumes no responsibility for improper
installation.
If you are unfamiliar with your vehicle or inexperienced with
aftermarket upgrades, please seek professional assistance.
NEED HELP?
Scan for tutorial videos, troubleshooting tips,
and more.
96W
8A
Quad-Core CREE
3,600 (All 4 Pods Combined)
10-30V
IP67
65-120F
4
QUANTUM ROCK LIGHTS
INSTALL GUIDE

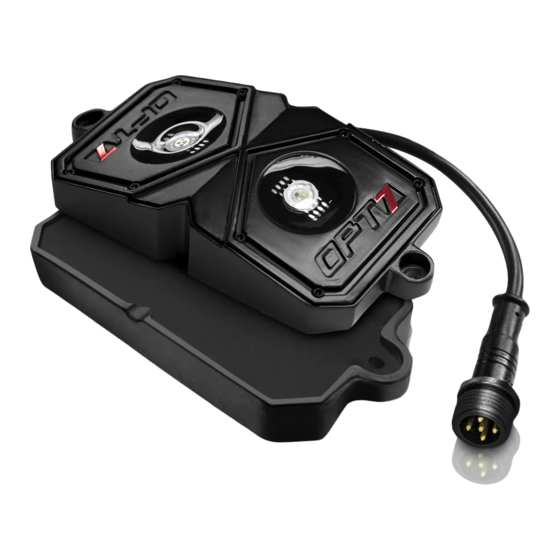

Quantum Rock Light Pods
12V
Accessory
Wire
Control Box with
x1
Full-Size Remote
Accessory Wire
10ft Extension Cables x4
12V Constant Power Wire
x4
Rubber Pads
Keychain Remote x1
x1
Fuse Tap
(3 different sizes)
x1
Metal Screws x8
1
x4
x1
v3.3 (05.18.18)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for OPT-7 QUANTUM ROCK LIGHTS
Summary of Contents for OPT-7 QUANTUM ROCK LIGHTS
- Page 1 2 2 2 YEAR WARRANTY YEAR WARRANTY QUANTUM ROCK LIGHTS SPECIFICATIONS INSTALL GUIDE Watts Amp Draw 8 LEDs Quad-Core CREE Raw Lumens 3,600 (All 4 Pods Combined) Voltage 10-30V Waterproof IP Grade IP67 Operating Temperature 65-120F DISCLAIMER Quantum Rock Light Pods...
- Page 2 INSTALLATION STEPS WHERE TO INSTALL RECOMMENDED LOCATIONS FOR ROCK LIGHT PODS TOOLS REQUIRED • 5/32-inch Drill Bit • 7/64-inch Drill Bit • Phillips Head Screwdriver Designate your mounting locations for each Rock Light Pod and the control box. (Refer to page 3 for recommended mounting locations) Avoid hot surfaces and/or moving parts.
