Roundup ES-1200 Owner's Manual
  1. Manuals
  2. Brands
  3. Roundup Manuals
  4. Egg Cooker
  5. ES-1200
  6. Owner's manual

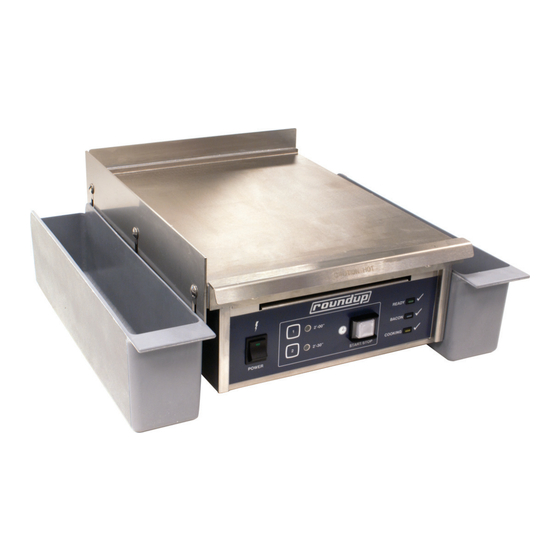

Roundup ES-1200 Owner's Manual

Egg station
Hide thumbs Also See for ES-1200:
Table of Contents

Advertisement

Quick Links

MaNufactuRiNg
NuMBeRs:
9300590
Egg Station
Model ES-1200
CM
P/N 1011119 Rev. B 03/12
owner
s Manual
'

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES-1200 and is the answer not in the manual?

Questions and answers

Related Manuals for Roundup ES-1200

Summary of Contents for Roundup ES-1200

  • Page 1 MaNufactuRiNg NuMBeRs: 9300590 Egg Station Model ES-1200 P/N 1011119 Rev. B 03/12 owner s Manual ’...
