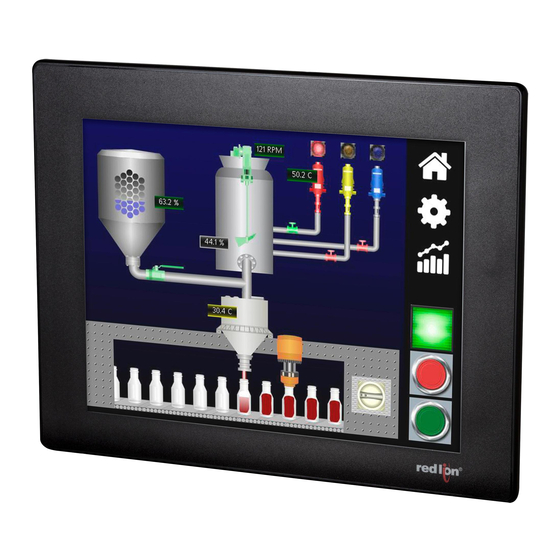

Industrial operator interface with tft display
Hide thumbs Also See for CR3000 series:

Advertisement

Inside US: +1 (877) 432-9908

Outside US: +1 (717) 767-6511
www.redlion.net

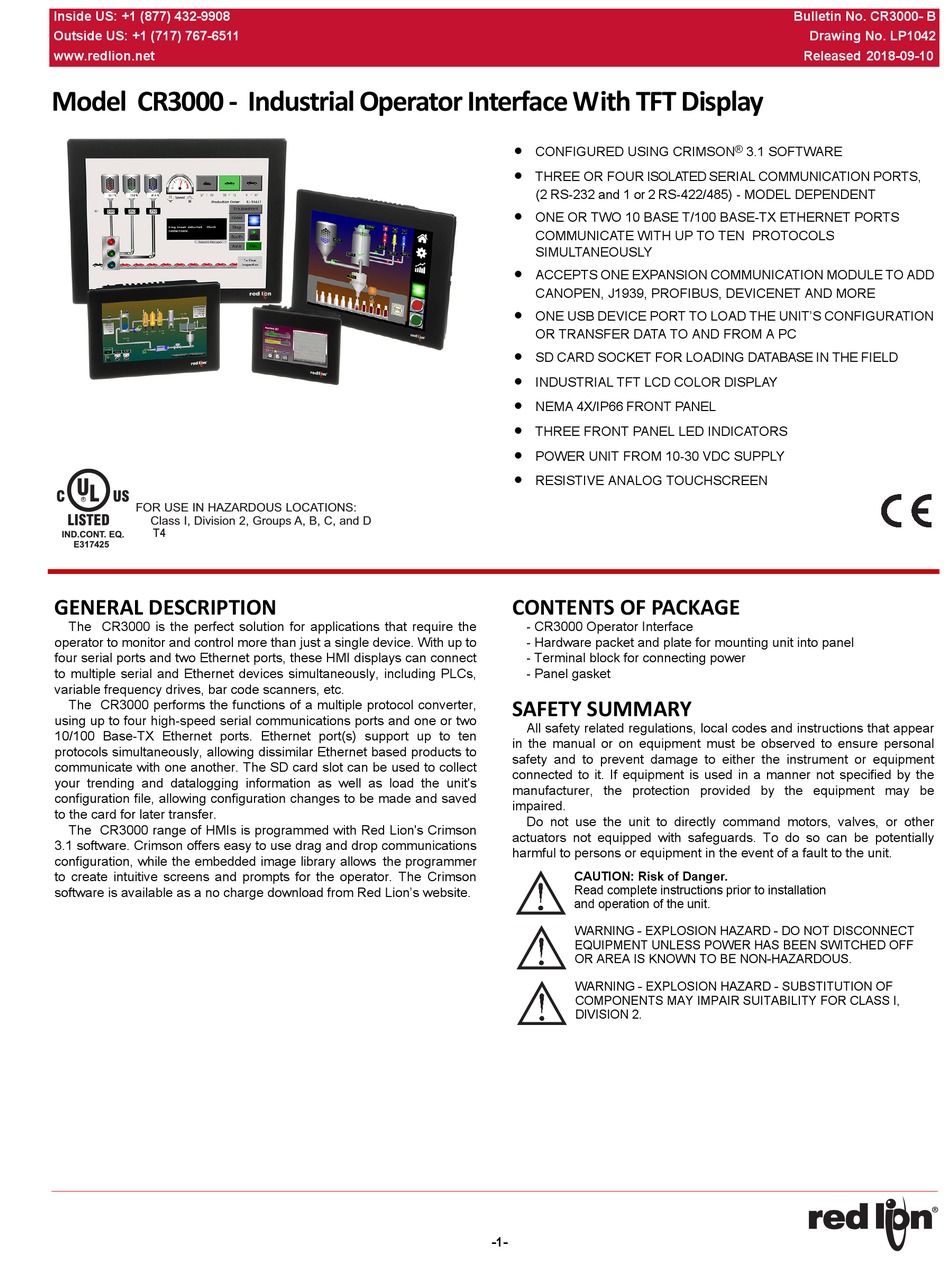

Model  CR3000 ‐  Industrial Operator Interface With TFT Display
FOR USE IN HAZARDOUS LOCATIONS:
Class I, Division 2, Groups A, B, C, and D
T4
IND.CONT. EQ.
E317425
GENERAL DESCRIPTION
The CR3000 is the perfect solution for applications that require the
operator to monitor and control more than just a single device. With up to
four serial ports and two Ethernet ports, these HMI displays can connect
to multiple serial and Ethernet devices simultaneously, including PLCs,
variable frequency drives, bar code scanners, etc.
The CR3000 performs the functions of a multiple protocol converter,
using up to four high-speed serial communications ports and one or two
10/100 Base-TX Ethernet ports. Ethernet port(s) support up to ten
protocols simultaneously, allowing dissimilar Ethernet based products to
communicate with one another. The SD card slot can be used to collect
your trending and datalogging information as well as load the unit's
configuration file, allowing configuration changes to be made and saved
to the card for later transfer.
The CR3000 range of HMIs is programmed with Red Lion's Crimson
3.1 software. Crimson offers easy to use drag and drop communications
configuration, while the embedded image library allows the programmer
to create intuitive screens and prompts for the operator. The Crimson
software is available as a no charge download from Red Lion's website.
CONFIGURED USING CRIMSON
THREE OR FOUR ISOLATED SERIAL COMMUNICATION PORTS,
(2 RS-232 and 1 or 2 RS-422/485) - MODEL DEPENDENT
ONE OR TWO 10 BASE T/100 BASE-TX ETHERNET PORTS
COMMUNICATE WITH UP TO TEN PROTOCOLS
SIMULTANEOUSLY
ACCEPTS ONE EXPANSION COMMUNICATION MODULE TO ADD
CANOPEN, J1939, PROFIBUS, DEVICENET AND MORE
ONE USB DEVICE PORT TO LOAD THE UNIT'S CONFIGURATION
OR TRANSFER DATA TO AND FROM A PC
SD CARD SOCKET FOR LOADING DATABASE IN THE FIELD
INDUSTRIAL TFT LCD COLOR DISPLAY
NEMA 4X/IP66 FRONT PANEL
THREE FRONT PANEL LED INDICATORS
POWER UNIT FROM 10-30 VDC SUPPLY
RESISTIVE ANALOG TOUCHSCREEN
CONTENTS OF PACKAGE
- CR3000 Operator Interface
- Hardware packet and plate for mounting unit into panel
- Terminal block for connecting power
- Panel gasket
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear
in the manual or on equipment must be observed to ensure personal
safety and to prevent damage to either the instrument or equipment
connected to it. If equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired.
Do not use the unit to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially
harmful to persons or equipment in the event of a fault to the unit.
CAUTION: Risk of Danger.
WARNING - EXPLOSION HAZARD - DO NOT D
EQUIPMENT UNLESS POWER HAS BEEN SW
Read complete instructions prior to installation
and operation of the unit.
OR AREA IS KNOWN TO BE NON-HAZARDOU
WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT
WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT
EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF
EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF
OR AREA IS KNOWN TO BE NON-HAZARDOUS.
OR AREA IS KNOWN TO BE NON-HAZARDOUS.
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF
COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2.
-1-
Bulletin No. CR3000- B
Drawing No. LP1042
Released 2018-09-10
®
3.1 SOFTWARE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR3000 series and is the answer not in the manual?

Questions and answers

Summary of Contents for red lion CR3000 series

  • Page 1 CAUTION: Risk of Danger. EQUIPMENT UNLESS POWER HAS BEEN SW Read complete instructions prior to installation software is available as a no charge download from Red Lion’s website. OR AREA IS KNOWN TO BE NON-HAZARDOU and operation of the unit.
  • Page 2: Specifications

    EN 61326-1 Immunity to Industrial Locations 2. BATTERY: Lithium coin cell. Typical lifetime of 5 years, nominal. Emission CISPR 11 Class A To maintain UL rating, replacement battery must be: Red Lion CRA000 IEC/EN 61010-1 BT3V0 00000, Rayovac BR1225X-BA or Panasonic BR1225A/BN.
  • Page 3: Mounting Instructions

    Released 2018-09-10 Bulletin No. CR3000- B   Drawing No. LP1042 CR3000 10 2.00 (50.8) 10.78 (273.73) 11.14 (282.96) 1.26 (32) 7.87 (199.9) 8.50 8.87 10.4 inch (225.29) (215.99) Module sold THIS VIEW SHOWN separately WITH MOUNTING PLATE AND BRACKETS CR3000 15 2.64 (67.2) 14.36 (364.6) 14.31 (363.5) 1.26 (32)
  • Page 4: Connecting Power

    Bulletin No. CR3000- B Released 2018-09-10   Drawing No. LP1042 Follow these steps to install the unit. 1. Make sure the bezel gasket is properly in place. even pattern until the unit is secured in the panel. To seal to Type 4X/ 2.
  • Page 5: Emc Installation Guidelines

    Ferrite Suppression Cores for signal and EMC INSTALLATION GUIDELINES control cables is effective. The following EMI suppression devices (or Although Red Lion Controls products are designed with a high degree equivalent) are recommended: of immunity to Electromagnetic Interference (EMI), proper installation and...
  • Page 6: Cables And Drivers

    “Port Pin Outs” that corresponds to your specific model for wiring COMM information. Note: All Red Lion devices connect A to A and B to B. Refer to ETHERNET COMMUNICATIONS www.redlion.net for additional information. Ethernet communications can be established at either 10 BASE-T or Examples of RS485 2‐Wire Connections...
  • Page 7: Factory Reset Button

    If for any reason you have trouble operating, connecting, or simply Crimson software is available as a no charge download from Red have questions concerning your new CR3000 unit, contact Red Lion’s Lion’s website. The latest version of the software is always available from technical support.
  • Page 8: Trademark Acknowledgments

    Replacement Battery CRA000 BT3V0 00000 Contact your Red Lion distributor or visit our website for selection of Expansion modules, SD cards, adapters and cables. LIMITED WARRANTY (a) Red Lion Controls Inc., (the “Company”) warrants that all Products shall be free from defects in material and workmanship under normal use for the period of time provided in “Statement of Warranty Periods”...
