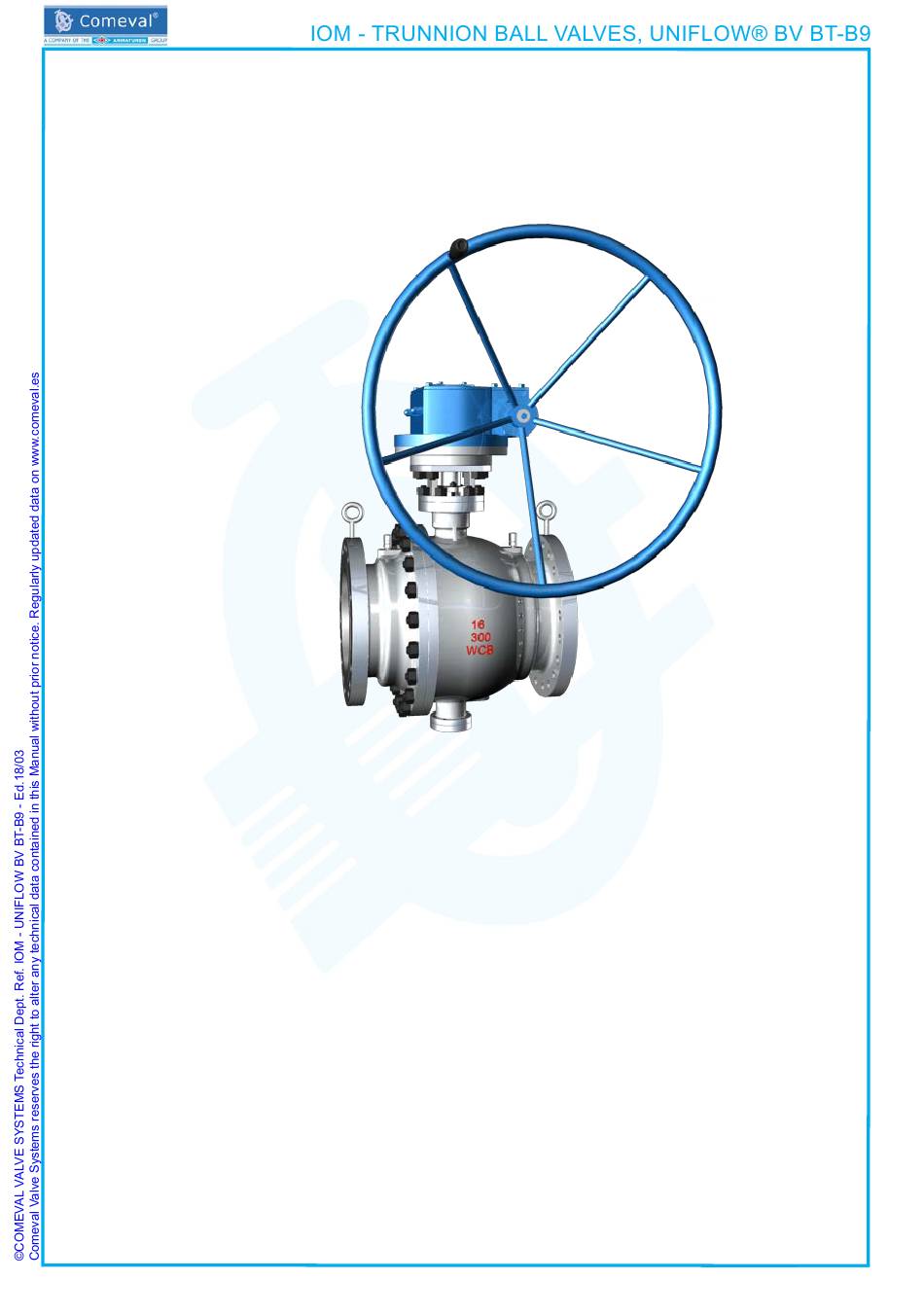

INSTALLATION, OPERATING
AND MAINTENANCE MANUAL
TRUNNION BALL VALVES
2.0 NOTES ON POSSIBLE DANGERS......................... 2
2.1 Significance of symbols ........................................ 2
TRANSPORT ................................................................. 2
4.0 DESCRIPTION ......................................................... 2
4.1 General Description ............................................... 2
4.2 Area of Application................................................. 2
4.3 Operating principles ............................................... 2
4.4 Technical data - remarks ...................................... 2
4.5 Marking/nameplate ................................................ 3
4.6 CE marking ............................................................ 3
UNIFLOW® BV BT-B9
Contents
5.0 INSTALLATION ...........................................................3
5.1 General remarks on installation .................................3
5.2 Assembling additional modules .................................4
6.0 COMMISSIONING ........................................................4
7.0 CARE AND MAINTENANCE .......................................5
8.0 TROUBLESHOOTING .................................................6
9.0 TROUBLESHOOTING TABLE ....................................6
10.0 DISMANTLING THE VALVE .....................................6
11.0 GOODS RETURN & DISPOSAL ............................... 7
12.0 WARRANTY / GUARANTEE .....................................7
13.0 PARTS LIST ...............................................................8
14.0 ANNEXSES
14.1 Declaration of conformity .........................................8
14.2 Data sheet ...............................................................8
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNIFLOW BV BT-B9 and is the answer not in the manual?

Questions and answers

Related Manuals for Comeval UNIFLOW BV BT-B9

Summary of Contents for Comeval UNIFLOW BV BT-B9

  • Page 1 INSTALLATION, OPERATING AND MAINTENANCE MANUAL UNIFLOW® BV BT-B9 TRUNNION BALL VALVES Contents 1.0 GENERAL INFORMATION ON THE MANUAL ..2 5.0 INSTALLATION ............3 2.0 NOTES ON POSSIBLE DANGERS......2 5.1 General remarks on installation .........3 5.2 Assembling additional modules .........4 2.1 Significance of symbols ........

  • Page 2: General Information On The Manual

    1. GENERAL INFORMATION ON THE MANUAL - This Manual provides information on safely using the product, being binding for preservation, storage, handling, trans- port, installation, commissioning, operation, maintenance, repair and disposal, and must be thoroughly observed at any step. - Please contact the supplier or the manufacturer in case of issues which cannot be solved by reference to this Manual. - Any deviation from this Manual and sound engineering practice or modification on the product shall be notified to ma- nufacturer for advice or approval.

  • Page 3: Technical Data – Remarks

    Nameplate description of the valve: Number of notify body EAC marking (compliance with TR/CU 032/2013 & TR CU 010/2011) Manufacturer logo Explosion protected mark for EU free circulation (see separate instructions for code) www.comeval.es Website of manufacturer UNIFLOW® Brand PED 2014/68/EU Directive 2014/68/EU FIG.

  • Page 4: Assembling Additional Modules

    ATTENTION! Welded ends valves: - Ensure compatibility of ends; clean valve and pipe ends carefully, tack-weld the valve on the pipe in four points on both end caps, putting trim away to prevent heat exposure when soft parts, if any, could be affected by heat. Once the welding process is finished, wait until system cools down before inserting the trim back. The installer should take the necessary precautions to prevent thermal stressing/ overheating the valve during welding process. ACTUATOR: - If the valve requires pneumatic, electric or hydraulic actuator, separate actuator Manual shall be also followed. To avoid unnecessary stress and risk of valve break, consider the weight and the relative position of actuator to evaluate its support. Make sure that the actuator is suitable for service particular requirements, valve adaptability, function needed, adequate torque for the valve, adequate speed, need for limit switches, etc. Contact our Techni- cal Department for advice. In case of actuator mounted, disconnect the energy supply before starting work. 5.2 Assembling additional modules Optional accessories (limit switches, extensions, etc.) that are supplied with valves must be fitted as required for their functions as shown in the system plan. 5.3 Requirements at the place of installation - Aggressive environmental conditions may reduce the life span of the product. Consider special construction/protective measures in such a case.

  • Page 5: Care And Maintenance

    7. – CARE AND MAINTENANCE The operator must define maintenance and maintenance-intervals to meet requirements. - Check for body and seat tightness and valve smooth operation without additional tools. ATTENTION! - I n t he e vent o f i nfrequent use, o perate t he v alve a s f requently a s p ossible to a void d eposits o f d irt a nd v alve b locking. - Before disassembling the valve, note chapters 3, 10 & 12.

  • Page 6: Troubleshooting

    Stem seizure Clean/lubricate/replace stem Stem is bended Replace stem Too much pressure or temperature Check the system Too viscous or sticky fluid Technical support always available through our website www.comeval.es or your local distributor. 10. – DISMANTLING THE VALVE ATTENTION! The following points must be observed: - Pressureless pipe system. - Medium must be cool. - Plant must be drained. - Note chapter 3 for proper handling and lifting.

  • Page 7: Warranty / Guarantee

    24 hours. After this time carriers could not assume the derived costs. In case of any deviation in relation to order specifications, please contact us. COMEVAL VALVE SYSTEMS, S.L. y CIA., Soc. Comanditaria Les Rotes, 15 46540 El Puig (Valencia) España Phone +34 961 479 011 · Fax +34 961 472 799 E-mail comeval@comeval.es - www.comeval.es...

  • Page 8: Parts List

    BODY NUT STEM DRAIN VALVE SEALANT INJECTION FITTING GASKET COVER O-RING O-RING BONNET SEALING FERRULE BALL O-RING SEALANT INJECTION FITTING GASKET SEAT SEALING CAPSCREW SEAT 14. ANNEXES 14.1 Declaration of Conformity - DC20_16EN Updated documents on www.comeval.es 14.2 Data Sheet - DS20 Page 8...
