Page 1

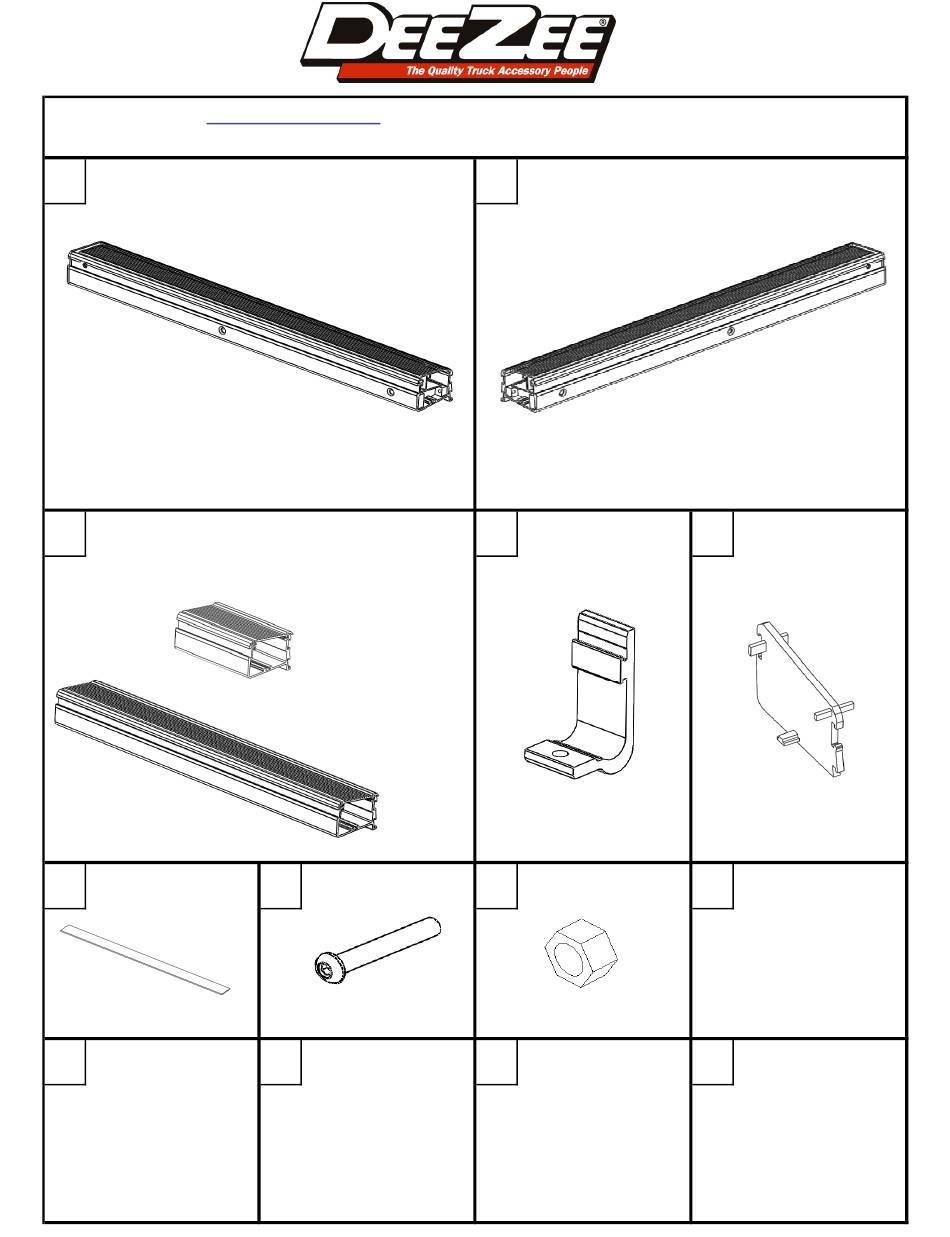

INVIS-A-RACK INSTALLATION INSTRUCTION DZ 951550, DZ 951600, DZ 951800 DRIVER FRONT / PASSENGER REAR PASSENGER FRONT / DRIVER REAR IR-HOUSING-ASSEML X2 IR-HOUSING-ASSEMR BUNGEE BOX MOUNTING HOOK SECTION CAP THERE IS NO BUNGEE BOX IN THE 5 FT. APPLICATION 6 FT.
TOOLS REQUIRED WRENCH UTILITY KNIFE OR SCISSORS 9/16" 7/32" ALLEN WRENCH OR SOCKET RATCHET Peel a portion of the paper back from the adhesive on the foam gasket [F]. Apply the sticky side of the gasket to the bottom of the rack assemblies and bungee boxes (if applicable). Use the lip on the bottom side as a guide to apply the gasket straight with the part.
Page 3
If your application includes bungee boxes, they will need to be assembled. BASE With the lid held almost perpendicular to the base, align the hook on the back of the lid with the channel on the base. Slide the lid onto the base. When the edges are flush, close the lid.
Page 4
Set the first assembly [A] on the bed of the truck on the driver's side near the cab. This step is shown with the small bungee box for the 6' bed. If you are installing on a 5.5' bed, there will not be a bungee box, and you will only use one of the section cap [E] per side.
Page 5
Thread one of the 3/8" nuts [H] onto the 3/8" bolt [G], then thread the bolt part way into the hole on the hold down clamp [D]. There will be 4 of these used per side. Slide the 4 hold down clamps into the bottom channel on the back side.
Page 6
Use the images below to locate the hold down clamps for each truck bed length. 5.5' BED 6' BED 8' BED The end hold down clamps should be For applications with the bungee box, as close to the end as the truck bed as close to the end as the truck bed the hold down clamp needs to bridge the the hold down clamp needs to bridge the...
Page 7
Tighten the bolts using a 7/32" allen wrench/socket. Start with the bolt closest to the cab and work your way to the bolt at other end of the bed. Repeat the process of tightening the bolts to insure that all are completely tighten. Once the 3/8"...
Page 8
Repeat these installation steps for the other side of the bed. To use the Invis-a-rack, pull up on the top section using the cut out provided. There is a safety stop on the side to prevent the rack from slamming down when closing it.
Page 9
Extend the top section until the spring button engages the second hole on the side. 2nd HOLE On the inside of the top section, pull up on the material arm. Extend the material arm until the push button engages. MATERIAL ARM PUSH BUTTON HOLE Repeat these steps for the other side.
Page 10
Once both sides have been extended, press the push button in the cross bar and pull it out. Insert the cross bar into the other side of the rack and engage the push button in the first hole. INSERT BAR ENGAGE PUSH BUTTON HERE...
After engaging the push button, push the two halves of the rack apart, until the other push button engages. Do NOT use the rack with out both push buttons engaged. PUSH THIS WAY PUSH THIS WAY PUSH BUTTON WILL ENGAGE HERE ON THE BACKSIDE When installed on the Ford superduty, the second push button will engage the 2nd hole.
To stow the Invis-a-rack, depress the push button that was engaged in the previous step and pull the two haves of the rack towards each other. PULL THIS WAY PULL THIS WAY PUSH BUTTON ON THE BACKSIDE Disengage the other push button on the cross bar and slide it out. SLIDE BAR THIS WAY PUSH BUTTON...
Page 13
Slide the cross bar back until the push button engages in the first hole. PUSH BUTTON WILL ENGAGE HERE Depress the push button and bring the material arm down. MATERIAL ARM PUSH BUTTON...
Page 14
Depress the push button to lower the remaining part of the rack. Then depress the push button in safety stop to complete the stowing of the rack. PUSH BUTTON PUSH BUTTON Repeat these step for the remaining portions of the rack.
