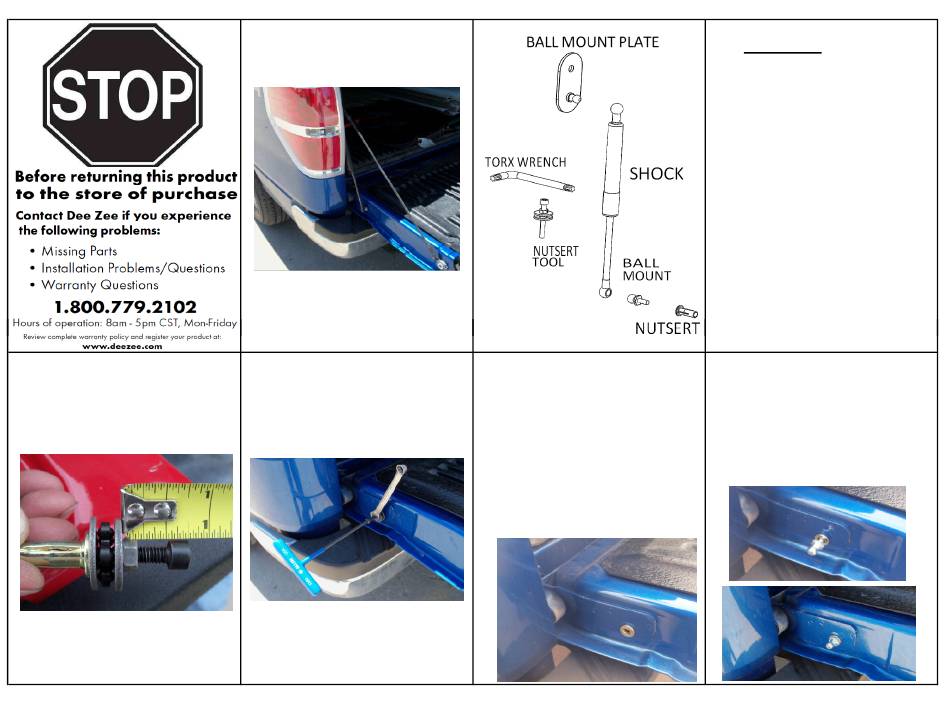

STEP 1)
Adjust the nutsert tool so
there is 3/4" from the washer
to the head of the bolt.
DZ 43200
TAILGATE ASSIST
FORD F-150 2004-2011
STEP 2)
Using a M5 Allen wrench and
a 10mm wrench, install the
nutsert in the opening by the
tailgate pivot point.
The nutsert should NOT be
tightened any more than 9
360 degree turns.
Mark one side of the nut and
count the number of revolutions
to insure the correct number
of full turns.
Overtightening the nutsert
can strip the threads and cause
the nutsert to be unusable.
Remove the nutsert tool
when installation is complete.

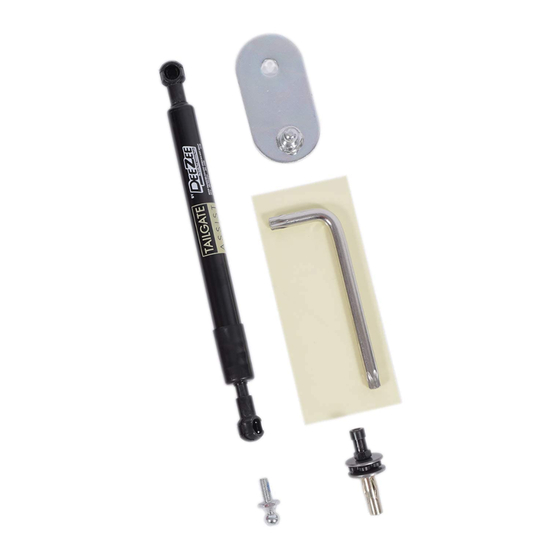

PARTS LIST:
ITEM
QTY
THREAD LOCK TUBE
1
SHOCK
1
BALL MOUNT PLATE
1
NUTSERT TOOL
1
BALL MOUNT
1
NUTSERT
1
TORX WRENCH
1
TOOLS REQUIRED:
T-50 TORX
M5 ALLEN WRENCH
TAPE MEASURE
10MM WRENCH
13MM WRENCH
13MM WRENCH
STEP 3)
Apply thread lock to the threads
of the ball mount.
Install the ball mount into the
nutsert using a 13mm
wrench/socket.
Advertisement
Related Manuals for Dee Zee DZ 43200
Summary of Contents for Dee Zee DZ 43200
- Page 1 DZ 43200 TAILGATE ASSIST PARTS LIST: FORD F-150 2004-2011 ITEM THREAD LOCK TUBE SHOCK BALL MOUNT PLATE NUTSERT TOOL BALL MOUNT NUTSERT TORX WRENCH TOOLS REQUIRED: T-50 TORX M5 ALLEN WRENCH TAPE MEASURE 10MM WRENCH 13MM WRENCH 13MM WRENCH STEP 1)
- Page 2 STEP 4) STEP 5) STEP 6) STEP 7) Use a T50 torx socket or the Install the bolt removed from Install the cable back onto Install the narrow end of the wrench provided to remove the the previous step through the the cable bolt, and the shock on the ball mount cable bolt.
