MARINE SSAS
Confi guration Guide

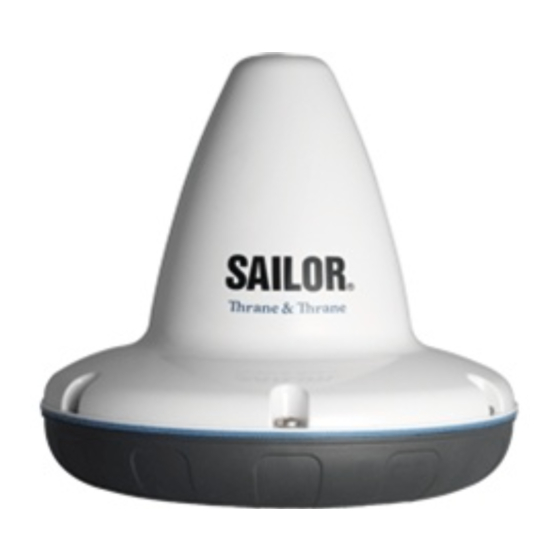

Thrane & Thrane TT-3000SSA
September 30th 2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TT-3000SSA and is the answer not in the manual?

Questions and answers

Related Manuals for Thrane&Thrane TT-3000SSA

Summary of Contents for Thrane&Thrane TT-3000SSA

  • Page 1 MARINE SSAS Confi guration Guide Thrane & Thrane TT-3000SSA September 30th 2004...

  • Page 2: Table Of Contents

    MARINE SSAS CONTENTS 1. REQUIRED COMMISSIONING AND DNID REGISTRATION OF TT-3000SSA 2. PREREQUISITES 3. INITIAL TT-3000SSA CONFIGURATION 3.1. LOG IN AS SYSTEM ADMINISTRATOR 3.2. ENTER IMN (INMARSAT MOBILE NUMBER) 3.3. ROAMING ON ALL FOUR OCEAN REGIONS 4. DNID CONFIGURATION 4.1. MARITIME POSITION FORMAT WITH EXTENDED GPS PRECISION SET-UP 4.2.

  • Page 3: Required Commissioning And Dnid Registration Of Tt-3000Ssa

    This document describes the TT-3000SSA confi guration for use with LocPoint Marine SSAS. The reader is expected to be familiar with the TT-3000SSA Ship Security Alert System. In addition, it is expected that the TT-3000SSA Installation Manual (TT-98-120343-D) has been carefully read and understood.

  • Page 4: Prerequisites

    MARINE SSAS 2. PREREQUISITES The confi guration of the TT-3000SSA requires that the unit is switched on and that a Laptop/PC is connected to the TT-3000SSA through a serial connection. Communication is possible via a Terminal Program - i.e. easyMail (T&T), HyperTerminal (Windows), MiniCom (Unix) etc.

  • Page 5: Log In As System Administrator

    LOG IN AS SYSTEM ADMINISTRATOR When the TT-3000SSA is booted for the fi rst time, the System Administrator password is “sysadm” . Change the password as prompted and make sure to keep the new password for security reasons. The minimum password length is 8 charac- ters.

  • Page 6: Dnid Configuration

    fi guration of the TT-3000SSA’s DNID and member number. It is assumed that the ISP has allocated a global DNID number for the TT-3000SSA. The confi guration of the global DNID account at the LES has the exact settings as described in section 1.

  • Page 7: Predefine Dnids For All Four Ocean Regions

    23456 115 NOTE: Predefi ned DNIDs are recognized by “00” in the S-column. When TT-3000SSA is on air and the LES download the DNID via satellite link, the S-column will change to “01” , which means that the DNID is active and functional.

  • Page 8: Ship Security Alert Message Configuration

    5.1. SSA MESSAGE SET-UP INTRODUCTION The TT-3000SSA can be programmed to transmit SSA Messages DIRECTLY to three different recipients. Each recipient is confi gured as ENTRIES, from entry 0, 1 or 2 (see TT-3000SSA Installation Manual). In case of situation 1 above) Entry 0 will be programmed with the destination address of the ISPS Code or Flag State.
