Summary of Contents for Egger UNIfit!

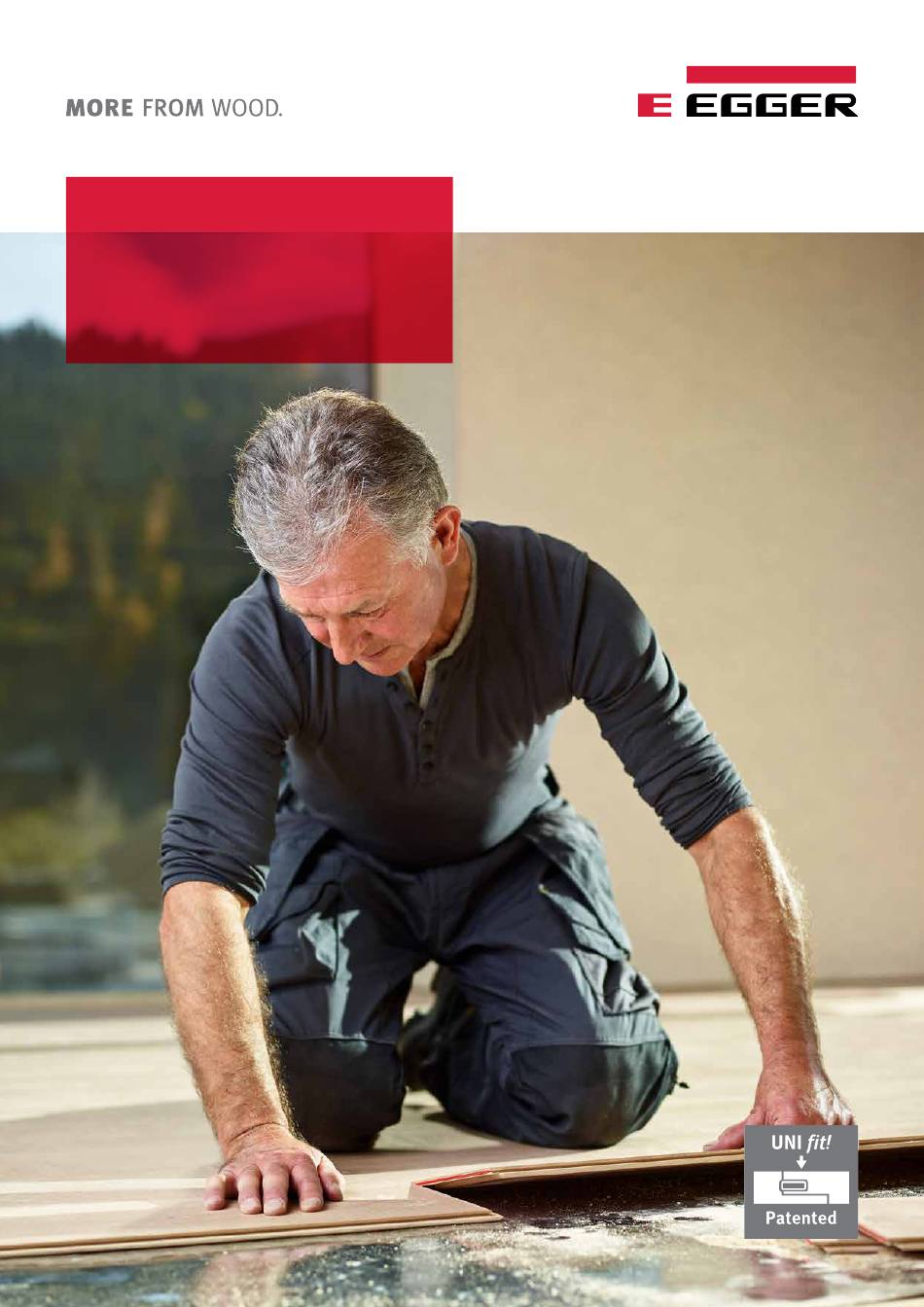

- Page 1 Installation instructions for Egger Laminate and Comfort flooring with UNI fit! installation system...
- Page 2 All sub-floors must be prepared for installation in accordance with regular sub-floor preparation procedures and accepted tolerances within the flooring industry. When assessing whether EGGER Laminate and Comfort flooring is ready to install, attention should be paid, in particular, to the points below. In the case of failure to comply, all guarantee and warranty claims will become void.
- Page 3 Unsuitable sub-floors: EGGER Laminate and Comfort flooring must never be installed on textile floor coverings (e.g. carpet) or sub-floors that are not ready for installation. In the case of failure to comply, all guarantee and warranty claims will become void.
- Page 4 SD value ≥ 75 m, must be installed over the whole area in a trough shape as a moisture barrier. When installing EGGER Laminate flooring with Silenzio underlay laminated to the back and Comfort flooring, no other insulating underlay must be installed.
-
Page 5: Before The Installation
Planning expansion gaps EGGER Laminate and Comfort flooring are subject – like all organic materials – to a certain movement behaviour (shrinking / swelling) due to the changing indoor climatic conditions. Movement of the finished, installed floor is not affected if allowance is made with sufficiently dimensioned expansion joints to all fixed objects. -
Page 6: Installation
Installation 4. Installation ƒ Check the flooring boards for visible damage / defects. Determine which is the tongue and which is the groove (Figure 1 / Figure 2). Start installing the first two rows in the left-hand corner of the room, ensuring that both tongue sides of the first board face the ƒ... - Page 7 Installation Attention! Make sure that the short ends are staggered at least 200 mm (8”). Attention! When installing Long format floor boards, the short ends must be staggered by at least 500 mm. ƒ In the case of products supplied with a bevel and / or with a special pattern (e.g. tiles decor), ensure the offset is even according to the bevel and / or pattern.
- Page 8 Installation Pipes Measure the position of the pipes and mark it on the panel (allow for edge joint). ƒ Drill at least 16 mm more than the diameter of the pipe. ƒ Saw the holes at a 45° angle. ƒ Fit and glue the sawn piece.
-
Page 9: Cleaning And Maintenance
If, despite its robustness, a flooring board gets damaged, then minor damage can be rectified with the system-specific repair paste, EGGER Decor Mix & Fill. If the damage is more serious, a professional installer will be able to replace an entire panel. Separate instructions are available upon request. - Page 10 EGGER Holzwerkstoffe Wismar EGGER Drevprodukt Gagarin GmbH & Co. KG Ezhvinsky proezd, 1 Am Haffeld 1 215010 Gagarin 23970 Wismar Oblast Smolensk Germany Russia +49 3841 301-0 +7 48135 79-300 +49 3841 301-20222 +7 48135 79-311 flooring@egger.com info-ru@egger.com Advice, service and more:...
