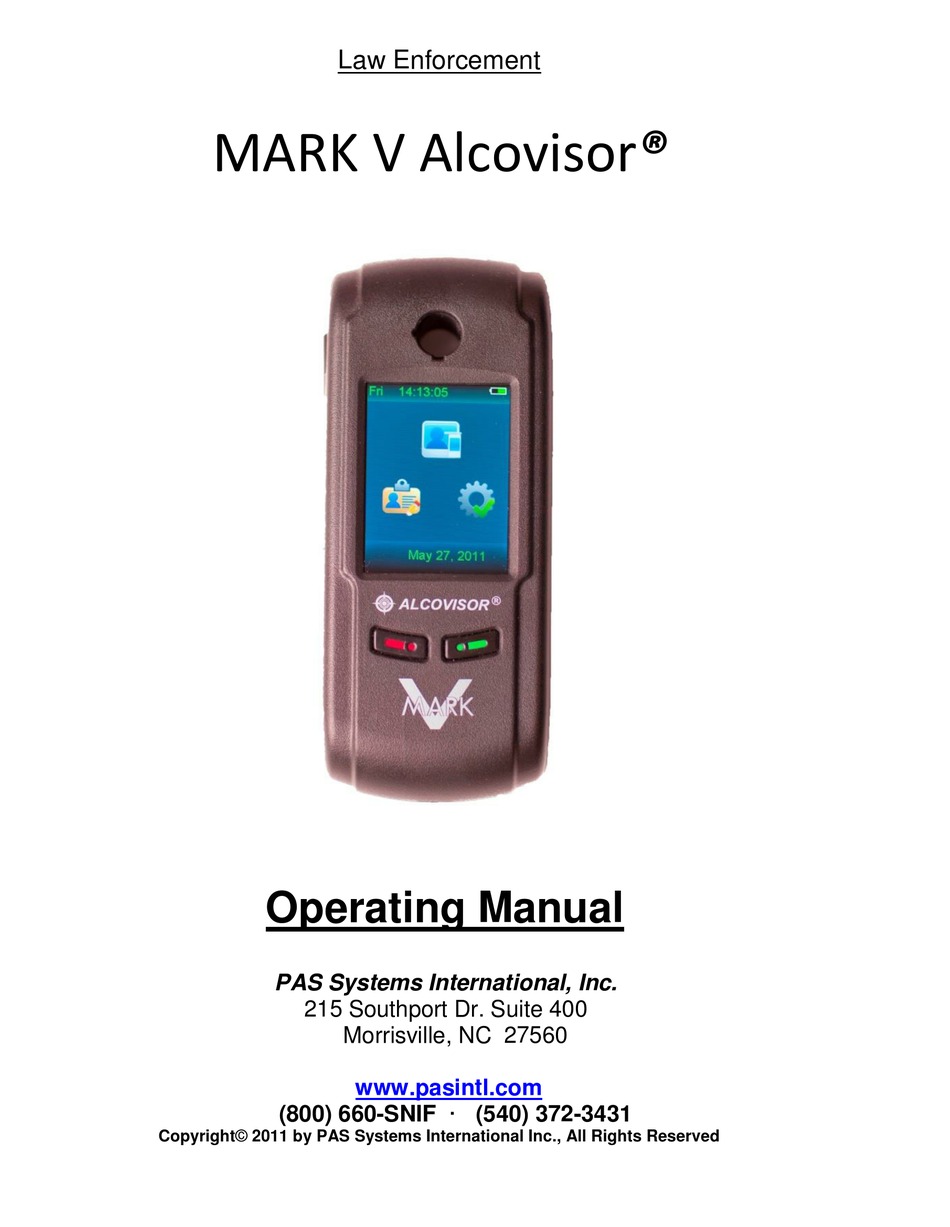

Law Enforcement
MARK V Alcovisor®
Operating Manual
PAS Systems International, Inc.
215 Southport Dr. Suite 400
Morrisville, NC 27560
www.pasintl.com
(800) 660-SNIF · (540) 372-3431
Copyright© 2011 by PAS Systems International Inc., All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MARK V Alcovisor and is the answer not in the manual?

Questions and answers

Summary of Contents for PAS Systems International MARK V Alcovisor

  • Page 1 Law Enforcement MARK V Alcovisor®   Operating Manual PAS Systems International, Inc. 215 Southport Dr. Suite 400 Morrisville, NC 27560 www.pasintl.com (800) 660-SNIF · (540) 372-3431 Copyright© 2011 by PAS Systems International Inc., All Rights Reserved...
  • Page 3: Table Of Contents

    Table of Contents Introduction ........................1 Principles of Operation ....................2 Preparing the MARK V ....................3 Installing Batteries ...................... 3 Turning ON & OFF ...................... 3 Attaching a Mouthpiece ....................3 Settings .......................... 4 Performing a Breath Test ....................5 Conditions for Test Site ....................
  • Page 5: Introduction

    INTRODUCTION The MARK V is an affordable, handheld quantitative breath alcohol testing instruments. The Mark V is a NHTSA certified EBT. It can be used for law enforcement, schools, workplace safety, or medical purposes. The MARK V features easy-to-use automatic sampling or manual sampling procedures.
  • Page 6: Principles Of Operation

    PRINCIPLES OF OPERATION The MARK V uses an electrochemical fuel cell containing two platinum electrodes to detect and measure the concentration of alcohol vapor in expired breath. When breath is drawn into the fuel cell by the sampling system, a small voltage is generated proportionate to the breath alcohol concentration.
  • Page 7: Preparing The Mark V

    The MARK V Alcovisor® Operation This section details the preparation required to use the MARK V, and the steps for performing a breath test. Preparing the MARK V Before using the MARK V, the batteries (AAA) must be installed and the unit turned on.
  • Page 8: Settings

    Settings To access the Settings menu: 1. Turn on the MARK V. 2. When instrument displays “Please Blow”, click the LEFT (red) button until the Main Menu Icon is highlighted, then click the RIGHT (green) button to select. This will take you to the main menu. 3.
  • Page 9: Performing A Breath Test

    Performing a Breath Test Before performing a breath test, several conditions for the test site and the test subject must be verified Conditions for Test Site • The ambient air should be free from alcohol, solvent vapors, and thick tobacco smoke.
  • Page 10: Measuring Brac/Bac

    Measuring Breath Alcohol Concentration (BrAC/BAC) Automatic Sampling 1. Insert a new disposable mouthpiece into the mouthpiece opening. The mouthpiece can be inserted from either side of the device. 2. Turn on the MARK V. 3. Instrument will display “AirCheck Processing” as it checks for residual alcohol in the air or in the fuel cell.
  • Page 11: Manual Sampling

    Manual Sampling This method can be used when the test subject has a diminished lung capacity and cannot activate the Automatic Sampling test. 1. Follow steps 1-5 under Automatic Sampling. 2. Instruct the person being tested to breathe in deeply and blow evenly into the mouthpiece without a break for a minimum of 4 seconds.
  • Page 12: Accessing Test Records

    Accuracy checking should be performed at least once per month to ensure that BAC readings are reliable. If the result of the accuracy test is not within the acceptable range, the unit must be re-calibrated by PAS Systems International, Inc. or by persons who have been properly trained for alcohol detector calibration.
  • Page 13: Wet Bath Accuracy Checking

    Wet Bath Accuracy Checking Using wet bath simulators for accuracy checking has been the accepted method for many years. Breath alcohol simulators are specially designed water-alcohol instruments which provide equilibration of alcohol between water and air at a controlled temperature. Accuracy checking of the MARK V should be performed by authorized persons using any NHTSA approved breath alcohol simulator.
  • Page 14: Dry Gas Accuracy Checking

    Dry Gas Accuracy Testing When using certified dry gas (PAS recommends 0.080% dry gas concentration) for accuracy testing, the alcohol concentration printed on the label of the gas cylinder must be corrected to account for altitude when conducting tests at or above an altitude of 250 feet above sea-level.
  • Page 15: High Altitude Correction Chart

    High Altitude Correction Chart Corrected Value for Elevation from Sea Level Correction Factor 0.080% Dry Gas 0.080 0.078 0.981 0.077 1000 0.962 0.075 1500 0.943 0.074 2000 0.925 0.073 2500 0.907 0.071 3000 0.889 0.070 3500 0.872 0.068 4000 0.854 0.067 4500 0.837...
  • Page 16: Quality Assurance Plan

    Instruments indicating any of the above ERRORS should be returned to PAS Systems International, Inc. for repair. Please call PAS Systems International, Inc. Technical Service Team to describe the problem & for more information on sending the unit in for service.
  • Page 17: Troubleshooting

    Troubleshooting The troubleshooting table that follows is provided to help eliminate confusion and prevent downtime by supplying corrective procedures. If problems persist, call PAS Systems International, Inc. technical service at 800-660-7643. PROBLEM CAUSE SOLUTION The display is only faintly lit The power supply to the Replace all 4 AAA or the unit will not turn on.
  • Page 18: Technical Specifications

    Technical Specifications Product Name: MARK V Sensor: Platinum Electrochemical Fuel Cell Accuracy: Meets DOT specifications +/- 0.005% up to 0.100 % BrAC and +/- 5% above 0.100% BrAC Sample Accuracy: 0.001 % (digital display) Detection Range: 0.000 to 0.400 BrAC Response Time: 10 seconds or less Recovery Time:...
  • Page 19: Safety, Maintenance & Warranty

    Maintenance Repairs of the MARK V may only be performed by PAS Systems International, Inc. or an authorized service technician. Only original MARK V parts may be used. To keep the instrument clean, periodically use a mild disinfectant and a soft cloth on the outside of the case.
  • Page 20 MARK V Alcovisor® Law Enforcement PAS Systems International, Inc. 215 Southport Dr. Suite 400 Morrisville, NC 27560 http://www.pasintl.com Tel: (540) 372-3431 800-660-SNIF Printed 10/12 $5.00...
