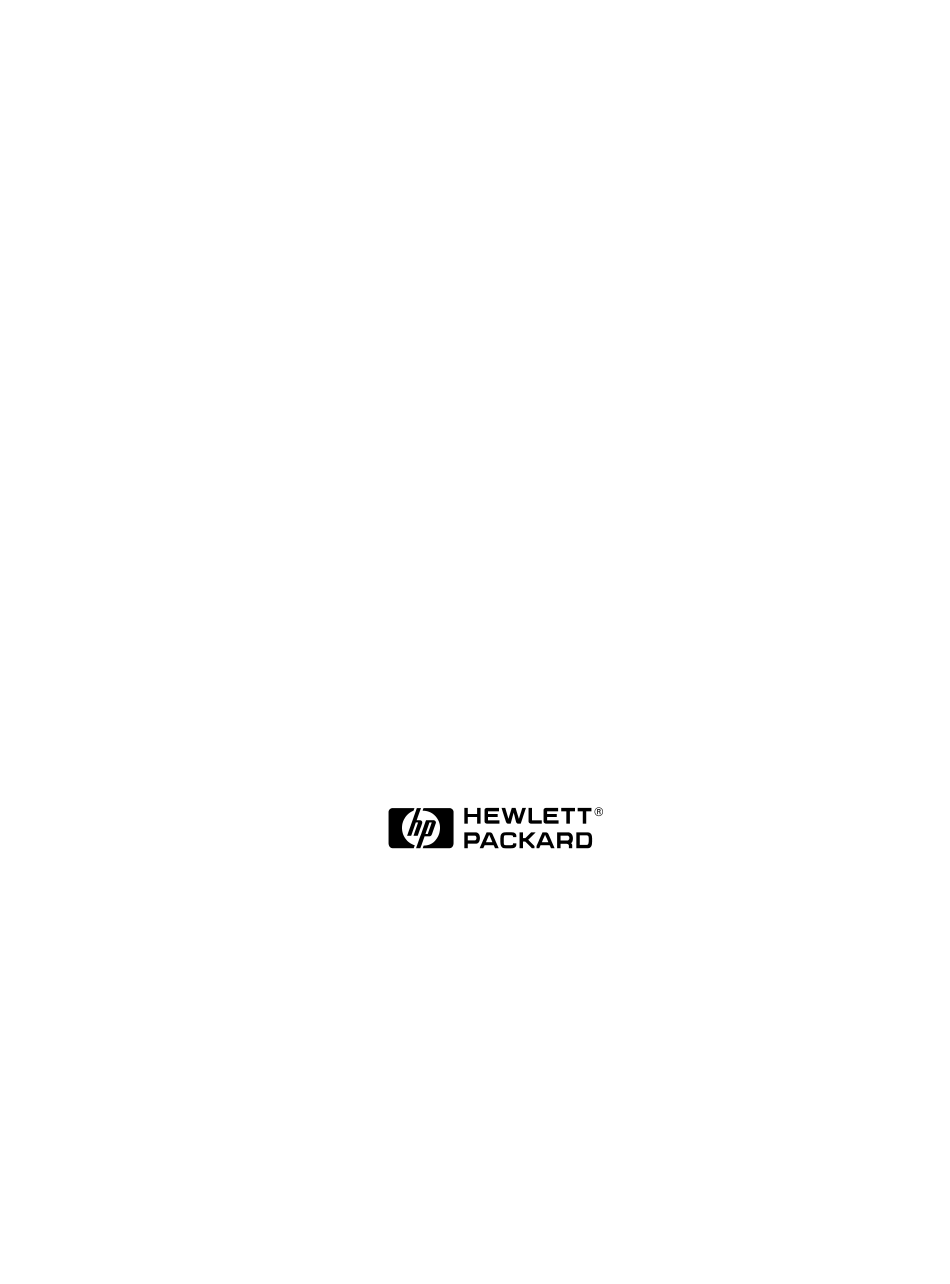

- Page 1 HP J3420B HP-HSC ATM/155 Adapter for Industrial Workstations Installation Guide HP 9000 Networking Manufacturing Part Number: J3420-90001 E0499 U.S.A. © Copyright 1999, Hewlett-Packard Company.
- Page 2 Legal Notices The information in this document is subject to change without notice. Hewlett-Packard makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be held liable for errors contained herein or direct, indirect, special, incidental or consequential damages in connection with the furnishing, performance, or use of this material.
- Page 3 California. ©copyright 1980, 1984, 1986 Novell, Inc. ©copyright 1986-1992 Sun Microsystems, Inc. ©copyright 1985-86, 1988 Massachusetts Institute of Technology. ©copyright 1989-93 The Open Software Foundation, Inc. ©copyright 1986 Digital Equipment Corporation. ©copyright 1990 Motorola, Inc. ©copyright 1990, 1991, 1992 Cornell University ©copyright 1989-1991 The University of Maryland ©copyright 1988 Carnegie Mellon University Trademark Notices UNIX is a registered trademark of The Open...
-
Page 5: Table Of Contents
Contents 1. Before Installing the HP-HSC ATM/155 Adapter Computer Requirements ........13 Package Contents . - Page 6 Contents...
- Page 7 Safety and Regulatory Information Safety Information All inputs/outputs of the J3420B HP-HSC ATM/155 adapter are Safety Extra Low Voltage (SELV) circuits. CAUTION The hardware contains electronic components that can be damaged by static electricity. To avoid damage, follow these guidelines: •...
- Page 8 Power Consumption The J3420B adapter is powered from the HP-HSC connector and has the following maximum power consumption requirements: J3420B Voltage Wattage +5 V 15 W +12 V -12 V Regulatory Information For the United States Federal Communications Commission (FCC) Radio Frequency Interference Statement.
- Page 9 For Canada Canadian regulations ICES-003 Warning: Complies with Canadian Electromagnetic compatibility (EMC) Class A requirements. Pour le Canada Comforme à la class A des normes Canadiennes de compatibilité électromagnetique (CEM). Pour la France Déclarations d’installation et de mise en exploitation d’un matériel de traitement de l’information (ATI), classe A En fonction des niveaux de perturbations radioélectriques émis, définis dans la norme européenne EN 55022 concernant la Compatibilité...
-
Page 11: Before Installing The Hp-Hsc Atm/155 Adapter
Before Installing the HP-HSC ATM/155 Adapter This chapter contains the following sections that discuss what you must do before you install the J3420B HP-HSC ATM/155 adapter in the Model... - Page 12 Before Installing the HP-HSC ATM/155 Adapter 74x Single Board Computer: • “Computer Requirements” on page 13. • “Package Contents” on page 14. • “Tools and Accessories” on page 15. • “Switch Specifications” on page 16. • “Cables” on page 17.
-
Page 13: Computer Requirements
HP-HSC ATM/155 Adapter,” on page 19 includes the steps for fitting the plate. • Up to two HP-HSC ATM/155 adapters can be installed in the 74x Single Board Computer. • The operating system must be HP-UX 10.20 or 11.0. -
Page 14: Package Contents
• The HP ATM Release Note you received with the software. • One ATM Configuration and Troubleshooting Guide (hardcopy or on the Instant Information CD). If any of the items are missing or damaged, contact your HP representative. Chapter 1... -
Page 15: Tools And Accessories
Before Installing the HP-HSC ATM/155 Adapter Tools and Accessories Tools and Accessories You need the following tools to install the HP-HSC ATM/155 adapter: • The IC removal tool supplied with the product (Model 743i only). • The grounding wrist strap supplied with the product. -
Page 16: Switch Specifications
Before Installing the HP-HSC ATM/155 Adapter Switch Specifications Switch Specifications Check the following on the ATM switch: • The switch has SC or ST connectors for use with Multi-Mode Fiber (MMF) connections. • The switch must be UNI 3.0, 3.1, or 4.0 compliant. -
Page 17: Cables
Before Installing the HP-HSC ATM/155 Adapter Cables Cables The HP-HSC ATM/155 adapter uses MMF connections with SC connectors. For connecting to switches with ST connectors, SC-to-ST duplex adapters are necessary. Ensure that you have the following cables: • SC-to-SC cable. - Page 18 Before Installing the HP-HSC ATM/155 Adapter Cables Chapter 1...
-
Page 19: Installing The Hp-Hsc Atm/155 Adapter
Installing the HP-HSC ATM/155 Adapter This chapter describes the steps you must follow to install the J3420B HP-HSC ATM/155 adapter in the Model 74x Single Board Computer... - Page 20 Installing the HP-HSC ATM/155 Adapter system. WARNING Electric shock hazard. Shut down and turn off the system, and disconnect the power cable and all telecommunications network cables before opening the system or accessing the slots. You must turn off the power to the system before you install the adapter.
-
Page 21: Installation Steps
HP-HSC ATM/155 adapter and Model 74x Single Board Computer. Observe all normal antistatic precautions and always handle printed circuit boards carefully. To install the HP-HSC ATM/155 adapter in your 74x Single Board Computer, follow these steps: Step 1. Login as root. - Page 22 Installing the HP-HSC ATM/155 Adapter Installation Steps Step 8. If you are not installing the HP-HSC ATM/155 adapter in a Model 743i Single Board Computer, go to step 9. If you are installing the HP-HSC ATM/155 adapter in a Model 743i sytem, upgrade (if necessary) the boot ROM on the 743i’s CPU board.
- Page 23 Fix the 2-slot face plate to the 74x front panel, by using the four screws you removed in substep a. Step 10. Install the HP-HSC ATM/155 adapter in the 74x Single Board Computer. Working from the rear of your 74x Single Board Computer, you can...
- Page 24 Installing the HP-HSC ATM/155 Adapter Installation Steps a. Position the ATM adapter in the right-hand or center slot, and line up its connector over the connector on the 74x Single Board Computer. b. Press the adapter firmly down to fully engage the connectors.
- Page 25 Installing the HP-HSC ATM/155 Adapter Installation Steps Figure 2-4 Installing a Blank Cover Step 12. See your 74x Owner’s Guide for the steps to reinstall the 74x Single Board Computer in the System Enclosure. Then, go to step 13. Step 13. Reconnect the cables and/or terminators.
-
Page 26: Verifying Hardware Installation
Installing the HP-HSC ATM/155 Adapter Verifying Hardware Installation Verifying Hardware Installation To verify that you have correctly installed the HP-HSC ATM/155 adapter, follow these steps: Step 1. Look at the Carrier LED on the ATM adapter. A green light means that the hardware installation was successful and that the ATM cables are correctly connected.
