RolloHomeControl 9483 Instruction Manual

IP Camera 9483
Instruction Manual for Installation and
Commissioning
Item no.: 3200 41 19
VBD 612-2 (10.14)

1. These instructions...

◆ ...specify the installation and commissioning of
the IP Camera.
1.1 Application of this manual
◆ Please read this manual through completely and
follow all the safety instructions.
◆ Please also read the instruction manuals of the
accessories, if available.
◆ This manual is a component of the product.
Please store it in an easily accessible place.
◆ When passing the IP Camera on to a third party,
this manual must be passed on as well.
◆ If this manual is lost, please request a replace-
ment manual.
◆ Damage resulting from non-compliance with
this manual and safety instructions will void the
guarantee. We shall assume no liability for any
consequential damage.
1.2 Relevant related manuals and instructions
◆ You can find the detailed configuration of the IP
Camera on your HomePilot® under:
http://homepilot.local/camera_de.pdf
or in the downloads section of our website:
www.homepilot.de/downloads
Enter the respective URL into the address field of
your browser.

2. Hazard symbols

The following hazard symbols are used in this manual
to indicate safety instructions:
Danger of fatal electric shock
Danger area / dangerous situation
2.1 Levels of danger and signal words
CAUTION!
This hazard may result in serious injury or death if not
avoided.
ATTENTION!
This hazard may lead to property damage.
2.2 Symbols used and depictions
Depiction Description
Steps to be taken
1.
2.
Itemisation
◆
1) or a) Lists
Please read the respective
manual
i
further useful information

3. Glossary - Definition

HomePilot®
The HomePilot® is a central controller unit for
RADEMACHER radio products. Control is carried out
via a tablet PC or Smartphone.
LAN (Local Area Network)
Abbreviation for a wired, local computer network
WLAN (Wireless-LAN)
Abbreviation for a local radio network
WPS (Wi-Fi Protected Set-up)
Direct and safe connection of two devices in a radio
network with the help of the WPS function.

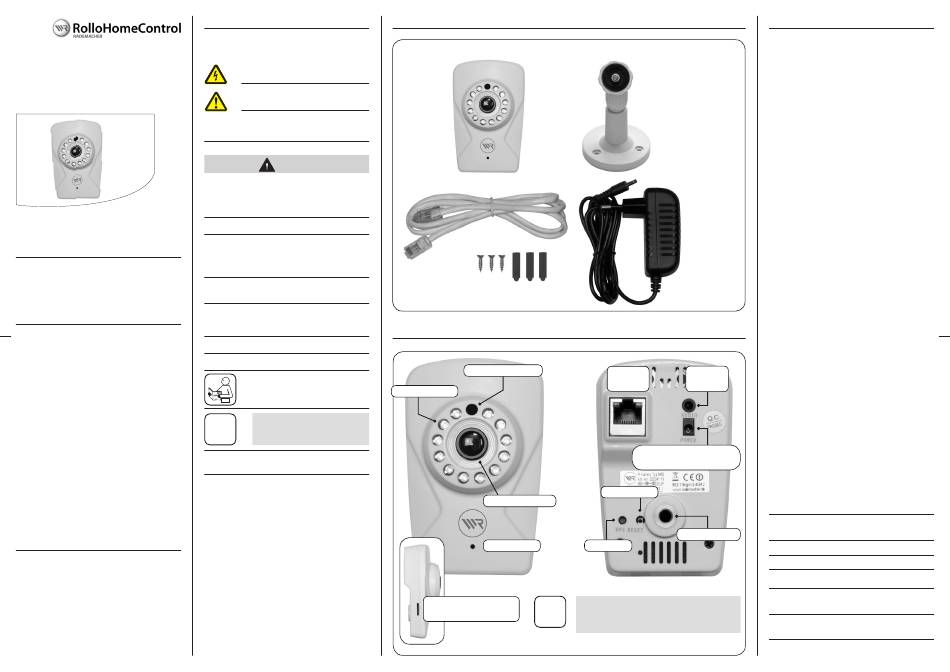

4. Included in delivery

1 x IP Camera 9483
1)
3)
1 x LAN cable
1 x Installation set
5)

5. Overview of the IP Camera

Brightness sensor
Infrared (IR) LEDs
Camera lens
Microphone *
Slot for a micro SD memory i
card *
1 x Tripod with ball head
2)
4) 1 x Mains adaptor
Audio
LAN port
output *
Power supply
Connection of the mains adaptor
RESET key
Tripod socket
WPS key
* Microphone / audio output and micro SD
memory cards are not supported by the
HomePilot®.

6. Functional description

The IP Camera is a network-compatible camera used
to monitor interior rooms. It transmits image data to
the HomePilot®.
The IP Camera can be installed in any desired place
with the enclosed tripod. The moveable mounting
head makes it possible for the IP Camera to be pre-
cisely aligned and focused on the object that is to be
surveilled.
Integrated brightness sensor
For day and night monitoring with infrared LEDs and
automatic image adjustment when dark.
Motion detection
With the help of the integrated digital motion de-
tection function, you can control the automation of
scenes in the HomePilot®.
Configuration and logging-on to the HomePilot®
The IP Camera can be configured via a PC using the
HomePilot® user interface.
Network port (LAN)
The IP Camera must be connected to a free LAN port
on a router to be able to register and use it in the
HomePilot®.
WLAN
Once it has been registered to the HomePilot®, it is
possible to operate the IP Camera via WLAN. For
this, the WLAN access data must be entered via the
HomePilot®'s user interface.
Alternative WLAN connection with WPS.
You can also connect the IP Camera directly to the
WLAN router or to your local radio network by means
of the WPS function. For this, the router must also
support the WPS function.
7. Technical Specifications
Power supply:
Operating voltage: 230 V / 50 Hz
Output voltage: DC 5 V / 2 A
IP Camera general:
Supply voltage: 5 V DC / 2 A
via mains adaptor
Permitted place of
application: only inside
