RolloHomeControl HomePilot 9487 Instruction Manual For Installation

HomePilot® HD Camera (outdoor) 9487
Instruction Manual for Installation and
Commissioning
Item No.: 3200 43 29
VBD 658-2 (06.16)
1. These instructions...
◆ ...specify the installation and commissioning of
the HomePilot® HD Camera (outdoor) 9487.
1.1 Application of this manual
◆ Please read this manual through completely and
follow all the safety instructions.
◆ This manual is a component of the product.
Please store it in an easily accessible place.
◆ When passing the HD Camera on to a third party,
this manual must be passed on as well.
◆ If this manual is lost, please request a replace-
ment manual.
◆ Damage resulting from non-compliance with
this manual and safety instructions will void the
guarantee, see detailed operating instructions
for configuration. We assume no liability for any
consequential damage.
1.2 Related instructions
You can find the detailed configuration of the HD
Camera in the service section of our website:
www.homepilot.de/manuals
Enter the URL into the address field of your browser.
2. Hazard symbols
The following hazard symbols are used in this manual
to indicate safety instructions:
Danger of fatal electric shock
2.1 Levels of danger and signal words
CAUTION!
This hazard may result in serious injury or death if
not avoided.
ATTENTION!
This hazard may lead to property damage.
2.2 Symbols used and depictions
Depiction Description
Steps to be taken
1.
2.
Itemisation
◆
1) or a) Lists
i
further useful information
3. Glossary - Definition
HomePilot®
Central controller unit for RADEMACHER radio
products. Control is carried out via a tablet PC or
Smartphone.
LAN (Local Area Network)
Abbreviation for a wired, local computer network
WLAN (Wireless LAN)
Abbreviation for a local radio network.

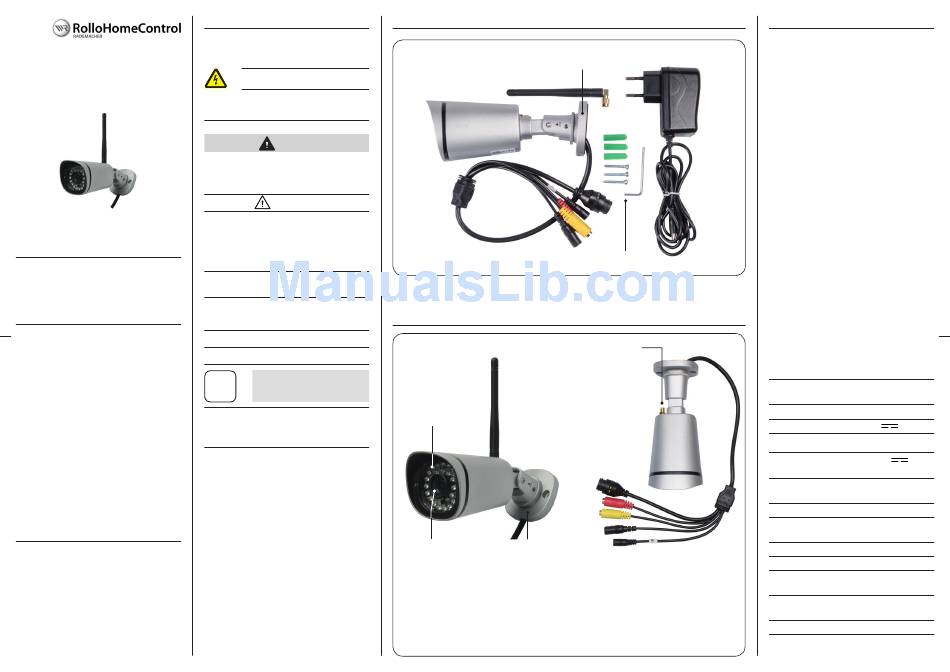

4. Included in delivery
3) 1 x Wall bracket
2) 1 x WLAN antenna
1) 1 x HD Camera 9487
5) 1 x Connecting cable with electrical connectors
5. Overview of the HD Camera 9486
Antenna
Infrared (IR) LEDs,
range approx. 20 m
Camera lens
Wall bracket
4) 1 x Mains adaptor
6) 1 x Installation set
Antenna connection
Connections:
1)
2)
3)
4)
5)
1) LAN
2) Audio input
3) Audio output
4) Power supply connection
5) Reset button
6. Functional description
The HD Camera is a network-compatible camera used
to monitor outside areas. It transmits image data to
the HomePilot®. The HD Camera can be installed in
any desired place with the enclosed wall bracket.
Integrated brightness sensor
For day and night monitoring with infrared LEDs and
automatic image adjustment when dark.
Configuration and logging on to the HomePilot®
The HD Camera can be configured via a PC using the
HomePilot® user interface.
Network port (LAN)
The HD Camera must be connected to a free LAN port
on a router to be able to register and use it in the
HomePilot®.
WLAN
Once it has been registered to the HomePilot®, it is
possible to operate the HD Camera via WLAN. For this,
the WLAN access data must be entered via the HD
Camera's user interface.
First, screw the enclosed antenna onto the HD
Camera.
7. Technical Specifications
Mains adaptor:
Operating voltage: 230 V / 50 - 60 Hz
Output voltage: 12 V / 1 A
HD Camera general:
Supply voltage: 12 V DC
via mains adaptor
Maximum current
consumption: 1 A
Consumption: < 4.2 W
Authorised operating
location: Outside areas
Protection class: II
Protection type: IP66
Permissible operating
temperature: -20°C to + 60 °C
Permissible relative
humidity: 10 % to 80 % rH
Dimensions (L x W x D): 166 x 62 x 65 mm
