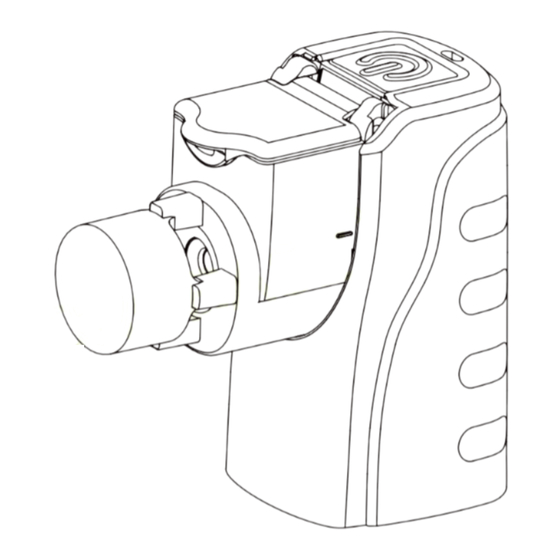

Portable nebulizer
Hide thumbs
Table of Contents

Advertisement

Quick Links

POCKET AIR
R
Portable Nebulizer
Instruction Manual
MBPN002 / MB0500300/ MB05006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MBPN002 and is the answer not in the manual?

Questions and answers

Related Manuals for Pocket Air MBPN002

Summary of Contents for Pocket Air MBPN002

  • Page 1 POCKET AIR Portable Nebulizer Instruction Manual MBPN002 / MB0500300/ MB05006...

  • Page 2: Table Of Contents

    „ System Overview ................6 „ How to set up the Medication cup ..........7 „ Connecting to power supply ..... 8 (Applicable to MBPN002, MB0500300) „ Connecting to power supply ....... 10 (Applicable to MB0500600) „ How to inhale properly ..............12 „...

  • Page 3: X84; General Information

    General information Thank you for choosing our Portable Nebulizers. Pocket Air is a handheld device designed to aerosolize medication for respiratory treatment. Three models of Pocket Air available are listed below. Portable Nebulizer Model No. MB0500300 This model can be operated with two AA batteries or NiMH rechargeable batteries (optional, not included).

  • Page 4: X84; Intended Use

    Intended Use This device is to aerosolize the medication or saline Intended purpose solution and transmit the mist particle into user’s oral cavity and respiratory tract. This device is designed for patients of all ages except for patients who are unconscious, not Intended user breathing spontaneously or have pulmonary edema.

  • Page 5: X84; Safety Precautions

    Safety Precautions READ ALL WARNINGS AND INSTRUCTIONS BEFORE YOU USE THIS DEVICE. As with any medical device, this product may become unusable due to an electrical outage, battery depletion, or mechanical impaction. We recommend that you have spare batteries and a backup device available to you. When you use electrical products, always follow basic safety precautions.

  • Page 6: X84; Explanation Of Symbols

    Explanation of Symbols Symbol Meaning Warning / Caution / Note Class II equipment per IEC 60601-1 Type BF equipment per IEC 60601-1 Protected against foreign objects equal to or greater than 12.5mm in diameter and against drops of water falling at up to 15°...

  • Page 7: X84; Package Contents

    (Single patient use) Mask (Child) Power Adapter Mouthpiece MBPN00204 MBPN00205 MBPN00207 (Available on MBPN002, MB05006) (Single patient use) (Single patient use) USB Cable MBPN00208 (Available on MBPN002, MB05006) • To order replacement parts or accessories, please contact your local supplier.

  • Page 8: X84; System Overview

    Green light on : Ongoing operation Orange light on/ flash : Low power / Malfunction No light : Malfunction Battery Cover ▪ Bottom View Power Cable Jack Bottom cover Power Cable Jack Cover ( Model no. (Model no. ( Model no. MB05006) MB0500300) MBPN002)

  • Page 9: X84; How To Set Up The Medication Cup

    How to set up the Medication cup Clean all parts of your portable nebulizer before use, after each use and after extended storage. 1. Set up the medication cup - Align the buckle on the back of the medication cup with the trenches on the main unit and insert the medication cup.

  • Page 10: (Applicable To Mbpn002, Mb0500300)

    Connecting to power supply (Applicable to MBPN002, MB0500300) Installing batteries This device can be operated with two AA alkaline batteries or two AA nickel-metal- hydride (NiMH) rechargeable batteries. (Secondary lithium batteries shall comply with the requirements of IEC 62133.) - Turn the unit upside down.
  • Page 11 3. As with all electronic devices, it is recommended to keep the product unplugged when not in use. 4. USB cable is only available on model No. MBPN002. - Insert the jack connector of the USB cable into the cable jack on the main unit.

  • Page 12: (Applicable To Mb0500600)

    Connecting to power supply (Applicable to MB0500600) Installing batteries This device can operate on two AA alkaline batteries or two AA nickel-metal-hydride (NiMH) rechargeable batteries. (Secondary lithium batteries shall comply with the requirements of IEC 62133.) - Turn the unit upside down. - Open the bottom cover.
  • Page 13 Using adapter Do not pull or shake the bottom cover during operation. 1. Only use an external adapter that is in compliance with the requirements of IEC60601-1:2005. Please choose DC 5V/1A adapter, and the connection jack should be 9.5mm in length, with an outer diameter of 3.5mm, interior diameter of 1.35mm, and positive polarity.

  • Page 14: X84; How To Inhale Properly

    How to inhale properly 1. Performing the inhalation - Press ON/OFF button on the top to start nebulization (light Indicator 5f5P 5f5P turns green). - Place the mouthpiece between your teeth, with your lips firmly sealed around the mouthpiece. * Accessories such as additional mouthpiece and mask could help to provide a more comfortable inhalation treatment.

  • Page 15: X84; Cleaning And Disinfection

    Cleaning and Disinfection Device should be cleaned and disinfected after every application to prevent the growth of microorganisms, which increases the risk of infection. After every use: Clean the nebulizer after each inhalation. 1. Remove the residual solutions in the medication cup. 2.
  • Page 16 1. Do NOT boil the medication cup directly. 2. Alcohol is highly flammable. Do Not use alcohol within the vicinity of open fire or smoke. The following item can be disinfected by boiled water or alcohol. ● Medication cup Parts below CANNOT be disinfected by boiled water or alcohol. ●...

  • Page 17: X84; Troubleshooting

    Troubleshooting If you have difficulty operating Pocket Air, check the following points: Problem Possible Cause Action Insert new batteries or connect the Low battery power power adapter Faulty connection due to Use rubbing alcohol to clean the stains on the electrodes...

  • Page 18: X84; Specifications

    Storage and delivery condition -20 ~ 70°C, 20 ~ 75 % RH, 800~1060hPa * The optional power adapter and USB cable are available on Model MBPN002, MB05006, and it should be in compliance with the requirements of IEC60601- 1:2005. Contact the nearest dealer for further information.
  • Page 19 Storage and delivery condition -20 ~ 70°C, 20 ~ 75 % RH, 800~1060hPa * The optional power adapter and USB cable are available on Model MBPN002, MB05006, and it should be in compliance with the requirements of IEC60601- 1:2005. Contact the nearest dealer for further information.

  • Page 20: X84; Technical Data

    Technical Data According to the Standard EN 13544-1:2007+A1:2009 "Respiratory therapy equipments - Part 1: Nebulizing systems and their components", Annex CC.3 using multistage cascade impactor to measure particle size. Model MBPN00201 MMAD < 5um Particle Size (MMAD = Mass Median Aerodynamic Diameter) Medication Cup Capacity 6 ml max.
  • Page 21 Technical Data Model MB0500601 MMAD < 5um Particle Size (MMAD = Mass Median Aerodynamic Diameter) Medication Cup Capacity 6 ml max. Noise Less than 50dB (Around 1 meter)
  • Page 22 Guidance and manufacturer’s declaration-electromagnetic emissions The MBPN002, MB0500300 is intended for use in the electromagnetic environment specified below. The customer or the user of the MBPN002, MB0500300 should assure that it is used in such an environment. Emission test Compliance...
  • Page 23 Technical Data Guidance and manufacturer’s declaration-electromagnetic immunity The MBPN002, MB0500300 is intended for use in the electromagnetic environment specified below. The customer or the user of the MBPN002, MB0500300 should assure that it is used in such an environment. IEC 60601...
  • Page 24 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the MBPN002, MB0500300 is used exceeds the applicable RF compliance level above, the MBPN002, MB0500300 should be observed to verify normal operation. If abnormal performance is observed, additional measures my be necessary, such as re-orienting or relocating the MBPN002, MB0500300.
  • Page 25 The MBPN002, MB0500300 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the MBPN002, MB0500300 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the MBPN002, MB0500300 as recommended below, according to the maximum output power of the communications equipment.
  • Page 26 Technical Data In order to regulate the requirements for EMC with the aim to prevent unsafe product situations, the EN60601-1-2 standard has been implemented. The nebulizer MB05006 conforms to the EN60601-1-2:2014 standard for both immunity and emissions. Nevertheless, do not use the nebulizer close to the strong electrical or electromagnetic fields.
  • Page 27 Technical Data Manufacturer’s declaration-electromagnetic immunity The MB05006 is intended for use in the electromagnetic environment (for home healthcare) specified below. The customer or the user of the MB05006 should assure that it is used in such an environment. Electromagnetic Immunity test IEC 60601 test level Compliance level environment-guidance...
  • Page 28 Technical Data Manufacturer’s declaration-electromagnetic immunity The MB05006 is intended for use in the electromagnetic environment (for home healthcare) specified below. The customer or the user of the MB05006 should assure that is used in such and environment. Electromagnetic environment-guidance (for home Immunity test IEC 60601 test level Compliance level healthcare environment) Portable and mobile RF communications equipment should be...
  • Page 29 Technical Data Manufacturer’s declaration-electromagnetic immunity Test specifications for ENCLOSURE PORT IMMUNITY to RF wireless communications equipment The MB05006 is intended for use in the electromagnetic environment (for home healthcare) specified below. The customer or the user of the MB05006 should assure that it is used in such an environment. Compliance Test LEVEL...
  • Page 30 Technical Data Recommended separation distance between portable and mobile RF communications equipment and the MB05006 The MB05006 is intended for use in an electromagnetic environment (for home healthcare) in which radiated RF disturbances are controlled. The customer or the user of the MB05006 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the MB05006 as recommended below, according to the maximum output power of the communications equipment.
  • Page 31 2. Microbase guarantees that the main unit of Pocket Air, if used according to the instructions, will be free from defects in material and workmanship caused by the manufacturing process for the warranty period of 2 years.
