Summary of Contents for Pocket Air MB0500400

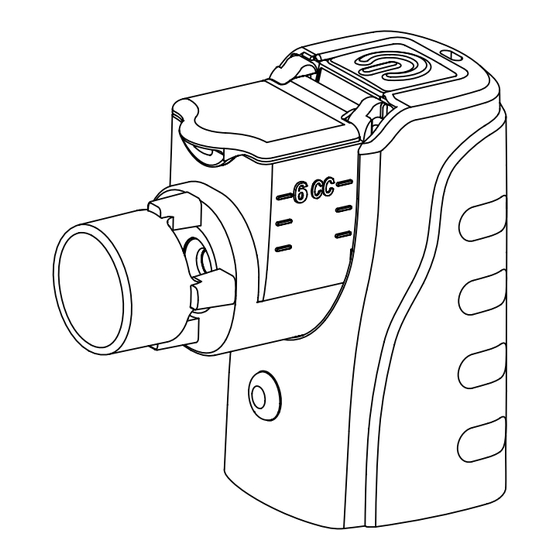

- Page 1 POCKET AIR Portable Nebulizer Instruction Manual MB0500400/ MB0500500...
-
Page 2: Table Of Contents
Safety Precautions................4 Classification and Explanation of Symbols........5 Package Contents and Overview...........6 How to Operate with Batteries ....8 (for Model MB0500500) How to Operate with Adapter ....10 (for Model MB0500400) Cleaning and Disinfection............12 Troubleshooting................14 Specifications................15 Technical Data................16 Optional Parts and Accessories...........21... -
Page 3: Introduction
To help save the planet, we also recommend you to buy AA NiMH rechargeable batteries (optional item, not included) instead of disposable batteries. Portable Nebulizer Model No. MB0500400 This device has extra power option, it can be driven by both two AA batteries and power adapter (optional item, not included). With additional power adapter, helps you to save battery costs in long term. -
Page 4: Intended Use
Intended Use This device is designed to nebulize the solution into Medical purpose an aerosol for respiratory therapy purpose. Legally certified medical experts, such as doctors, nurses, therapists, or patients under the guidance of qualified medical experts. Intended user The user should also be capable of understanding general operation of this device and the content of instruction manual. -
Page 5: Safety Precautions
Safety Precautions READ ALL WARNINGS AND INSTRUCTIONS BEFORE YOU USE THIS DEVICE. As with any medical device, this product may become unusable due to an electrical outage, battery depletion, or mechanical impaction. We recommend that you have spare batteries and a backup device available to you. When you use electrical products, always follow basic safety precautions. -
Page 6: Classification And Explanation Of Symbols
Classification and Explanation of Symbols Symbols Meaning Warning / Caution / Note Class II equipment per IEC 60601-1 Type BF equipment per IEC 60601-1 Protected against foreign objects equal to or greater than 12.5mm in diameter and against drops of water falling at up to 15°... -
Page 7: Package Contents And Overview
Replace any damaged parts before you use this device. In the case of missing parts, malfunction or damage, please contact the store where you purchased from or the nearest dealer. 1. Main unit 2. Medication cup (MB0500400/ MB0500500) (MB0500301) POCKET AIR Portable Nebulizer Instruction Manual MB0500400/ MB0500500 3. -
Page 8: System Overview
Green light on : Ongoing operation Orange light on/ flash : Low power / Malfunction No light : Malfunction Battery Cover ▪ Bottom View ▪ Bottom View ( Model no. MB0500400) (Model no. MB0500500) Power Cable Jack Power Cable Jack Cover... -
Page 9: How To Operate With Batteries
How to Operate with Batteries (on model MB0500500) This device can operate on two AA alkaline batteries or two AA nickel-metal-hydride (NiMH) rechargeable batteries. (Secondary lithium batteries shall comply with the requirements of IEC 62133.) Clean all parts of your portable nebulizer before use, after each use and after extended storage. - Page 10 4.Inhalation - Press ON/OFF button on the top to turn on the device (light Indicator turns on in green). - Place the mouthpiece between your 5f5P teeth, with your lips firmly sealed around the mouthpiece. *If you use a mask, place the mask over your mouth and nose.
-
Page 11: How To Operate With Adapter
How to Operate with Adapter (on model MB0500400) 1. Only use an external adaptor that is fulfilled in compliance with the requirements of IEC60601-1:2005. Please choose DC 5V/1A adapter, and the connection jack should matches a plug with outer diameter of 3.5mm, interior diameter of 1.35mm, 9.5mm in length and positive polarity... - Page 12 4. Inhalation - Press ON/OFF button on the top to turn on the device (light Indicator turns on in green). - Place the mouthpiece between your 5f5P teeth, with your lips firmly sealed around the mouthpiece. * If you use a mask, place the mask over your mouth and nose.
-
Page 13: Cleaning And Disinfection
Cleaning and Disinfection If the device is not cleaned and disinfected correctly and frequently as indicated, microorganisms may remain in the unit and cause risk of infection. After every use: Clean the medication cup with distilled water after each inhalation. 1. - Page 14 ● Medication cup Parts below are NOT able to be disinfected by boiled water or alcohol. ● Power adapter* (only available on Model MB0500400) ● Main unit *The adapter figure might be different from above. Do NOT rinse or immerse the main unit in any liquid.
-
Page 15: Troubleshooting
Fault connection between Check and reconnect the adapter and main unit adapter to main unit (on Model MB0500400) Refer to Set up the medication The medication cup is not cup procedure to re-install the installed properly... -
Page 16: Specifications
Storage and delivery condition -20 ~ 70°C, 20 ~ 75 % RH, 800~1060hPa * The optional power adaptor is only available on Model MB0500400, and it shall be fulfilled in compliance with the requirements of IEC60601-1:2005. Contact to the nearest dealer for further information.Secondary lithium batteries shall comply with the requirements of IEC 62133. -
Page 17: Technical Data
Technical Data According to the Standard EN 13544-1:2007+A1:2009 "Respiratory therapy equipments - Part 1: Nebulizing systems and their components", Annex CC.3 using the multistage cascade impactor method to measure the particle size. MMAD 4.21um Particle Size (MMAD = Mass Median Aerodynamic Diameter) Medication Cup Capacity 6 ml max. - Page 18 Guidance and manufacturer’s declaration-electromagnetic emissions The MB0500400, MB0500500 is intended for use in the electromagnetic environment specified below. The customer or the user of the MB0500400, MB0500500 should assure that it is used in such an environment. Emission test Compliance...
- Page 19 Technical Data Guidance and manufacturer’s declaration-electromagnetic immunity The MB0500400, MB0500500 is intended for use in the electromagnetic environment specified below. The customer or the user of the MB0500400, MB0500500 should assure that it is used in such an environment. IEC 60601...
- Page 20 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the MB0500400, MB0500500 is used exceeds the applicable RF compliance level above, the MB0500400, MB0500500 should be observed to verify normal operation. If abnormal performance is observed, additional measures my be necessary, such as re-orienting or relocating the MB0500400, MB0500500.
- Page 21 The MB0500400, MB0500500 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the MB0500400, MB0500500 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the MB0500400, MB0500500 as recommended below, according to the maximum output power of the communications equipment.
-
Page 22: Optional Parts And Accessories
Power Adapter MBPN00204 MBPN00205 • To order replacement parts or accessories, please contact your local supplier. • The Medication cup and masks are capable of Model No. MB0500400/ MB0500500. MedNet GmbH Borkstrasse 10, 48163 Muenster, Germany MicroBase Technology Corp. No. 756, Jiadong Rd., Bade Dist., Taoyuan City, 33464, Taiwan. -
Page 23: Warranty Card
Warranty card Product Name Portable Nebulizer Model Number MB0500400 MB0500500 Serial Number Purchase Date Dealer 1. Please get a shop stamp from your dealer, put the purchase date on this card, and keep this card with you. Presentation of this card will be required when a warranty service is requested.
