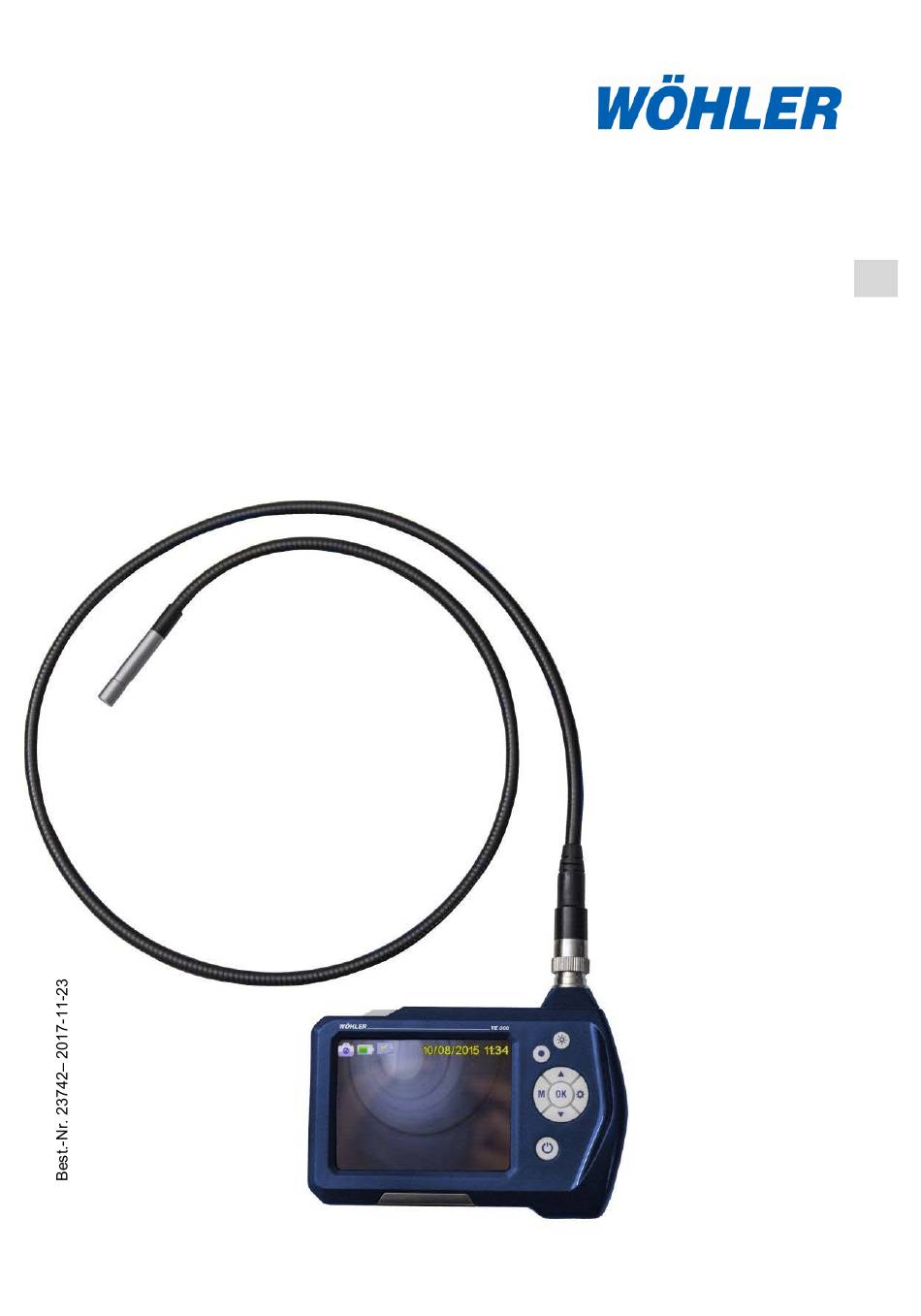

- Page 1 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com Operating manual Video Endoscope Wöhler VE 300...
-
Page 2: Table Of Contents
Contents Contents General information ......19 Technical Data ........21 Notes ............ 22 Notes ............22 Safety information ........22 Component explanation ..... 23 Buttonpad ..........24 Before the inspection ......24 Connecting the Probe........24 Charging the battery ........25 Inserting the SD memory card ..... -
Page 3: General Information
General information General information Scope of supply Device Scope of supply Wöhler VE 300 Video Endoscope Video Endoscope Probe (1m) with mini camera head Ø 8,2 Micro SD memory card, 8 GB, with USB- card-adapter Video-out-cable Micro-USB-cable with mains adapter... - Page 4 General information Information on disposal Electronic equipment does not belong into domes- tic waste, but must be disposed in accordance with the applicable statutory provisions. You may hand in any defective batteries taken out of the unit to our company as well as to recycling places of public disposal systems or to selling points of new batteries or storage batteries.
-
Page 5: Technical Data
Technical Data Technical Data Description Data Monitor 3,5 inch Color LCD Monitor Resolution 320 x 240 pixel Video Resolution 320x240 pixel, 640x480 pixel, 1280x720 pixel Image Resolution 640x480 pixel, 1600x1200 pixel, 2048x1536 pixel Menu languages English, German, Spanish, French, Russian, Italian, Dutch Ports AV-Out,... -
Page 6: Notes
Notes Notes Notes ATTENTION! Not following this note can cause permanent damage to the device. NOTE! Useful information Safety information Attention! Do not expose the optics to sudden temperature changes. If the lens have heated while working, there is the danger of bursting when it comes into contact with cold water. -
Page 7: Component Explanation
Component explanation Component explanation Fig. 8: Components, side view Explanation Power button with battery status Buttonboard Probe connector Camera head Flash Light Port compartment... -
Page 8: Buttonpad
Buttonpad Buttonpad Illumination-button Snap-button Settings-button 10 M-button (Mode) 11 OK-button 12 UP/Zoom-button 13 Down/Rotate-button 14 Power button with battery status Fig. 9: Buttonpad Before the inspec- tion Connecting the Probe Loosen the union nut of the probe connection and remove the probe (see fig. 1 part 3) ... -
Page 9: Charging The Battery
Charging the battery Press the ON/OFF-button to switch the Video Endoscope on and off. When the Wöhler VE 300 is switched on, the ON/OFF-button will shine blue. If the battery voltage is low, the ON/OFF-button will shine red. ... -
Page 10: Change Settings
Before the inspection 6.4.2 Change settings Click Settings-button , to enter Photo set- tings in Photo Mode or Video settings in Video Mode. Click Settings-button and then the Mode- button, to enter General Settings. Click Up or Down-button to go to the parame- ter. - Page 11 Before the inspection The following options can be selected:...
-
Page 12: Flash Light
Flash light Flash light Switching on the Flash For an inspection in a dark environment the Flash light should be switched on. light Switch the Flash light on and off by pressing the Flash Light Button, see fig. 1, part 5. 7.1.1 Switching on the LEDs ... -
Page 13: Display
Display Display Fig. 13: Display in normal mode Mode Photo Video Playback Battery condition Micro SD memory card plugged in / No Card Date Time When returning into normal mode, operating instructions will be displayed for about 5 sec- onds. Displays Freeze image ... -
Page 14: Snap Photos
Snap photos enlarged image. When the up-button is clicked four times, the original image will be displayed again. Rotate image Click down-button to rotate the screen image 180 degrees. Snap photos Click the M-Button until the photo icon ap- pears on the screen. -
Page 15: Playback
Playback Playback Click the Mode-Button until the playback icon appears on the screen. On screen the file type will appear on the left (1) (photo or video) and the file number (2) and the total number of saved files (3) will appear on the right. -
Page 16: Declaration Of Conformity
TestEquipmentDepot.com Declaration of conformity The product Wöhler VE 300 Video Endoscope complies with the button safety requirements set down in the guidelines of the Council for the Harmonization of the Legal Requirements of the Member States in relation to the electromagnetic compatibility.
