ReelCraft T-1116-08 Operating Instructions Manual

Operating Instructions

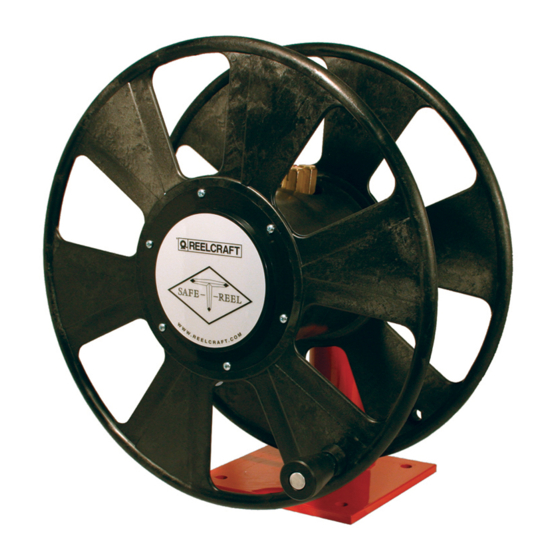

Safe-T-Reel Air / Water Hose Reels
Model Numbers:
T-1116-08 T-1118-12
Dimensions
A B
19" 18"
B
A
Four 1/2" diameter mounting holes
SAFETY
Personal injury and/or equipment damage may result if proper safety
precautions are not observed.
• Bleed fluid/gas pressure from system before servicing reel.
• Before connecting reel to supply line ensure that supply line
pressure does not exceed maximum rated working pressure of
reel.
• Ensure that reel is properly installed before connecting to supply
line (see installation instructions).
• Do not wear loose fitting clothing while operating reel.
• Be aware of other personnel in work area.
• Pull hose from reel by grasping the hose itself, not the work
device.
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
C D E
6" 12-1/2" 21-3/4"
E
D
C
IMPORTANT
Read this manual carefully before installing, operating or
servicing this equipment.
• If a leak occurs in the hose or reel, remove supply line pressure
immediately.
• If reel ceases to unwind or rewind, remove pressure immediately.
Do not pull or jerk on the hose!
• Treat and respect the hose reel as any other piece of machinery,
observing all common safety practices.
Form# 1103-801 Rev: 7/2018
