hopf Elektronik GmbH 7052RC Technical Manual

Network management server
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

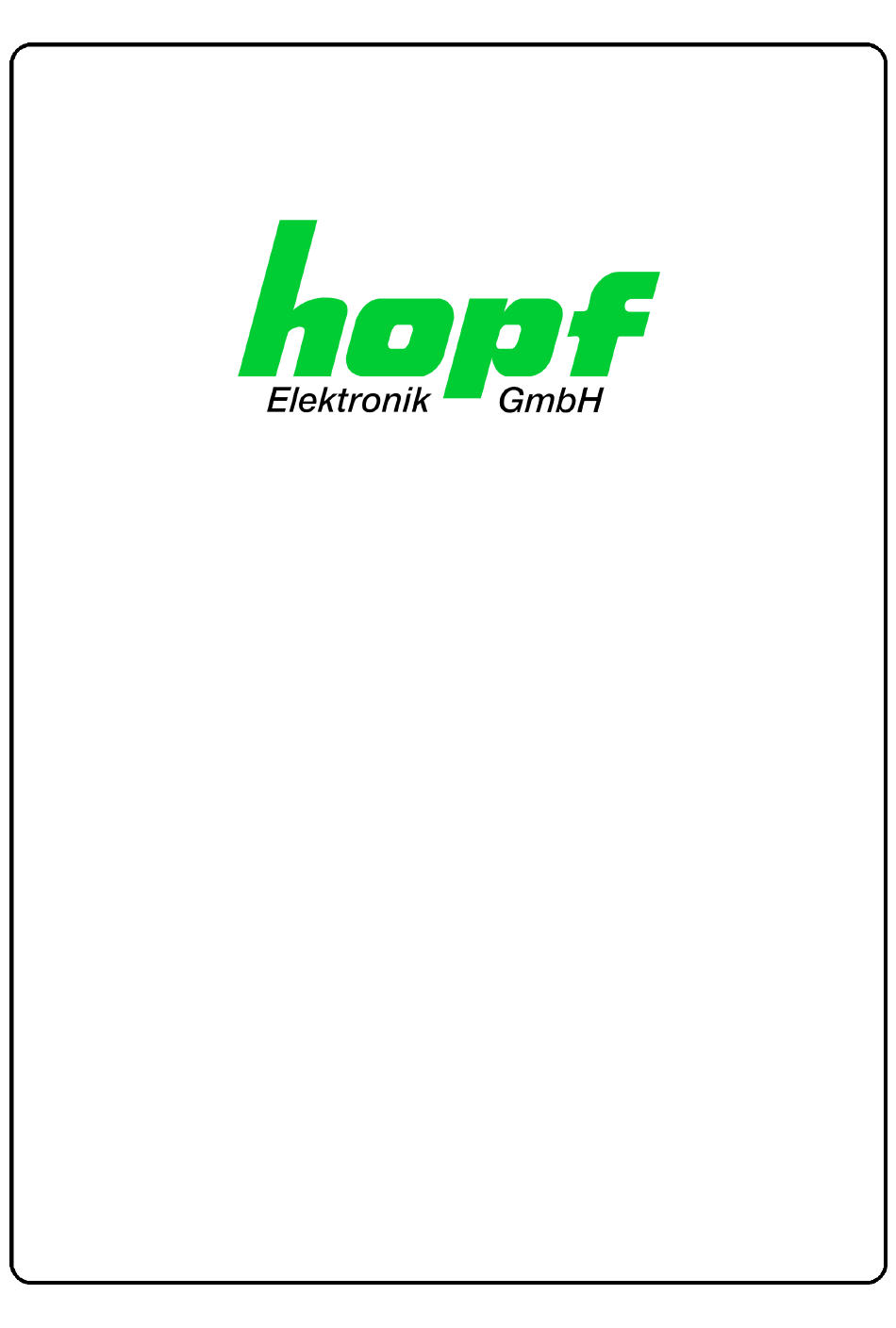

Industriefunkuhren
_____________________________________________________________
Technical Manual
Network Management Server
Model 7052RC
Version: 01.00 - 29.01.2018
_____________________________________________________________
Valid for
ENGLISH
SET
Version: 01.xx
FIRMWARE
Version: 01.xx
Version: 01.xx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7052RC and is the answer not in the manual?

Questions and answers

Related Manuals for hopf Elektronik GmbH 7052RC

Summary of Contents for hopf Elektronik GmbH 7052RC

  • Page 1 Industriefunkuhren _____________________________________________________________ Technical Manual Network Management Server Model 7052RC ENGLISH Version: 01.00 - 29.01.2018 _____________________________________________________________ IMAGE FIRMWARE Valid for Version: 01.xx Version: 01.xx Version: 01.xx...
  • Page 2 2 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
  • Page 3 Functionality Disregard may impact function of system/device. Information Notes and Information. 7052RC Network Management Server - V01.00 3 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
  • Page 4 EU directive - especially with regard to protection of health and safety for the operator and the user - and may be released for sale within the common markets. 4 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH...

  • Page 5: Table Of Contents

    1.2.1.3 Status LEDs ..........................15 1.2.1.4 USB Female Connector (Host) ....................16 1.2.1.5 LAN Interface ETH0/ETH1......................16 2 System Behaviour of Network Management Server 7052RC ........17 2.1 Boot Process ......................17 2.2 Reset- (Default) Button .................... 17 2.3 Firmware Update ..................... 18 2.3.1 Firmware Update Board 7052RC (WebGUI: Device) ............
  • Page 6 6.3.6.2 External Alarms .......................... 79 6.3.6.3 ERROR Overview ........................80 6 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
  • Page 7 ABLE OF ONTENTS 7 SSH and Telnet Basic Configuration ................. 82 8 Technical Data ......................83 9 Factory Defaults of Board 7052RC ................84 9.1 ALARM ........................85 9.2 DEVICE ........................85 10 Glossary and Abbreviations ..................86 10.1.1 Time-specific expressions ....................86 10.2 Abbreviations ......................
  • Page 8 ABLE OF ONTENTS 8 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 9: Description Network Management Server 7052Rc

    The Board 7020RC placed in this system 7001RC must have at least the firmware version 07.06 if the Board 7052RC is to be used as a replacement for the Board 7050RC The Board 7052RC is equipped with two Ethernet interfaces (ETH0 and ETH1) 10/100/1000 Base-T (autosensing).
  • Page 10 Extensive parameters are provided to suit the conditions of individual applications by means of a variety of access / configuration channels. • Depending on the clock system the accessibility of the Board 7052RC can be adjusted hopf in the network via the keyboard of the...
  • Page 11 • Customized security banner • External monitoring in- and outputs 7052RC Network Management Server - V01.00 11 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 12: Overview Of Assembly Of Board 7052Rc

    7052RC ESCRIPTION ETWORK ANAGEMENT ERVER Overview of Assembly of Board 7052RC 12 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 13: Dip Switch Ds1

    Elektronik GmbH. hopf Elektronik GmbH MAC addresses begin with 00:03:C7:xx:xx:xx. 7052RC Network Management Server - V01.00 13 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 14: Front Panels Of Board 7052Rc

    Front Panels of Board 7052RC Board 7052RC 3U/4HP 14 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 15: Overview Of Functions Of The Front Panel Elements

    Description (Red) Standard case, Board 7052RC is working. 3Hz flashing Fail-safe basic parameterization is not available (emer- gency operation mode) Primary CPU of Board 7052RC does not show any ac- tivity. Operation-LED Description (Green) Standard case, Board 7052RC is working 1Hz flashing Board 7052RC is booting the operating system.

  • Page 16: Usb Female Connector (Host)

    TX_DA- RX_DB+ BI_DC+ BI_DC- RX_DB- BI_DD+ BI_DD- 16 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 17: System Behaviour Of Network Management Server 7052Rc

    During the boot process the board booting its operation system and is therefore not available via LAN. Reset- (Default) Button The Board 7052RC can be reset by the Reset-(Default) Button behind the front panel of the board. The Reset-(Default) Button is accessible with a thin object through the small drilling in the front panel.

  • Page 18: Firmware Update

    ERVER Firmware Update The Board 7052RC is a multi processor system. For this reason a firmware update always consists of a so called Software SET including two (2) programs versions for the image and H8 programs defined by the Set-Version which both needed to be loaded into the board.
  • Page 19 1. Log in as Master in WebGUI of the board. 2. Select in the Device tab the menu item H8 Firmware Update. 3. Select the file with the file extension .mot for Board 7052RC via the selection win- dow (Example: H8_8030_vXXXX_128.mot).

  • Page 20: Activation Of Functions (Activation Key)

    These functions are only available after entering a valid activation key depending on the serial number of the particular Board 7052RC, (not depending on the serial number of the entire clock system). The serial number can be found in the WebGUI via Device / Serial Number: 8030xxxxxx.

  • Page 21: Implementing Board 7052Rc In A Modular Hopf 19" Base System

    Damages to the board caused by improper handling are not covered by factory guaranty. System Requirments The board 7052RC is a function boards for the system bus. Thus the systems in which these board should be operated needed to provide an appropriate slot.

  • Page 22: Handling Of Board / Esd Protection

    Under no circumstances may two LAN with the same board number be integrated into one Base System. This leads to unspecified faults on these two boards! The coding of the board number is effected on Board 7052RC via DIP switch bank (DS1). 22 / 98 7052RC Network Management Server - V01.00...

  • Page 23: Setting The Board Number For Base 7001Rc

    Setting the Board Number for Base 7001RC A maximum number of 31 LAN boards (also different types – e.g. board 7052RC and board 7274RC) can be configured in a System 7001RC. The board number is set via the DIP switch bank (DS1 / SW1-5) for unique identification in the Base System.

  • Page 24: Creating The Network Connection

    LAN board to the network. Connecting a network to an incorrectly configured LAN Board (e.g. dupli- cated IP address) may cause interference in the network. The Board 7052RC is supplied with: ETH0 with static IP address IP address: 192.168.0.1 Netmask: 255.255.255.0...

  • Page 25: Network Configuration For Eth0 Via Lan Connection Through Hmc

    After connecting the system to the power supply and creating the physical network connection to the LAN interface of the Board 7052RC, the device can be searched for on the network via Software. Then the base LAN parameters (IP address, netmask and gateway or DHCP) may be adjusted in order to allow accessibility of the board for other systems in the network.
  • Page 26 The determination of different LAN boards of the same type is made via Hardware Address (MAC Address). For an extended configuration (WebGUI) of the LAN Board 7052RC via a browser the follow- ing base parameters are mandatory: •  e.g. hopf7052RC Host Name •...
  • Page 27 Apply . Afterwards the entry of the Device Password is re- Board 7052RC via Button quested: Device Password <device> is set for LAN boards 7052RC on delivery. So no further en- try is required here – click on the but- ton OK to confirm.

  • Page 28: Network Configuration For Eth0 Via The Base System

    Network Configuration for ETH0 via the Base System The only configuration that is carried out on Board 7052RC via the Base System is to enable it to be reachable on the network via ETH0. All other configurations on the Board are carried out over the WebGUI.
  • Page 29 Example: Desired network mask: 255.255.255.128 Value to be entered: 7052RC Network Management Server - V01.00 29 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 30: Input Functions Of Base Systems 7001Rc

    B O A R D N A M E : " M A N A G E _ _ " S E T > Y / PARAMETER BOARD 03 OF 25  board 03 of 25 implemented  board type 7052RC with board number 01 7052RC NO.: 01  M = monitoring, I = no monitoring STATUS: M (I)/- (E) ...

  • Page 31: Entry The Static Ipv4 Address / Dhcp Mode

    For the purposes of manipulation, the individual bits of the new byte are to be entered on the second line using "0" and "1". The complete Control Byte must always be recorded and con- firmed with the ENT key. 7052RC Network Management Server - V01.00 31 / 98 hopf Elektronik GmbH Nottebohmstr.

  • Page 32: Entry The Parameterbyte 01 (No Function At Present)

    , insofar the Base System provides remote com- munication. 32 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 33: Http/Https Webgui - Web Browser Configuration Interface

    This Chapter briefly describes the basic operation of the WebGUI installed on the Board. 6.1.1 Requirements hopf • Ready-for-operation Base System with implemented Board 7052RC • Board configured for network operation (see Chapter 4 Network Configuration for ETH0 via LAN Connection through and 5 Network Configuration for ETH0 via the Base System) •...

  • Page 34: General - Introduction

    General – Introduction Board 7052RC should be accessible to a web browser if it has been set up correctly. Enter the IP address - as set up on the Board earlier - or the DNS name on the address line <http://xxx.xxx.xxx.xxx>...

  • Page 35: Login And Logout As A User

    Click on the Logout button to log out. The WebGUI is equipped with session management. If a user does not log out, he or she is automatically logged off after 10 minutes of inactivity (idle time). 7052RC Network Management Server - V01.00 35 / 98 hopf Elektronik GmbH Nottebohmstr.

  • Page 36: Navigation Via The Web Interface

    After successful login, depending on the access level (device or master user), changes can be made to the configuration and saved. Users logged in as "master" have all access rights to Board 7052RC. Users logged in as "device" do not have access to: •...

  • Page 37: Entry Or Changing Data

    However, the modifications are not permanently saved yet. This requires to access the WebGUI with the new network parameters again and to save the data with Save permanently. 7052RC Network Management Server - V01.00 37 / 98 hopf Elektronik GmbH...

  • Page 38: Plausibility Check During Input

    • Network • • Alarm • Device 38 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 39: General Tab

    Base System is marked as a simulated time (not currently available). Login The Login box is used how described in Chapter 6.2.1 LOGIN and LOGOUT as a User. 7052RC Network Management Server - V01.00 39 / 98 hopf Elektronik GmbH...

  • Page 40: Network Tab

    WebGUI with the new network parameters again and to save the data with Save permanently. 40 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 41: Host/Nameservice

    Contact your network administrator for details of the DNS server if not known. If no DNS server is available (special case), enter 0.0.0.0 in the input field or leave the field blank. 7052RC Network Management Server - V01.00 41 / 98 hopf Elektronik GmbH Nottebohmstr.

  • Page 42: Use Manual Gateway Entries

    (special case), enter :: in the input field or leave the field blank. 42 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 43: Network Interface Eth0/Eth1

    ONFIGURATION NTERFACE 6.3.2.2 Network Interface ETH0/ETH1 Configuration of the Ethernet interface ETH0/ETH1 of the Board 7052RC 6.3.2.2.1 Default Hardware Address (MAC) The factory assigned MAC address can only be read and cannot be changed by the user. It is hopf assigned once-only by Elektronik GmbH for each Ethernet interface.

  • Page 44: Customer Hardware Address (Mac)

    There are no MAC multicast addresses allowed! Finally, the Board 7052RC has to be restarted via "Device" "Reboot Device" (see Chapter 6.3.4.4 Restarting the Board (Reboot Device / Hardware Reset) 6.3.2.2.3 DHCP...

  • Page 45: Operation Mode

    (layer 3 of OSI model), measured in octets which can be transferred into the frame of a net of the security layer (layer 2 of OSI model) without fragmentation. Board 7052RC is going to be delivered with default setting 1356. 7052RC Network Management Server - V01.00...

  • Page 46: Ipv6

    ONFIGURATION NTERFACE 6.3.2.2.8 IPv6 The board 7052RC can also be operated in an IPv6 network. To enable IPv6, Use IPv6 Settings must be set to enable. IPv6 addresses are 128 bits long and they are recorded in eight 4-character hexadecimal blocks.

  • Page 47: Vlan (Activation Key Necessary)

    DHCP or by filling out the boxes "IP-Address" and "Network Mask". To ensure the correct function the network appliance must be connected with Board 7052RC via the network interface. Furthermore it must be en- sured that the network appliance is accurately configured with the same VLANs.

  • Page 48: Network Interface Bonding/Teaming (Activation Key Necessary)

    An incorrect configuration can lead to a loss of the network connection so that the Ethernet access to Board 7052RC is going to be refused. In this case settings of Board 7052RC must be set back to default settings! If function Bonding has been activated, parameters for ETH0 and ETH1 cannot be changed any more.

  • Page 49: Basic Configuration

    A change of the IP-address or activating of DHCP do have an immediate effect after confirming the settings – the connection to the web interface must be adapted and renewed. 7052RC Network Management Server - V01.00 49 / 98 hopf Elektronik GmbH Nottebohmstr.

  • Page 50: Ipv6-Network Configuration

    IPv6 Subnet Prefix Length Input of the IPv6 network length for the "bonding interface". 50 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 51: Advanced Settings

    The network switch on which the network interfaces ETH0 and ETH1 of Board 7052RC are connected also needs to be configured correctly! A wrong configuration can lead to a loss of availability of Board 7052RC! 7052RC Network Management Server - V01.00...
  • Page 52 Only if the network interface is inactive, mode is changed to the second network interface. 52 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 53: Network Interface Prp (Activation Key Necessary)

    SAN (Single Attached Node). If it is necessary to redundantly connect non-PRP-sup- porting applications to the PRP network, a so-called RedBox (Redundancy Box) can be used. Time Server 7052RC supports PRP as DAN and can therefore directly be integrated into a PRP network without using a RedBox.
  • Page 54 - the connection to the web interface must be adapted and renewed. 54 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 55: Ipv6-Netzwerkkonfiguration

    An incorrect configuration can lead to a loss of the network connection which refuses the Ethernet access to Time Server 7052RC. In that case the settings of Time Server 7052RC need to be set to "factory de- fault"! If the functionality PRP was activated, parameters for ETH0 and ETH1 can no longer be adapted.

  • Page 56: Routing

    If IPv6 routes are required, the routes must be made using the settings in Chapter 6.3.2.6 Routing File. 56 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 57: Routing File

    This table shows all active IPv4 and IPv6 routes. For IPv6 routes, the colons of the destination and gateway addresses are not displayed, and the Network Mask column displays the length in hexadecimal 7052RC Network Management Server - V01.00 57 / 98 hopf Elektronik GmbH Nottebohmstr.

  • Page 58: Management-Protocols - Http, Snmp Etc

    Board! 58 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 59: Snmpv2C / Snmpv3

    Right now only one user is supported. 6.3.2.7.2 HMC Management Port By standard the connection between management board (LAN) 7052RC and the remote soft- ware HMC is made via TCP Port 12000. If this value is changed all HMC-connections are interrupted.

  • Page 60: Alarm Tab

    / error / alarm error error / alarm alarm alarm 60 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 61: E-Mail Configuration

    / error / alarm error error / alarm alarm alarm 7052RC Network Management Server - V01.00 61 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 62: Snmp Configuration / Trap Configuration

    SNMP protocol must be enabled in order to use SNMP (see Chapter 6.3.2.7 Management-Protocols – HTTP, SNMP etc.). 62 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 63: Alarm Messages

    A corresponding action is carried out if an event occurs, depending on the messages, their configured levels and the configured notification levels of the E-mails. Modified settings are failsafe stored after Apply and Save only. 7052RC Network Management Server - V01.00 63 / 98 hopf Elektronik GmbH Nottebohmstr.

  • Page 64: External Alarm Messages (Optional)

    ONFIGURATION NTERFACE 6.3.3.5 External Alarm Messages (optional) The Management Board 7052RC optionally provides eight (8) TTL compatible monitoring in- puts within the system that are available for sending alarm messages released by the change of the input signal. Each monitoring input is separately configured: Active: Activation / Deactivation of the monitoring input for release of alarm messages.

  • Page 65: Device Tab

    All information is available exclusively in write-protected and read-only form. Information about the Board type, serial number and current software versions is provided to the user for service and enquiry purposes. 7052RC Network Management Server - V01.00 65 / 98 hopf Elektronik GmbH Nottebohmstr.

  • Page 66: Hardware Information

    The user requires this information in the case of service requests, e.g. MACH version, hard- ware status etc. The settings of the DIP-switch on the Board 7052RC will be shown under the point "Current DIP Switch Settings". 66 / 98 7052RC Network Management Server - V01.00...

  • Page 67: Restoring The Factory Settings - Factory Defaults

    This function serves to restore all values in the flash memory to their default values. This also includes passwords (see Chapter 9 Factory Defaults of Board 7052RC). Please log in as a “Master” user in accordance with the description in Chapter 6.2.1 LOGIN and LOGOUT as a User Press the "Reset now"...

  • Page 68: Restarting The Board (Reboot Device / Hardware Reset)

    ONFIGURATION NTERFACE 6.3.4.4 Restarting the Board (Reboot Device / Hardware Reset) The restart concerns Board 7052RC only. Reboot Device: Restart of the internal Operating System Hardware Reset: Board Reset including all Hardware components All settings not saved with "Save" are lost on Reboot / Hardware Reset (see Chapter 6.2.3 Entry or Changing Data).

  • Page 69: Image Update & H8 Firmware Update

    (update takes approx. 1-1.5 minutes) upgrade_8030gen_v0120.img for the embedded image (update takes approx. 2-3 minutes) 7052RC Network Management Server - V01.00 69 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
  • Page 70 After the image-update the WebGUI displays a window to confirm the restart (reboot) of the board. 70 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 71: Upload Ssl-Server-Certificate

    After a successful storage the "Customized Security Banner" with the saved security infor- mation is displayed in the General-Tab. To delete the "Customized Security Banner" the inserted text must be deleted and saved again. 7052RC Network Management Server - V01.00 71 / 98 hopf Elektronik GmbH...

  • Page 72: Product Activation

    Key Reset. If the feature is enabled again, the last configuration for the optional feature is restored. 72 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 73: Diagnostics Function

    It "status messages" is activated the output is processed as SYSLOG message. This function hopf should only be used/activated in case a problem arises and after consulting the support. 7052RC Network Management Server - V01.00 73 / 98 hopf Elektronik GmbH...

  • Page 74: Passwords (Master/Device)

    A new password must contain at least one uppercase and lowercase letter, one number, and between 6 and 20 characters. 74 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 75: Downloading Configurations / Snmp Mib

    MIB" is also available via the WebGUI in this area. In order to be able to download certain configuration files via the web interface, it is necessary to have logged in as a 'master' user. 7052RC Network Management Server - V01.00 75 / 98 hopf Elektronik GmbH Nottebohmstr.

  • Page 76: Gps

    0-30 poor reception quality 76 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 77: Gps Receiver Position

    Hereby the geographical position of the system is shown. At the first use this function is helpful because you can see if the receiver has already determined the current position. 7052RC Network Management Server - V01.00 77 / 98 hopf Elektronik GmbH Nottebohmstr.

  • Page 78: System

    78 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 79: External Alarms

    Label: Name of the monitoring input. Current Value: Current state of the monitoring input ON / OFF. 7052RC Network Management Server - V01.00 79 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 80: Error Overview

    • Ignored – the error is removed from the common message 80 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
  • Page 81 Mode". Otherwise the Idle error is activated. Example: If a board 7406RC fails which runs in "Monitoring Mode" the Monitoring Error (ERROR-05) will be reported but no Line Error (ERROR-07)! 7052RC Network Management Server - V01.00 81 / 98 hopf Elektronik GmbH Nottebohmstr.

  • Page 82: Ssh And Telnet Basic Configuration

    Only basic configuration is possible via SSH or Telnet. The complete con- figuration of Board 7052RC takes place exclusively via the WebGUI. It is just as easy to use SSH (Port 22) or Telnet (Port 23) as the WebGUI. Both protocols use the same user interface and menu structure.

  • Page 83: Technical Data

    ECHNICAL Technical Data General technical Data of the Board 7052RC. Assembly Model Euro-board 160 x 100 mm Power supply 5V DC  5% via system bus internal system voltage Vpp Environmental Conditions Temperature range: operation: 0°C to +40°C storage: -20°C to +75°C Humidity: max.

  • Page 84: Factory Defaults Of Board 7052Rc

    7052RC ACTORY EFAULTS OF OARD Factory Defaults of Board 7052RC The default delivery status of the Board 7052RC meets the factory default values when using GPS synchronization sources. Host/Name Service Setting WebGUI Hostname Hopf7052RC Hopf7052RC Use Manual DNS Entries Enabled...

  • Page 85: Alarm

    Einstellung WebGUI Real Time Diagnostics Disabled disabled 7052RC Network Management Server - V01.00 85 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 86: Glossary And Abbreviations

    Leap seconds are defined internationally by the International Earth Rotation and Reference Systems Service (IERS). 86 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 87: Abbreviations

    µsec microsecond (10 seconds) parts per million (10 7052RC Network Management Server - V01.00 87 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 88: Definitions

    TCP transport mechanism is used to distribute or deliver data over IP networks. As a simple example: Web browsers use TCP/IP to communicate with web servers. 88 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH...

  • Page 89: Syslog Messages

    LOSSARY AND BBREVIATIONS 10.4 Syslog Messages Description of the Syslog messages of the Board 7052RC configured by the alarm messages. Further Syslog messages generated by the operating system (e.g. NTP, Syslog-Deamon, …) are not described here. Wert Meldung %1, %2...

  • Page 90: List Of Rfc

    SYSLOG (RFC 5424) • SMTP (RFC 5321) 90 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

  • Page 91: List Of Open Source Packages Used

    Third Party Software hopf network TimeServer 7052RC includes a numerous of software packages subject to other license conditions. In case the use of such a software package might violate the li- cence conditions immediately after written notice it is ensured that the underlying licence con- ditions are met again.
  • Page 92 92 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
  • Page 93 1.5.2 host-ncurses Copyright (c) 1998-2010,2011 Free Software Foundation, Inc. 7052RC Network Management Server - V01.00 93 / 98 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
  • Page 94 0.267 i2c-tools 3.1.2 igmpproxy 94 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
  • Page 95 Permission is hereby granted, free of charge, to any per- son obtaining a copy of this software and associated doc- umentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to 7052RC Network Management Server - V01.00 95 / 98 hopf Elektronik GmbH...
  • Page 96 96 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...
  • Page 97 RUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIA- BILITY, OR TORT (INCLUDING NEGLIGENCE OR OTH- ERWISE) ARISING IN ANY WAY OUT OF THE USE OF 7052RC Network Management Server - V01.00 97 / 98 hopf Elektronik GmbH...
  • Page 98 1.2.8 Permissive http://www.gzip.org/zlib/zlib_license.html free soft- ware licence 98 / 98 7052RC Network Management Server - V01.00 hopf Elektronik GmbH Nottebohmstr. 41 • D-58511 Lüdenscheid • Tel.: +49 (0)2351 9386-86 • Fax: +49 (0)2351 9386-93 • Internet: http://www.hopf.com • E-Mail: info@hopf.com...

Table of Contents
